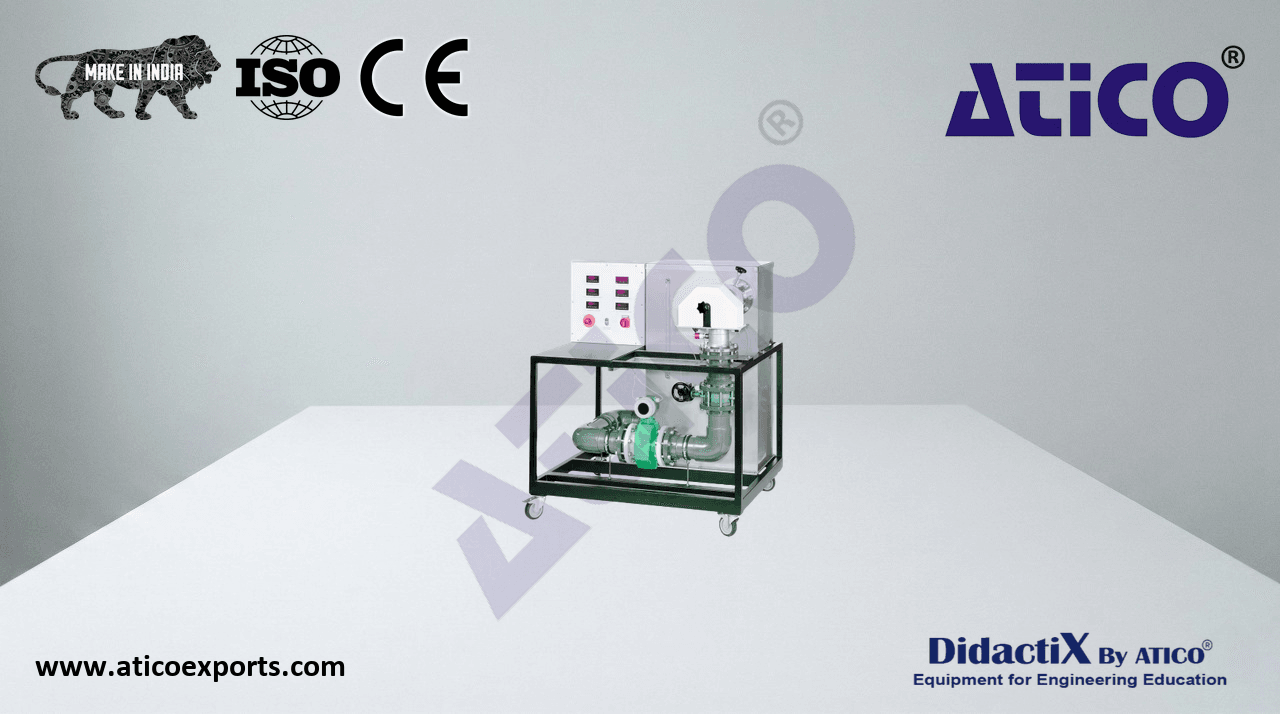

Propeller type turbine trainer

Water turbines are turbomachines which convert water energy into mechanical energy. Mostly, they are used for driving generators for power generation purposes. The propeller type turbine is a reaction turbine with an axial through flow. Learn about Propeller type turbine trainer price for optimal educational outcomes.. It has a high specific speed and is suitable for large water flows and small to medium heads. Therefore, the propeller type turbine is used as a –classic– water turbine in run-of-the-river power plants. Learn about Propeller type turbine trainer Fluid_Machinery1 India for optimal educational outcomes..

• function of a propeller type turbine
• closed water circuit with submersible pump, throttle valve and tank
• adjustment of flow rate with throttle valve
• loading the turbine by use of air-cooled eddy current brake
• rotor with fixed blades
• adjustable guide vanes for setting different angles of attack
• non-contact speed measurement at the turbine shaft and force sensor at the brake for measuring the torque
• digital display for pressures, temperature, flow rate, speed and torque
• network capability: observe, acquire, analyse experiments at any number of workstations with software via the customer–s own LAN/WLAN network
• software via USB under Windows 11
