Protection of drinking water training panel

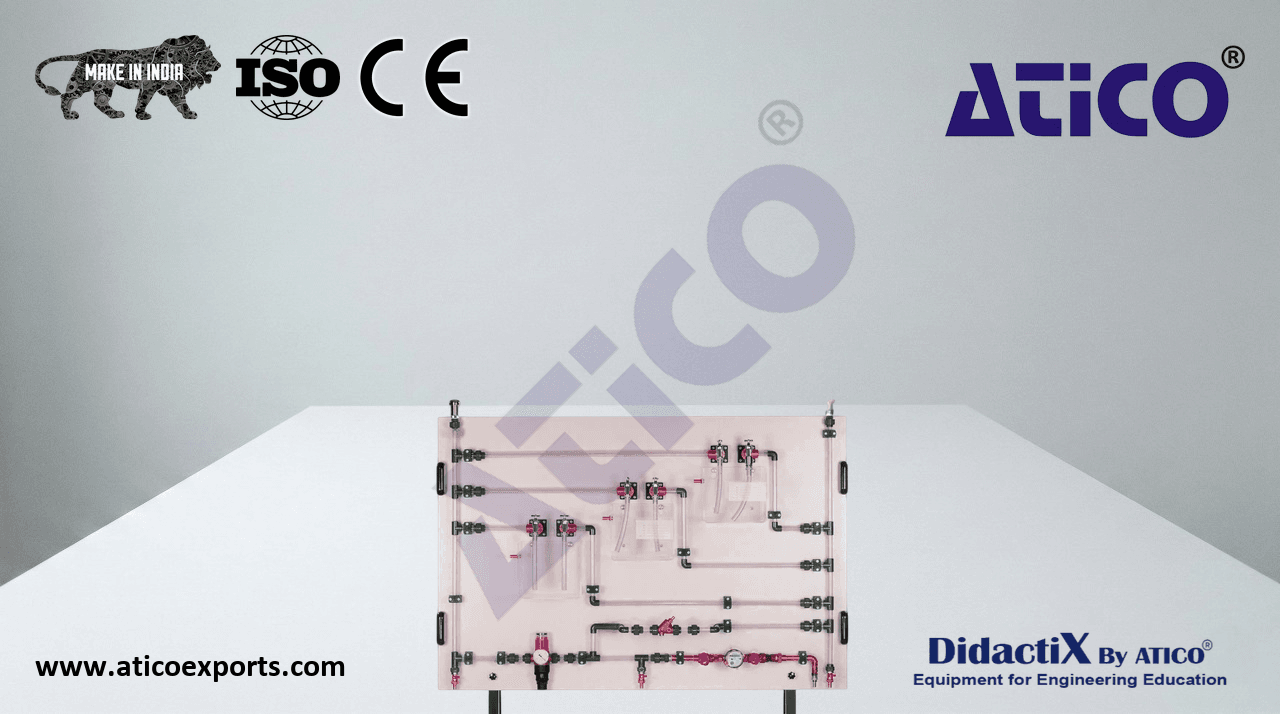

An open pipe system that simulates a domestic installation for drinking water with four different levels is mounted on the panel of the trainer. The levels represent the cellar (drinking water connection level) and three floors. It is possible to simulate a pipe fracture or a pressure drop. Learn about Protection of drinking water training panel specifications for optimal educational outcomes.. During this process the return of contaminated water into the drinking water pipe can be observed.

• Simulation of 3 floors and a cellar of a house
• Devices to prevent the return of contaminated water into the drinking water pipe
• Possible simulations: pipe fracture, pressure drop
• Pipe system made of transparent material
• 2 risers with vent
• 6 outlet valves with hose connections
• 3 transparent water tanks
• Pipe separator, backflow preventer and riser vent as safety devices
• Water meter in feed pipe
