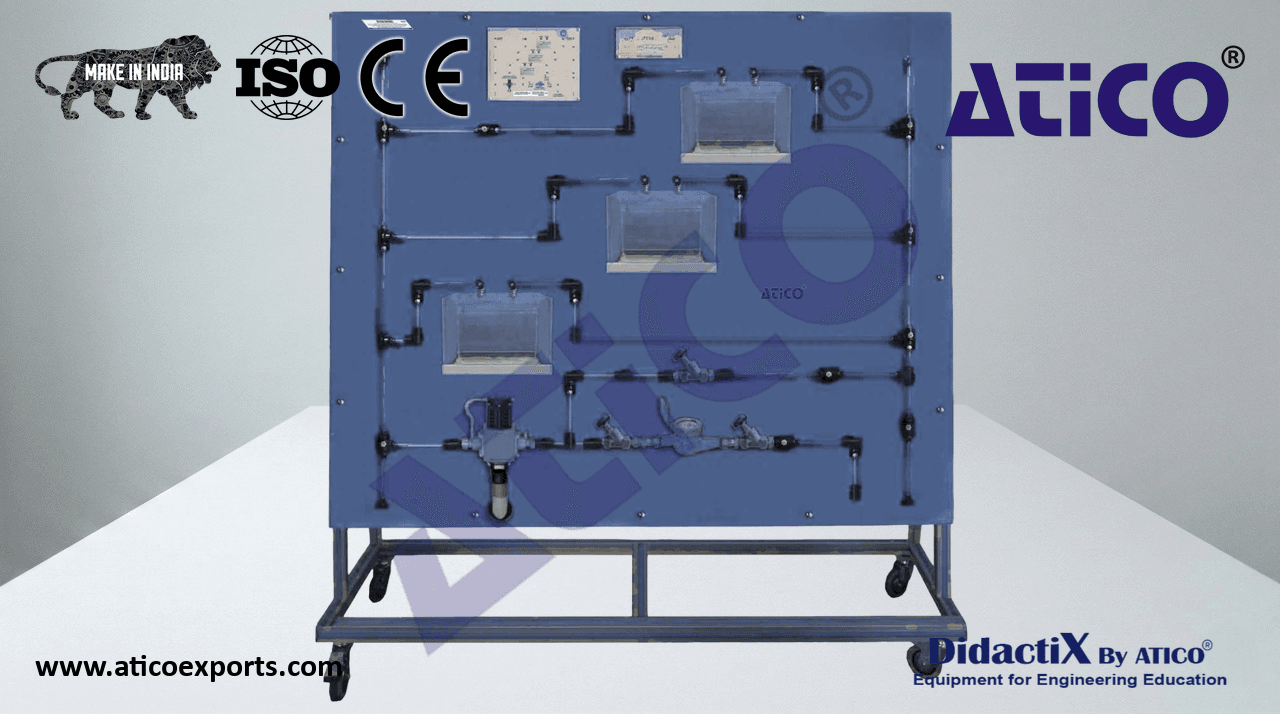

Protection of Drinking Water Training Unit Deluxe

The Protection of Drinking Water Training Unit, to study cases in which the drinking water system is contaminated with wastewater. It is specially designed for the training of students in the plumbing sector.

ATENG 12785 — Protection of Drinking Water Training Unit

Anodized aluminum frame and panels made of painted steel.

Diagram in the front panel with distribution of the elements similar to the real one.

It includes wheels to facilitate its mobility.

Six water outlet with hose connections.

Six valves to regulate the water outlet.

Two drain faucet.

Three tanks made of PMMA with capacity of 7 l.

Industrial meter to measure the flow entering the pipe network.

• Backflow protection devices:
• Pipe separator: Ø = 20 mm.
• Two backflow preventers: Ø = 20 mm.
• Two air riser vents: Ø = 20 mm.
• Pipe vent with backflow preventer: Ø = 20 mm.
• Pipe vent without backflow preventer: Ø = 20 mm.
• Two sealing plugs for the vents: Ø = 20 mm.
• Two transparent pipes of Ø = 20 mm to observe the inside.
