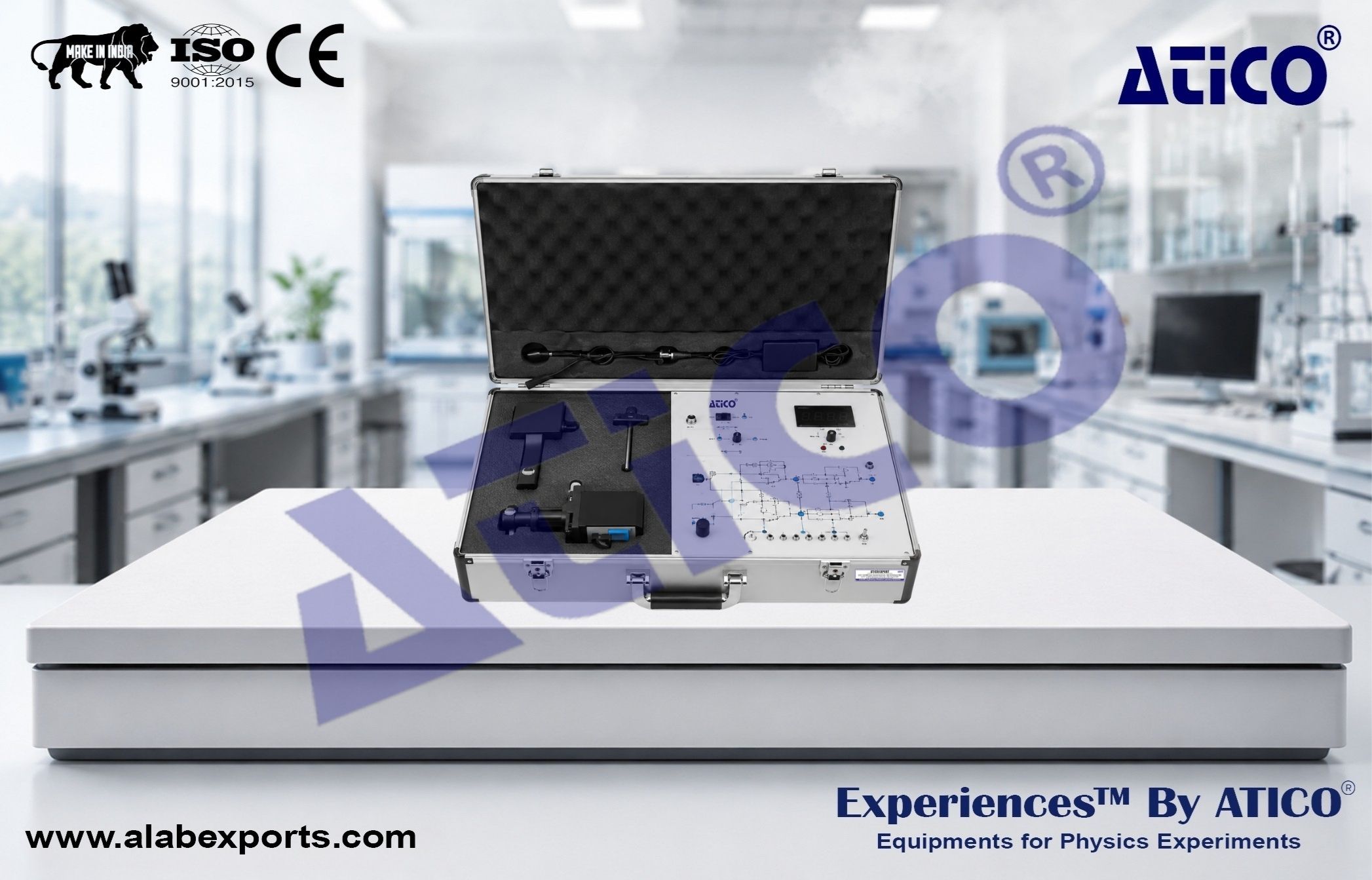

PSD Position Sensing Physics Lab Experiments Setup by ATICO EXPORT

This experiment system is designed for studying the operating principles and characteristics of Position Sensitive Detectors (PSD). PSDs are photoelectric detection devices capable of determining the position of the energy center of a light spot incident on the photosensitive surface. With fast response times and high measurement accuracy, PSDs are widely used in position measurement and optical sensing applications. The system utilizes analog signal processing techniques, including current-to-voltage conversion and operational amplifier circuits, to accurately determine the position of the incident light spot.

Manufactured by Atico Export India.

Experimental Principle and Content

• Study of Position Sensitive Detector (PSD) operating principles
• Measurement of light spot position on the photosensitive surface
• Investigation of photoelectric position sensing techniques
• Analysis of sensor output characteristics and position relationships
• Study of current-to-voltage conversion methods
• Understanding analog signal processing using operational amplifiers
• Evaluation of PSD response performance in optical measurement applications
• Development of practical skills in photoelectric position detection

Host :

• Main Chassis Size: 520 mm × 318 mm × 145 mm

Light Source :

• 650 nm Semiconductor Laser with Linear Drive

One-Dimensional PSD :

• Photosensitive Area: 1 mm × 5 mm
• Spectral Range: 380–1100 nm
• Dark Current: 10 mA

Voltmeter :

• Accuracy: 0.2%
• Four Selectable Ranges: 200 mV, 2 V, 20 V, 200 V

2D Base :

• X-Axis Translation: 10 mm
• Z-Axis Lift: 30 mm

Lifting Base :

• Z-Axis Lift: 30 mm
