Pump characteristics for parallel and series configuration

In practice, several pumps are often installed either in parallel or in series configuration for economic reasons. In parallel configuration the pumps operate in a common pipe. This requires that the pumps used in each case can achieve the same head. Learn about Pump characteristics for parallel and series configuration manufacturers for optimal educational outcomes.. Parallel configurations offer the advantage that when demand is low only one pump works and other pumps are switched on as the flow rate increases. In series configuration pumps with equal flow rates are arranged in a row. Learn about Pump characteristics for parallel and series configuration exporters for optimal educational outcomes.. This arrangement allows the bridging of large heads and is often more cost-effective than the use of a single pump with large head.

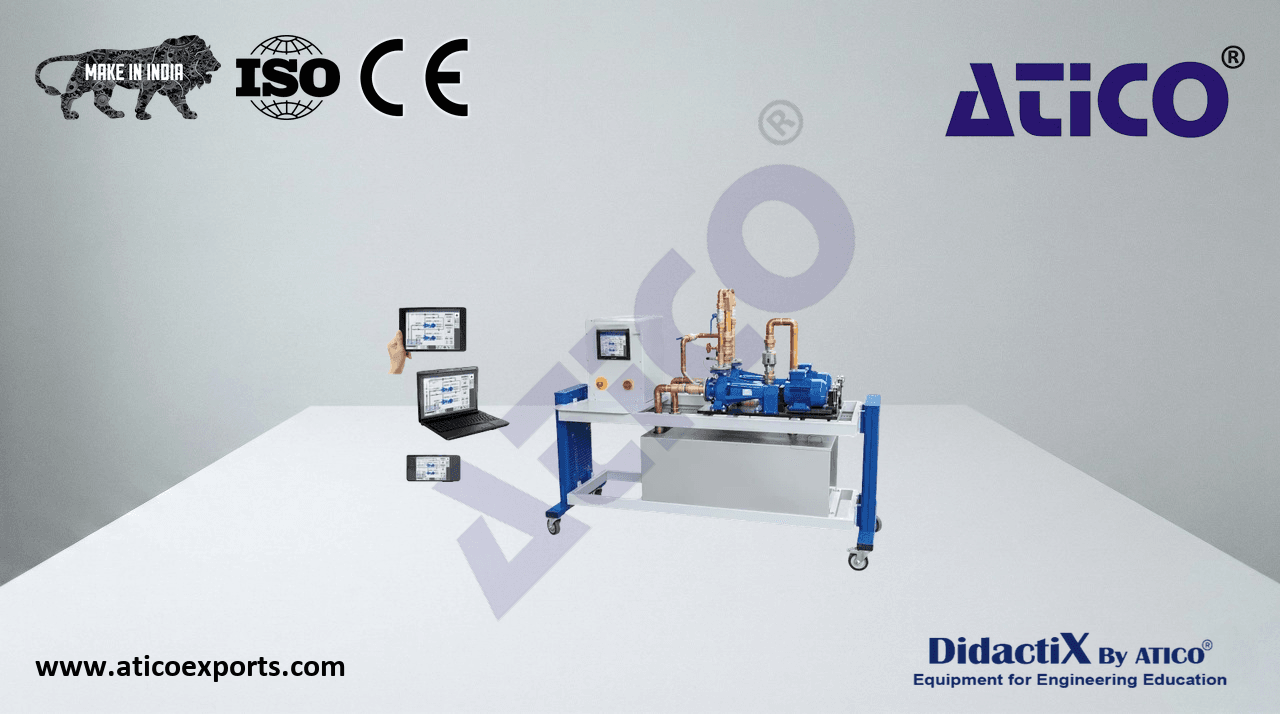

• trainer with 2 centrifugal pumps which are operated in series or parallel configuration
• plant control with PLC, operation via touch screen
• integrated router for operation and control via an end device and for screen mirroring: possible to mirror the user interface on up to 10 end devices
• closed water circuit
• drive motors with adjustable speed
• motor with pendulum bearing, torque measurement via lever arm and force sensor
• inductive speed sensor on the motor
• electromagnetic flow meter
• data acquisition via PLC on internal USB memory, access to stored measured values via WLAN/LAN with integrated router/LAN connection to customer–s own network or direct LAN connection without customer network
