Pumps Alignment and Study Bench

The Pumps Alignment and Study Bench, to provide practical training in the assembly, alignment, and operation of different types of pumps. It allows users to study key procedures such as coupling alignment through various methods, flow and pressure monitoring, and performance evaluation under controlled conditions.

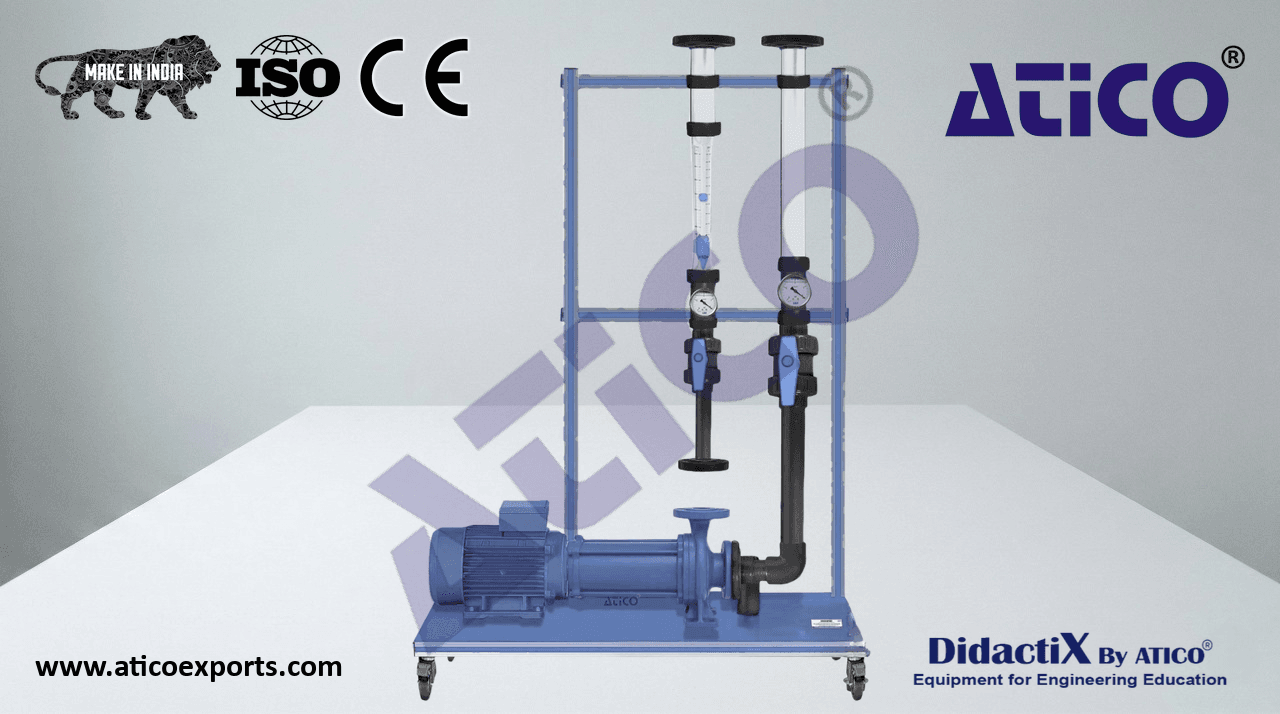

ATENG 11840 — Pumps Alignment and Study Bench

Anodized aluminum frame and panels made of painted steel.

The unit includes wheels to facilitate its mobility.

Diagram in the front panel with distribution of the elements similar to the real one.

Conventional pump alignment system.

Electrical control panel with digital display for speed and power monitoring.

Frame equipped with height-adjustable leveling feet for maximum stability.

• Electronic console:
  Metal box.
  Motor connector.
  Motor speed controller.
  Digital display for the motor speed.
  Main switch.
  Cables and accessories, for normal operation.
