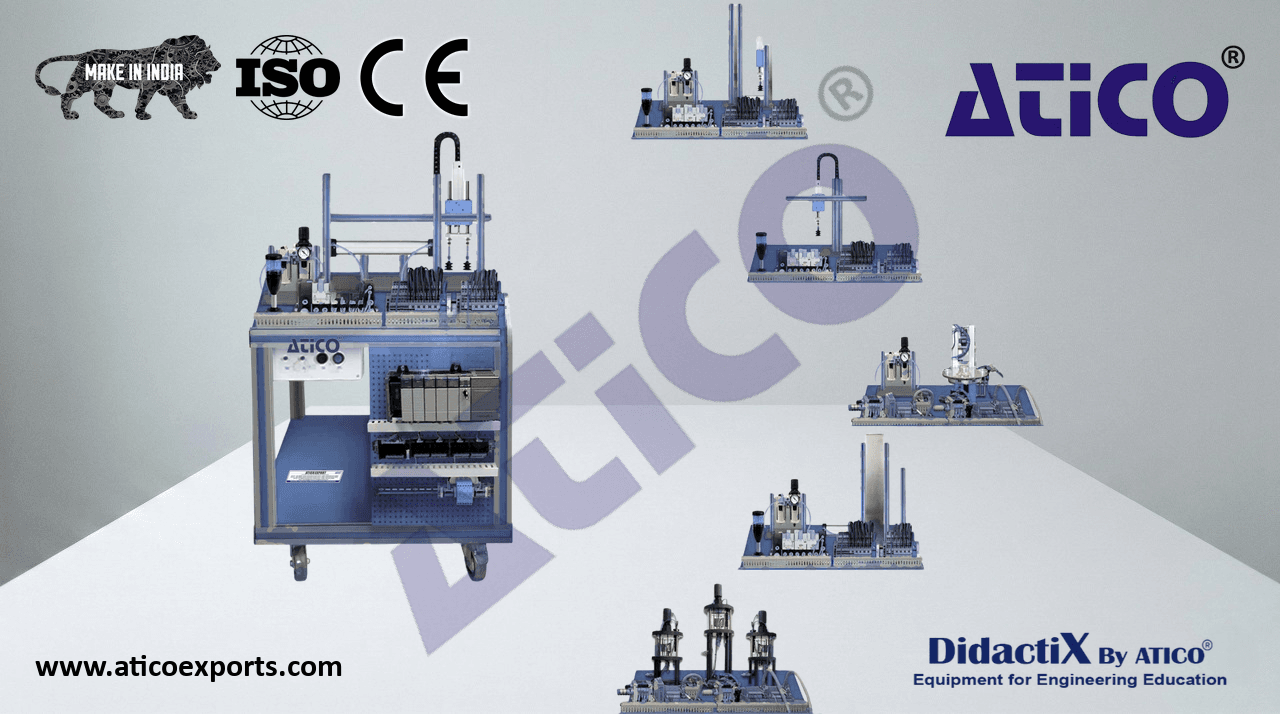

Quality Control Workstation

The Quality Control Workstation with Vision System, to study how manage a quality control system using a color camera. The includes industrial components to conform the system such as PLCs, pneumatic components, industrial sensors, etc.

ATENG 12587 — Quality Control Workstation

• The “ATENG 12587” includes:
  Table with four wheels with brakes mounted with aluminum profiles.
• 10 pieces made of aluminum and plastic:
  5 pieces with hole.
  5 pieces without hole.
  Unit wired and programmed for the correct operation of the system.
• Light stack to indicate the state of the workstation:
  Green, yellow and red led lights.
  360º visualization.
  Non-colored lens to avoid wrong interpretation with the lights turned off.
  Electrical terminal block to connect the individually identified inputs, outputs and power signals of the unit.
• Control panel:
  Differential magneto-thermal switch.
  Emergency pushbutton.
  Start/Stop switch.
  Light indicator to show the state of the workstation
  Reset push-button.
  Manual/automatic switch.
  Next step push-button.
  2 Ethernet/IP RJ45 connectors.
  Power switch.
• Power supply of 24 VDC.
• Air treatment unit:
  Filter-regulator and water trap.
  Manometer with double scale indicator.
  Shut-off valve.
  Purge valve.
• Sensors:
  Industrial camera for production inspection
  4 IR beam detectors.
• Fault generation module:
  Box with lock with key.
  Allows to generate 20 different faults.
  Each fault is generated through toggle switches.
  AE-PLC. PLC trainer (Optional).
  Available PLC models of different manufacturers.
• The AE-PLC include all required components to start to work with the PLC:
  Electrical power supply.
  PLC CPU with the digital input and output signals.
  PLC programming software.
  There are available several optional kits to configure a complete PLC system.
  ATENG 12395. Silent Air Compressor Unit (Optional).
  Noiseless air compressor.
• Capacity of the boiler: 9 l.
• Power: 340 W.
• Air intake: 50 l./min.
• Maximum pressure: 8 bar.
• Low noise level: 40 dB maximum.
  Designed to be located under the bench.
  Cables and accessories for a correct operation.
