Quantum Analogs upper level physics experiments

The Quantum Analogs Experiment System is designed for advanced physics laboratories to demonstrate the principles of quantum mechanics through acoustic wave experiments. By using sound waves in tubes, cylinders, and spherical resonators, students can model quantum systems such as the particle in a box, hydrogen atom, hydrogen molecule, and semiconductor structures. The apparatus provides a practical and intuitive approach to understanding wave mechanics, standing waves, energy states, and quantum phenomena. Physics Lab Experiments from Atico Exports.

• Wave mechanics demonstrations
• Quantum mechanics education
• Particle in a box model
• Hydrogen atom simulation
• Hydrogen molecule simulation
• Semiconductor band structure studies
• Standing wave analysis
• Acoustic resonance experiments
• Quantum state visualization
• Advanced physics laboratory instruction

Instrument Components :

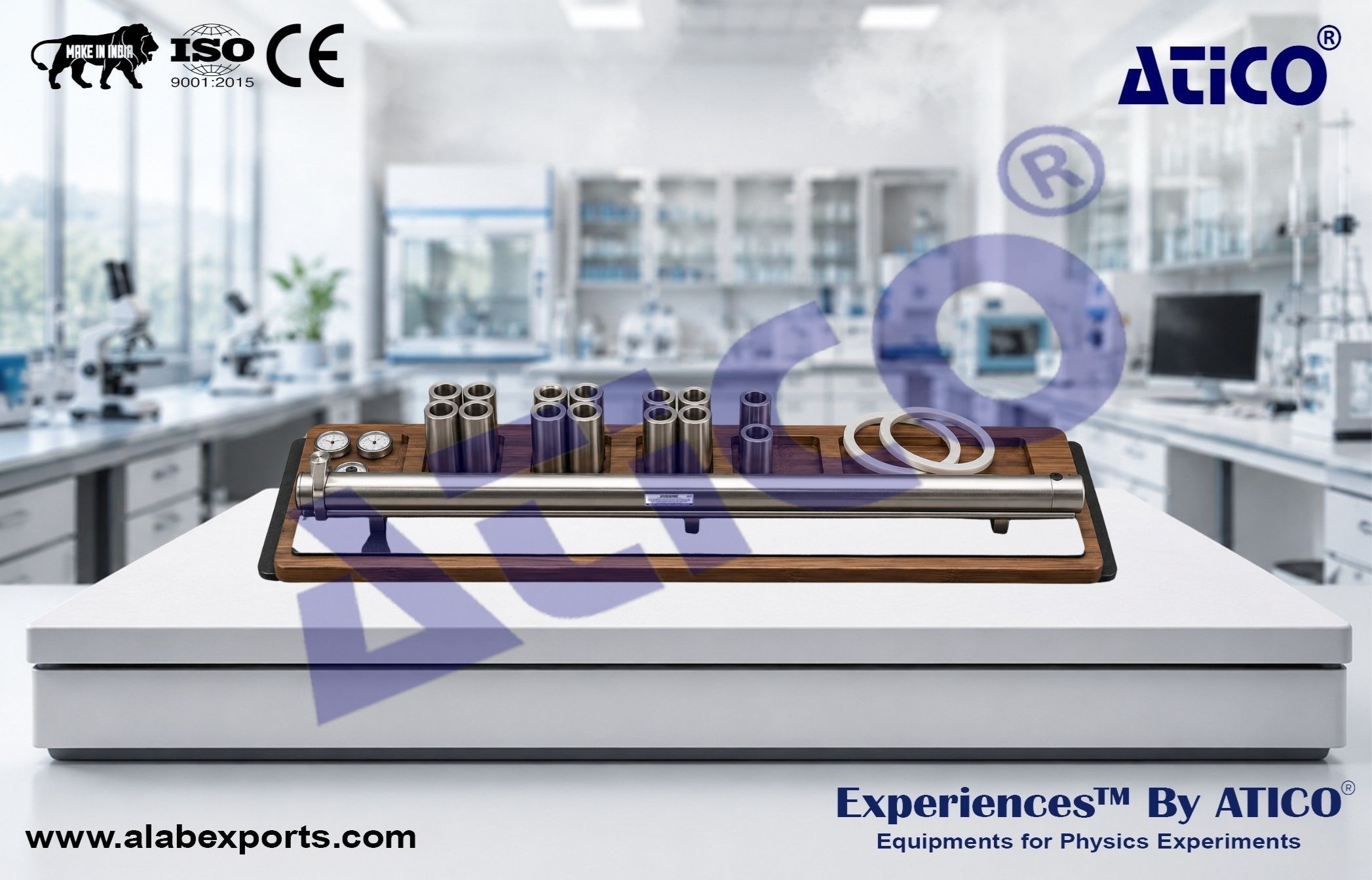

• Linear array assembly
• Aluminum cylinders of multiple lengths
• Interchangeable iris sets
• V-groove mounting base
• Spherical resonator assembly
• Aluminum hemispheres
• Spacer rings
• Integrated speaker
• Microphones
• Controller unit
• AC amplifier
• Attenuator
• Envelope detector
• Frequency-to-voltage converter
• DC offset control
• Signal input and output interfaces

Experiments :

Standing Wave Experiments

• Standing sound waves in a tube
• Particle in a box analogy
• Resonance frequency measurements
• Wave function analysis

Hydrogen Atom Model

• Spherical resonator studies
• Resonance measurements
• Quantum number determination
• Wave function visualization

Hydrogen Molecule Model

• Broken symmetry studies
• Degeneracy lifting
• Molecular bonding and antibonding states
• Influence of iris diameter on molecular states

One-Dimensional Solid Model

• Periodic potential simulations
• Atom-to-molecule transition
• Chain structure analysis
• Superstructure investigations
• Unit cell studies
• Defect state analysis

Signal Analysis

• Oscilloscope-based spectrum measurement
• Computer-based spectrum analysis
• Spectral comparison
• Frequency response analysis

Educational Objectives :

• Understand the relationship between acoustic waves and quantum mechanics
• Study standing wave phenomena
• Explore the particle in a box model
• Model hydrogen atom and hydrogen molecule behavior
• Investigate semiconductor band structures
• Analyze resonance frequencies and wave functions
• Understand defect states in periodic structures
• Develop practical skills in acoustic measurements
• Perform spectral analysis using oscilloscopes and computers
• Gain hands-on experience with wave mechanics and quantum analog experiments

• Acoustic analogs of quantum mechanical systems
• One-dimensional and three-dimensional experiments
• Precisely machined aluminum cylinders and hemispheres
• Interchangeable iris assemblies
• Modular experimental setup
• Integrated controller for speakers and microphones
• High-gain signal amplification
• Envelope detection system
• Frequency-to-voltage conversion
• Computer and oscilloscope compatibility
• Software for spectral comparison and analysis
• Supports simultaneous display of multiple spectra
• Ideal for undergraduate and postgraduate laboratories
