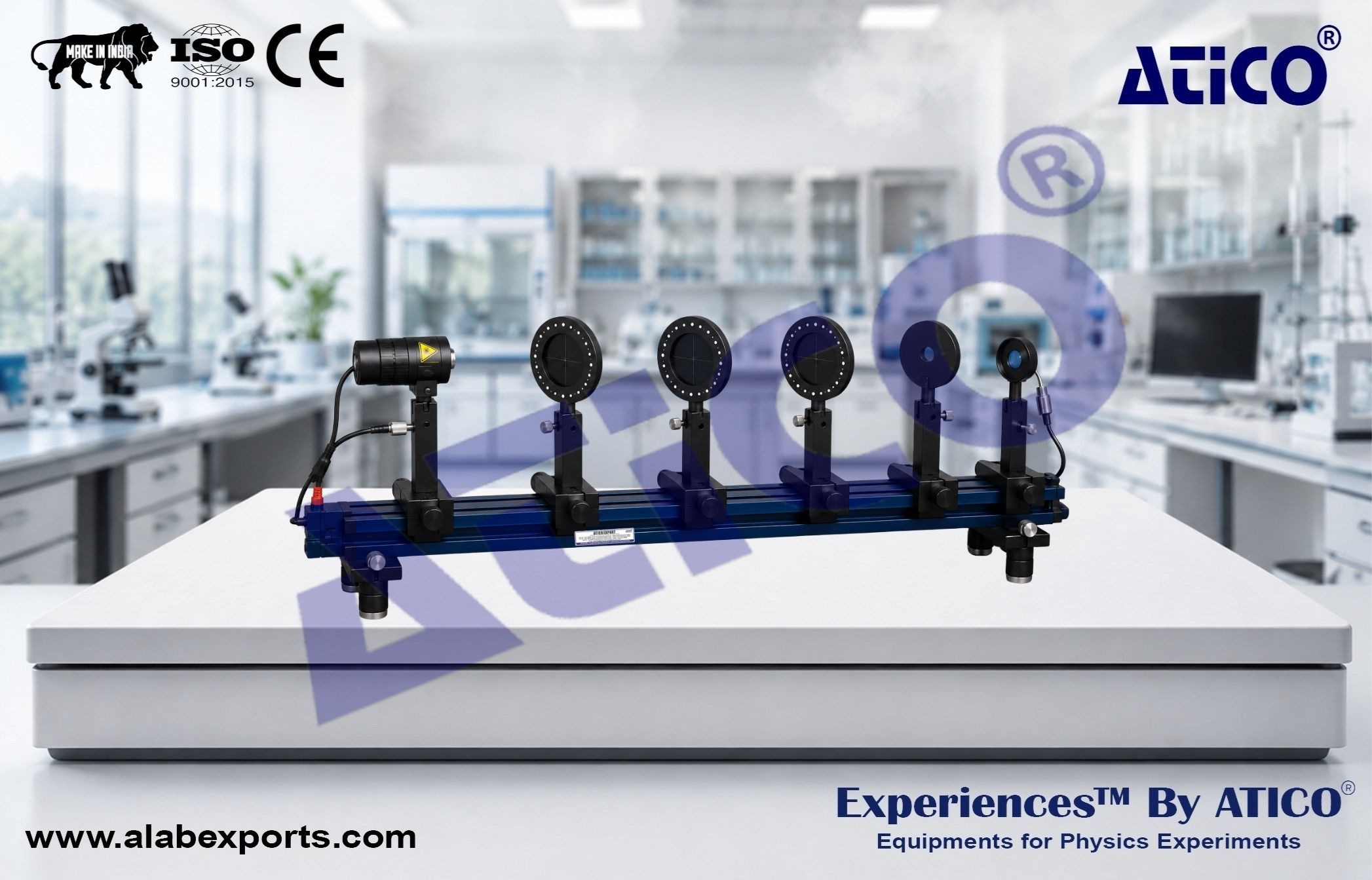

Quarter and Half Wave Plate Experiment Complete Set Up

The Wave Plates Experiment is designed to study the effect of quarter-wave and half-wave plates on polarized light. The experiment demonstrates how wave plates introduce a phase difference between two orthogonal polarization components, thereby altering the state of polarization of light. It enables students to understand the conversion between linear, circular, and elliptical polarization, as well as the rotation of the plane of polarization. Manufactured by Atico Export India.

Principle

Wave plates are optical devices that split a light wave into two orthogonal linear polarization components by introducing a phase difference between them. This phase shift changes the polarization state of the transmitted light. A quarter-wave plate converts linearly polarized light into circular or elliptical polarized light and vice versa, while a half-wave plate rotates the plane of polarization of linearly polarized light by twice the angle between its optical axis and the initial polarization direction.

Objectives

• Study the effect of wave plates on polarized light.
• Investigate the characteristics of a quarter-wave plate.
• Investigate the characteristics of a half-wave plate.
• Understand the conversion between different states of polarization.
• Observe the rotation of the plane of polarization using a half-wave plate.

• Study of polarized light.
• Demonstration of quarter-wave and half-wave plate characteristics.
• Polarization analysis experiments.
• Optical physics laboratory experiments.

Precise Optical Alignment :

• Optical bench provides accurate alignment of all optical components.
• Reduces setup time and simplifies experimentation.

Digital Lux Meter :

• Measures light intensity at different angles.
• Reading resolution of 1 lux for accurate intensity measurement.

Easy and Accurate Adjustments :

• Wave plates can be rotated smoothly without obstructing the light path.
• Least count of 1° ensures precise angular measurements.
