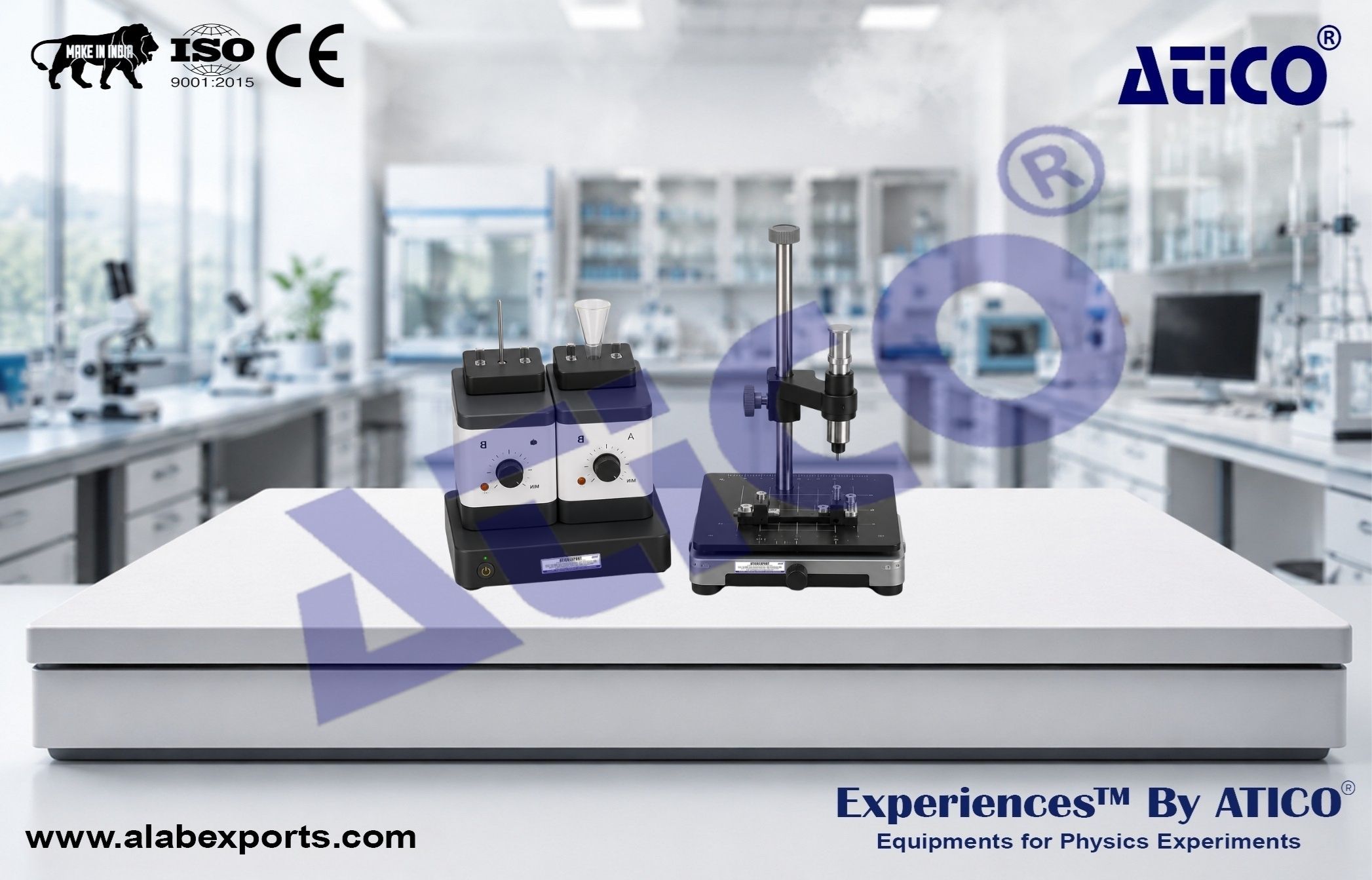

Quincke's Tube Experiment Set Up

The Quincke's Method Apparatus is designed to measure the magnetic susceptibility of a given paramagnetic sample, such as FeCl₃. The apparatus demonstrates the magnetic behavior of paramagnetic and diamagnetic substances by observing the change in liquid level within a Quincke's tube when subjected to a magnetic field. It provides an effective experimental setup for studying magnetic susceptibility in physics laboratories. Manufactured by Atico Export India.

Principle

Quincke's Method is used to determine the magnetic susceptibility of diamagnetic or paramagnetic substances in the form of liquids or aqueous solutions. When a substance is placed in a magnetic field, a magnetic moment is induced. Magnetic susceptibility (χ) is the ratio of magnetization (I) to the applied magnetic field intensity (H). The magnetic moment can be determined by measuring the force exerted on the sample in an inhomogeneous magnetic field or by measuring the induced voltage generated due to changes in the magnetic moment.

Objectives

• Measure the magnetic susceptibility of a given paramagnetic sample (FeCl₃).
• Study the magnetic properties of paramagnetic and diamagnetic substances.
• Determine the relationship between magnetization and the applied magnetic field.
• Understand the principles of magnetic susceptibility using Quincke's Method.
  Equipment Required

Electromagnet :

• Electromagnet for Quincke's Tube.

Quincke's Tube :

• Specially designed tube for magnetic susceptibility measurements.

Power Supply :

• Power supply for the electromagnet.

Teslameter :

• Digital teslameter for magnetic field measurement.

Vernier Microscope :

• Used for precise observation and measurement of liquid level changes.

Compact Setup :

• Compact and user-friendly design for convenient experimentation.
• Simple electrical connections for easy operation.
• Probe stand provided for secure placement of the teslameter probe.

Custom Quincke's Tube :

• Specially designed Quincke's tube for seamless installation.
• Precisely manufactured dimensions ensure accurate positioning between the electromagnet pole pieces.
