Radial Pressure Distribution in a Journal Bearing Deluxe

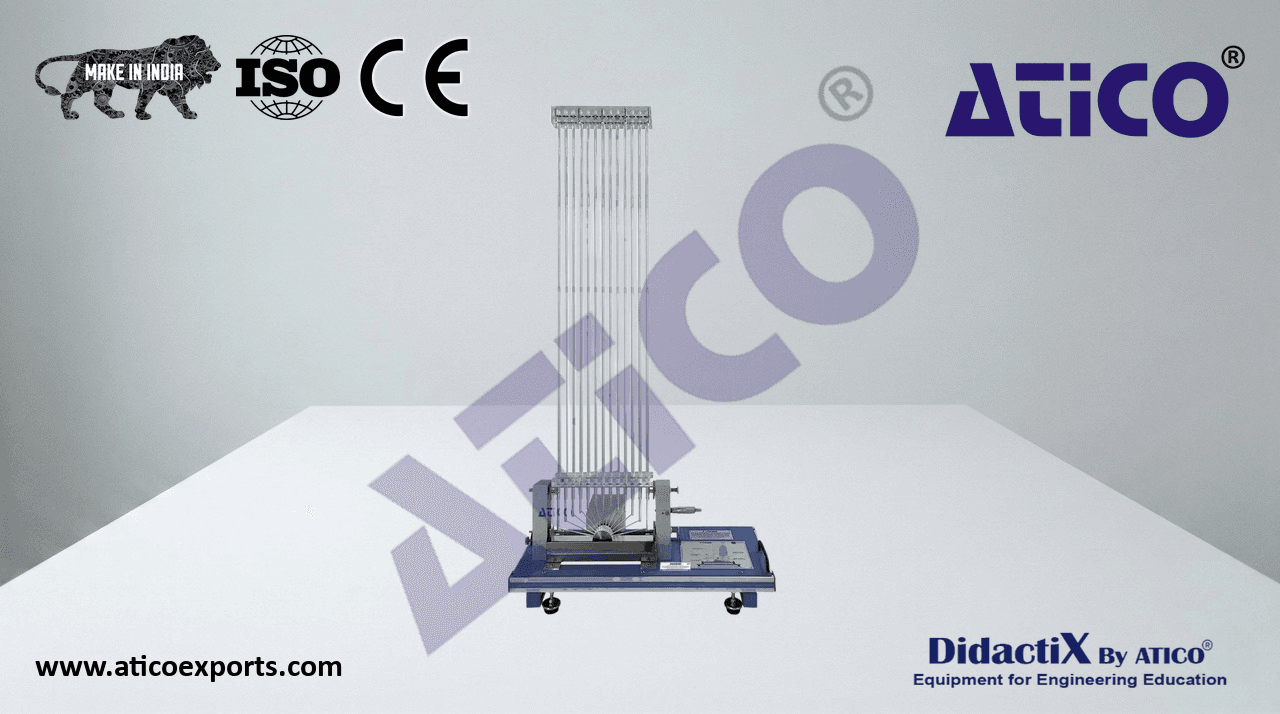

This unit allows the visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.

ATENG 12136 — Radial Pressure Distribution in a Journal Bearing

ATENG 12134. Drive Unit for Tribological Tests.

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• The drive unit consists of:
• DC motor, electronically controlled:
• Speed range: 0 – 3000 rpm.
• Operating speed: 0 – 250 rpm.
• Torque: 19 Nm approx.
• Worm gear: i=14.66.
• Electronic console:
  Force sensor connection.
  ATENG 12134 detail
  ON/OFF controller for the motor.
  Motor speed controller.
  Selector of the direction of rotation of the motor.
  Digital display for the motor speed.
  Digital display for the force sensor.
  Cables and accessories, for normal operation.
