ATENG 12727 — Radiators Training Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.

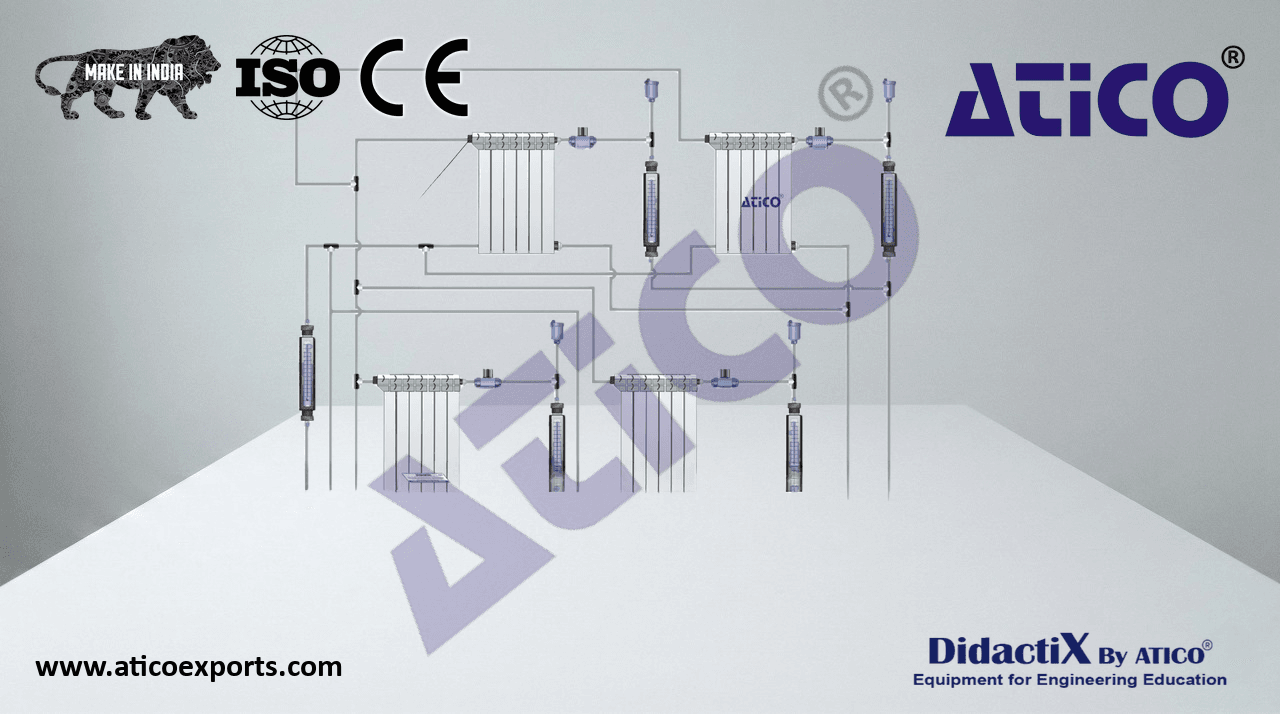

Diagram in the front panel with distribution of the elements similar to the real one.
- Heating system:
- Four radiators:
Heat exchanger with 10 plates.
- Each radiator includes:
Thermostatic valve to control the temperature of the radiators.
Bleed valve to purge air from the system.
Lockshield valve.
Four automatic air vents.
- Five rotameters:
Four of them with a range of 30 – 300 l/h.
One of them with a range of 50 – 1000 l/h.
- Four water connections:
Two DN 15 cold water connections with ball valves and quick-release fittings.
Two DN 15 boiler water connections with gate valves (regulating valves) with quick-release fittings.
