Reaction turbine

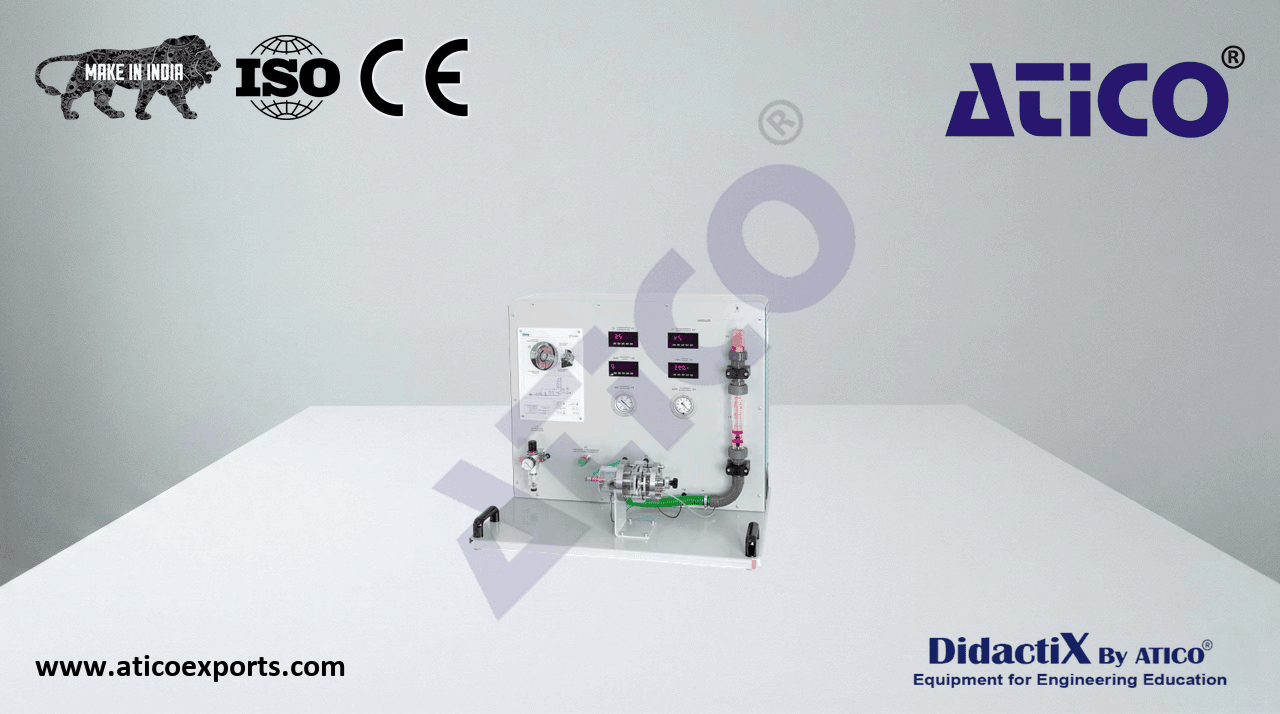

In reaction turbines, the static pressure of the working medium in front of the rotor is higher than that behind it. In pure reaction turbines with a degree of reaction of one, the entire pressure energy in the rotor is converted to kinetic energy. This compressed-air driven experimental unit can be used to understand turbines powered by steam or water. Learn about Reaction turbine equipment for optimal educational outcomes..

• investigation of a compressed air driven radial reaction turbine
• transparent housing for observing the operating area
• rotor with 4 outlet nozzles
• application of load to the turbine by means of a wear-free eddy current brake
• setting of the primary pressure with the pressure reducing valve
• valve and flow meter for setting the flow
• solenoid valve as a safety device to prevent overspeed
• determination of the torque on the turbine shaft using a force sensor
• measurement of the turbine speed with an optical speed sensor
• manometer for displaying the pressure on the inlet and outlet side
• digital display of speed, torque and temperature
