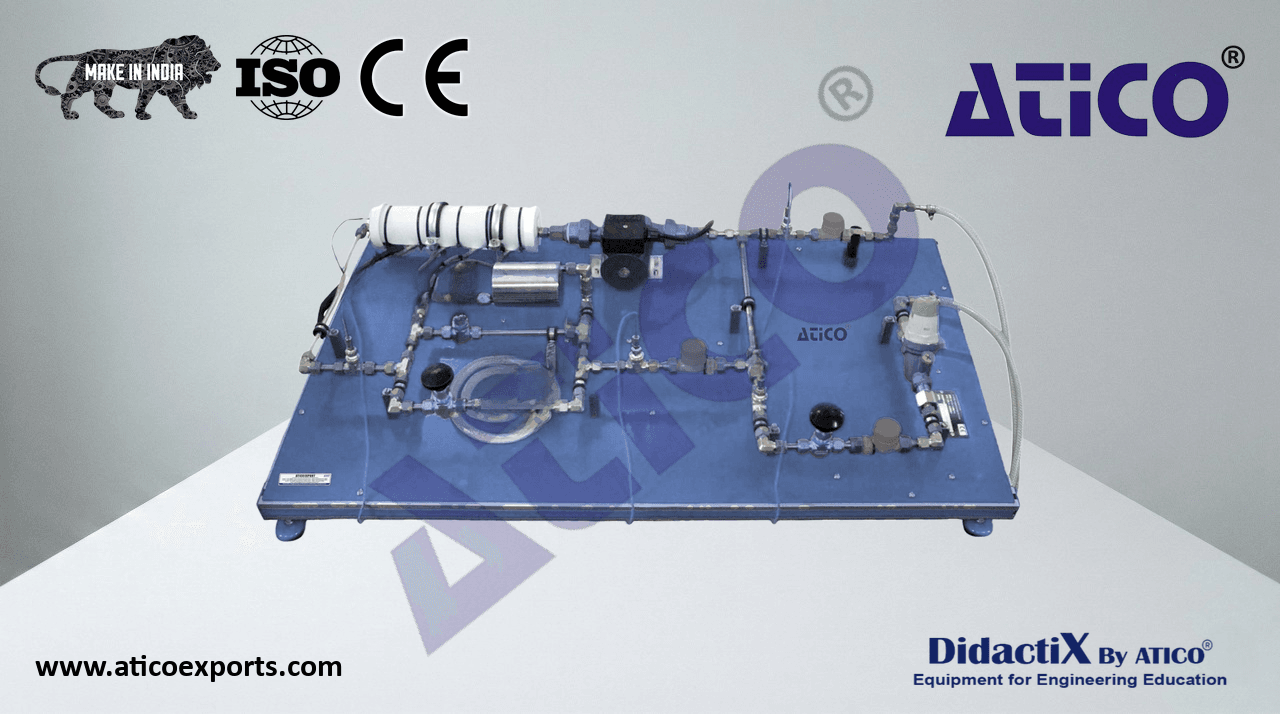

ATENG 12692 — Recycle Loops Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Water inlet tube, including:
Temperature sensor type “J”.
Flow meter.
- Valve to regulate the water inlet flow to the circuit (0 - 3 bars) to avoid overpressures
along the circuit.
Regulation valve.
Recycle loop, where the water that flows through the periphery of the test tube is heated.
- It consits of:
ATENG 12692 detail
Hot water impulsion pump.
Heating element of 2000 W. It includes a protection thermostat.
Three water regulation valves to select the recycle loop and regulate the water flow.
- Three different volumes of recycle loop: additional volume, rigid pipe and flexible pipe.
Two temperature sensor type “J”.
Flow meter.
- Water outlet pipe, including:
Temperature sensor type “J”.
Flow meter.
- Electronic console:
Metallic box.
Temperature sensors connections.
Digital display for temperature sensors.
Selector for temperature sensors.
Pump regulator.
Electrical heating element controller.
Cables and accessories, for normal operation.
