REDUNDANT TRUSS

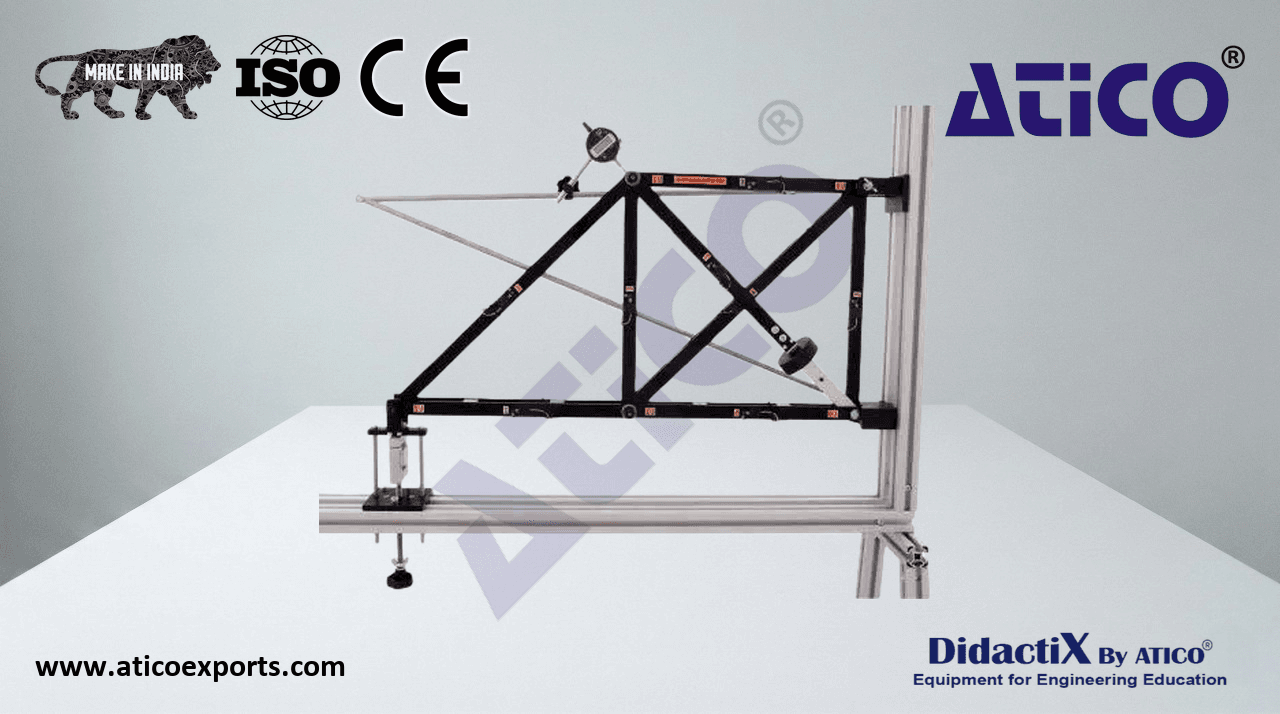

A 45° two-bay truss consisting of seven members with pinned joints, cantilevered from a universal frame and stand (sold separately) via an upper springing and a lower roller bearing on a vertical track. An extra diagonal member with adjustable length makes the first bay of the truss statically redundant. Each truss member incorporates a strain gauge bridge for direct measurement of strain. Learn about REDUNDANT TRUSS manufacturers for optimal educational outcomes.. Load is applied via a screw jack mechanism with integral load cell. Strain and force signals feed directly into a digital interface (sold separately). Learn about REDUNDANT TRUSS exporters for optimal educational outcomes.. A dial gauge measures joint deflections.

• Member centres: 400 mm (vertical and horizontal)
• Member section: 25 (H) × 10 (W) mm acrylic
• Loading Mechanism: 0–500 N
• Digital Dial Gauge: 12.7 mm travel; 0.01 mm resolution
• Gauging type: Half bridge strain gauging
• Dial gauge anvil: Ø10 mm flat
