Redundant Truss (Next Generation Structures)

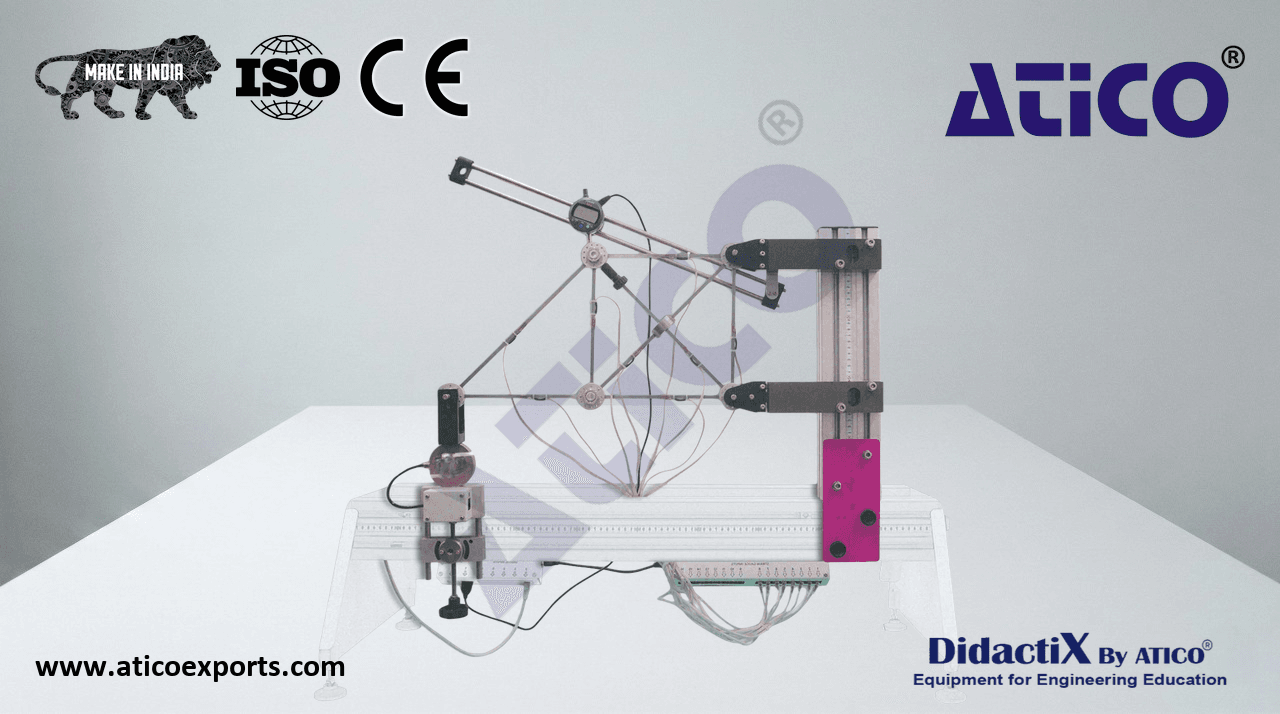

Experiment for the study of determinate and indeterminate truss structures. Mounts on the Structures platform and connects to the Structures automatic data acquisition unit and software.

One of a range of experiment modules that fit to the Structures platform (available separately), this product helps students to understand the analysis of statically determinate and indeterminate truss structures made from a number of 'members' held together by joints at their ends. Two supports hold the truss. One support allows rotation only and the other allows rotation and translation. Learn about Redundant Truss (Next Generation Structures) exporters for optimal educational outcomes.. Students apply a load to the truss at the free end Joint Boss. Strain gauges on each truss member measure the forces due to the load. Learn about Redundant Truss (Next Generation Structures) price for optimal educational outcomes.. A precision indicator measures the framework deflection due to the load. A hand-operated load cell assembly applies and measures the load. Learn about Redundant Truss (Next Generation Structures) next-generation-structures India for optimal educational outcomes.. A simple thumbscrew engages and disengages an extra 'redundant' member. Students apply loads to the truss initially without the extra 'redundant' member engaged. Learn about Redundant Truss (Next Generation Structures) specifications for optimal educational outcomes.. This frame is stable and statically determinate (can be solved by static equilibrium). They then engage an extra 'redundant' member, making the frame statically indeterminate, requiring a more advanced analysis such as the strain-energy method. Learn about Precision Redundant Truss (Next Generation Structures) for optimal educational outcomes.. Students may measure the deflection of the frame for both cases and compare. Students use textbook equations and methods to predict the forces in each 'member', comparing them with the measured results. Learn about Redundant Truss (Next Generation Structures) manufacturers for optimal educational outcomes.. This helps confirm the reliability of the textbook equations and the accuracy of the experiment results. The strain gauges connect to a strain gauge amplifier, which connects (with the load cell) to the interface hub of the Structures platform for computer display and data acquisition. Learn about Redundant Truss (Next Generation Structures) suppliers for optimal educational outcomes..
