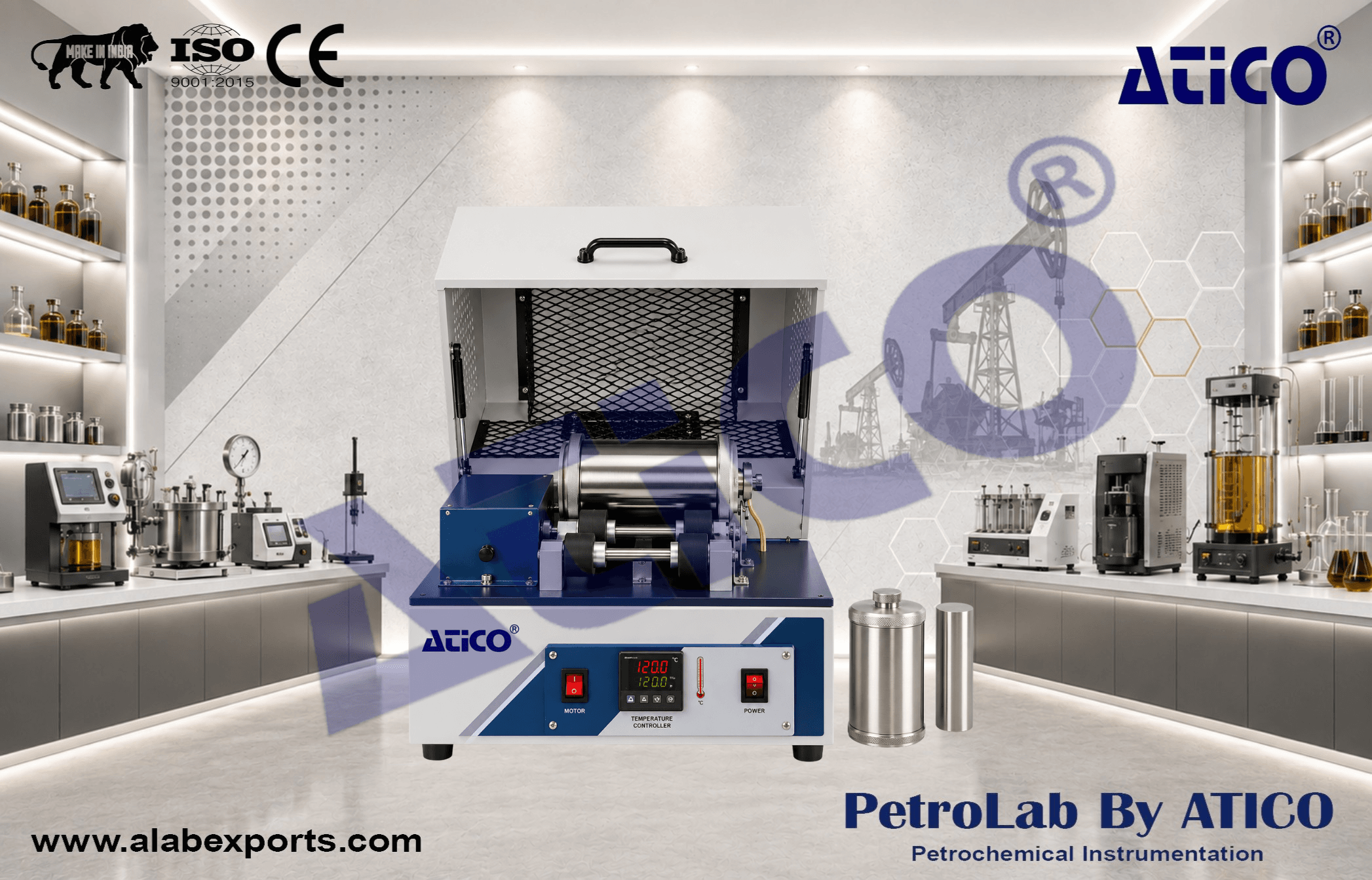

Reid Vapor Pressure Bath for Fuel Testing Instrument

The Reid Vapor Pressure Test Apparatus is designed to determine the vapor pressure of volatile petroleum products, gasoline, crude oil, and liquefied petroleum gas (LPG). Vapor pressure is an important property affecting fuel handling, storage, performance, and emissions compliance.

The system includes vapor pressure test cylinders, constant-temperature water baths, and optional wireless pressure data acquisition equipment. The test cylinders feature upper and lower chambers in a 4:1 volume ratio, with O-ring seals to provide a secure connection. One-opening cylinders are suitable for gasoline and products with a Reid vapor pressure below 26 psi (180 kPa), while two-opening cylinders are used for higher-vapor-pressure products and LPG testing.

The water baths maintain the test cylinders at the specified immersion depth and provide precise temperature control. Available configurations include 4/6-unit baths for benchtop or flush-mounted installation and a 21-unit bath with automatic water-level control. Optional wireless data acquisition software monitors pressure, graphs test results in real time, and exports data to Microsoft Excel.

Manufactured by Atico Export for reliable vapor pressure testing in petroleum, fuel, and LPG testing laboratories.

• Reid vapor pressure determination of gasoline
• Vapor pressure testing of volatile petroleum products
• Vapor pressure testing of crude oil
• LPG vapor pressure measurement
• Fuel quality control and emissions-related testing
• Petroleum laboratory testing in accordance with ASTM methods

A. Reid Vapor Pressure Test Cylinders

Construction :

• Polished stainless steel
• Upper and lower chambers in a 4:1 volume ratio
• O-ring seals between chambers and at the gauge coupling
• Threaded 1/4-inch gauge coupling

Available Types :

• One-opening type for gasoline and products with Reid vapor pressure below 26 psi (180 kPa)
• Two-opening type for products with Reid vapor pressure above 26 psi and LPG testing

Hydrostatic Test Pressure :

• One-opening type: 400 psi (2758 kPa)
• Two-opening type: 1000 psi (6894 kPa) gauge

Two-Opening Cylinder Valves :

• Straight-through ball valve
• 1/4-inch needle valve

B. 4/6-Unit Reid Vapor Pressure Bath

Capacity :

• Accommodates 1 to 4 vapor pressure apparatus, depending on configuration

Temperature Range :

• Ambient to 212°F (100°C)

Temperature Control Stability :

• ±0.2°F (±0.1°C)

Bath Medium :

• Water

Bath Capacity :

• 13.7 US gallons (51.9 L)

Construction :

• Double-wall design
• Fiberglass-insulated stainless steel tank
• Built-in test cylinder holders
• 1-inch (25 mm) mounting flange for flush installation
• Overflow standpipe and drain

Dimensions (L × W × H) :

• 15 × 15 × 36 inches (38.1 × 38.1 × 91.5 cm)

C. 21-Unit Reid Vapor Pressure Bath

Capacity :

• 21 vapor pressure test cylinders

Temperature Range :

• Ambient to 212°F (100°C)

Temperature Control Stability :

• ±0.2°F (±0.1°C)

Bath Medium :

• Water

Bath Capacity :

• 58 US gallons (219.5 L)

Heating System :

• Stainless steel heat exchanger
• Maximum heater range: 0–6000 W

Circulation System :

• Heavy-duty circulating pump

Level Control :

• Electronic water-level control for maintaining the required immersion depth

Construction :

• Heavy-gauge stainless steel bath interior and components
• Hinged acrylic control panel cover
• Angle-iron base with corrosion-resistant polyurethane finish

Dimensions (L × W × H) :

• 48 × 22 × 36 inches (122 × 56 × 91 cm)

D. Wireless Pressure Data Acquisition System

Measurement Channels :

• Up to 8 pressure vessel channels

Available Pressure Ranges :

• 0–50 psi
• 0–200 psi
• 0–1000 psi

Software Functions :

• Real-time pressure monitoring
• Pressure and vapor pressure graphing
• Independent operation of each channel
• Automatic export to Microsoft Excel

Optional Accessories :

• Vapor pressure test cylinders
• Pressure gauges
• Wireless pressure data acquisition system
• Bleeder valve assembly for LPG testing

• Available in 4/6-unit and 21-unit bath configurations
• Suitable for one-opening and two-opening vapor pressure cylinders
• Microprocessor-based PID temperature control on 4/6-unit baths
• Digital temperature control and display
• Automatic water-level control on the 21-unit bath
• Temperature control stability of ±0.2°F (±0.1°C)
• Double-wall insulated stainless steel bath construction
• Built-in cylinder holders for the required immersion depth
• Overflow standpipe and drain
• Stainless steel heat exchanger and circulating pump on the 21-unit bath
• Optional wireless pressure data acquisition system
• Real-time pressure monitoring and graphing
• Independent operation of up to eight pressure measurement channels
• Automatic export of results to Microsoft Excel
• Optional bleeder valve assembly for LPG testing
