Rerversible Heat Pump + Air Conditioning + Refrigeration with 2 Condensers and 2 Evaporators (Water/Air)

The unit has as aim introduce the student to the study of the heat pumps, air conditioning and refrigeration, as well as the analysis and determination of the operation typical parameters of the unit depending on the two types of fluids used in the processes of evaporation and condensation (air and water).

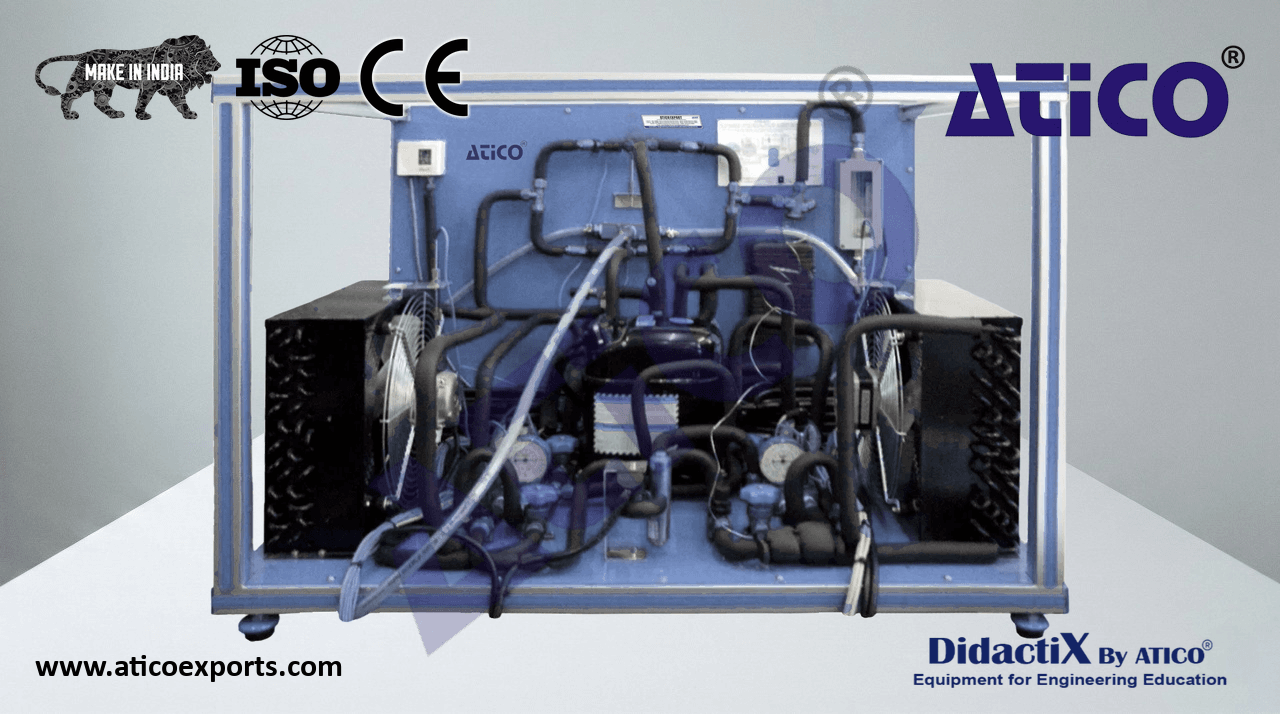

ATENG 12736 — Rerversible Heat Pump + Air Conditioning + Refrigeration with 2 Condensers and 2 Evaporators (Water/Air)

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• Hermetic compressor, power: 3/8 HP.
• Water condenser, capacity: 1580 W.
  Air condenser.
  High pressure control.
• Storage vessel to prevent a wrong operation of the compressor, capacity: 0.5 l.
  Filter for the working fluid. ATENG 12736 detail
  Expansion valve.
• Water evaporator, capacity: 1580 W.
  Air evaporator.
• Liquid separator to prevent liquid from entering the compressor, capacity: 0.73 l.
  Four manometers, situated at important points of the unit.
  Ten temperature sensors (four sensors measure the cooling temperature, three sensors measure the water temperature, three sensors
• measure the air temperature):
  “J” type temperature sensor (compressor outlet).
  “J” type temperature sensor (condenser outlet/evaporator inlet).
  “J” type temperature sensor (evaporator inlet/condenser outlet).
  “J” type temperature sensor (compressor inlet).
  “J” type temperature sensor (water inlet).
  “J” type temperature sensor (condenser water outlet).
  “J” type temperature sensor (evaporator water outlet.
  “J” type temperature sensor (air inlet).
  “J” type temperature sensor (condenser air outlet).
  “J” type temperature sensor (evaporator air outlet).
• Three flow meters:
• Cooling flow meter, range: 5 – 60 l/h.
• Two water flow meters (water condenser and water evaporator), range: 0.2 – 2 l/min.
  Compressor wattmeter.
  Four-way valve (solenoid valve) for reversibility the cycle.
  Four valves to direct the coolant through the condensers and evaporators.
  Enthalpy diagram of R-513a.
  This unit has been designed for the use with the refrigerant R-513a, CFC-free, environmental friendly.
• Electronic console:
  Metallic box.
  Connectors for the temperature sensors.
  Sensor selector for temperature sensors.
  Digital display for temperature sensors.
  High pressure control connection.
  Fans switches. Fans speed regulators.
  Cycle inversion valve connection. Cycle inversion valve switch.
  Digital display for the wattmeter.
  Compressor switch.
  Main switch.
  Cables and Accessories, for normal operation.
