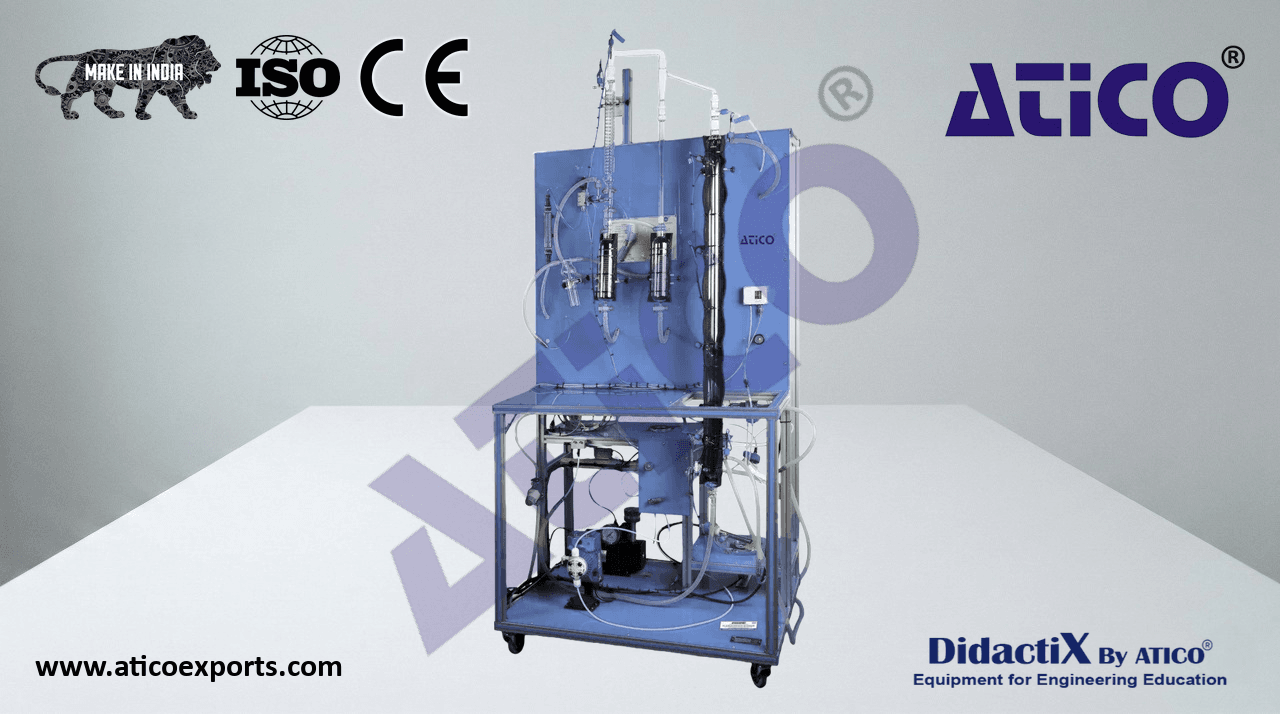

Rising Film Evaporator Deluxe

The Rising Film Evaporator, to study the operating processes of a rising film evaporator. It allows the monitoring of all the variables for a complete study of the process according to the working conditions and to investigate the effects of the variation of process parameters such as: vacuum, temperature, flow, etc. in the rising film evaporation.

ATENG 10787 — Rising Film Evaporator

Anodized aluminum frame and panels made of painted steel.

The unit includes wheels to facilitate its mobility.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• Evaporation double jacket column, with a heating surface of 0.122 m³, 30 mm of internal
• diameter, 60 mm of external diameter and 1300 mm of length.
  Membrane dosing pump, maximum flow 15 l/h, with flow control.
  Single effect vacuum pump, maximum flow 3 m³/h and maximum vacuum of 150 microns.
• Three tanks, capacity: 10 l (for feeding, concentrated and evaporated).
• Two graduated vessels for the storage of concentrated and evaporated product, capacity:
  500 ml.
• Coil coolant with length of 400 mm.
• Heating element, range: 300 W.
  Pressure safety cut out for pressure control in the column. ATENG 10787 detail
  Ten temperature sensors, type “J”.
• Flow meter, range: 0.2 – 2 l/min.
• Two manometers, range: 0 – 2.5 bar.
  Solenoid valve.
• Electronic console:
  Metallic box.
  Temperature sensors connections.
  Digital display for temperature sensors.
  Selector for temperature sensors.
  Pumps switches.
  Heating resistance switch.
  Heating resistance temperature control.
  Solenoid valve connection.
  Pressure safety cut out connection.
  Main switch.
  Cables and accessories, for normal operation.
