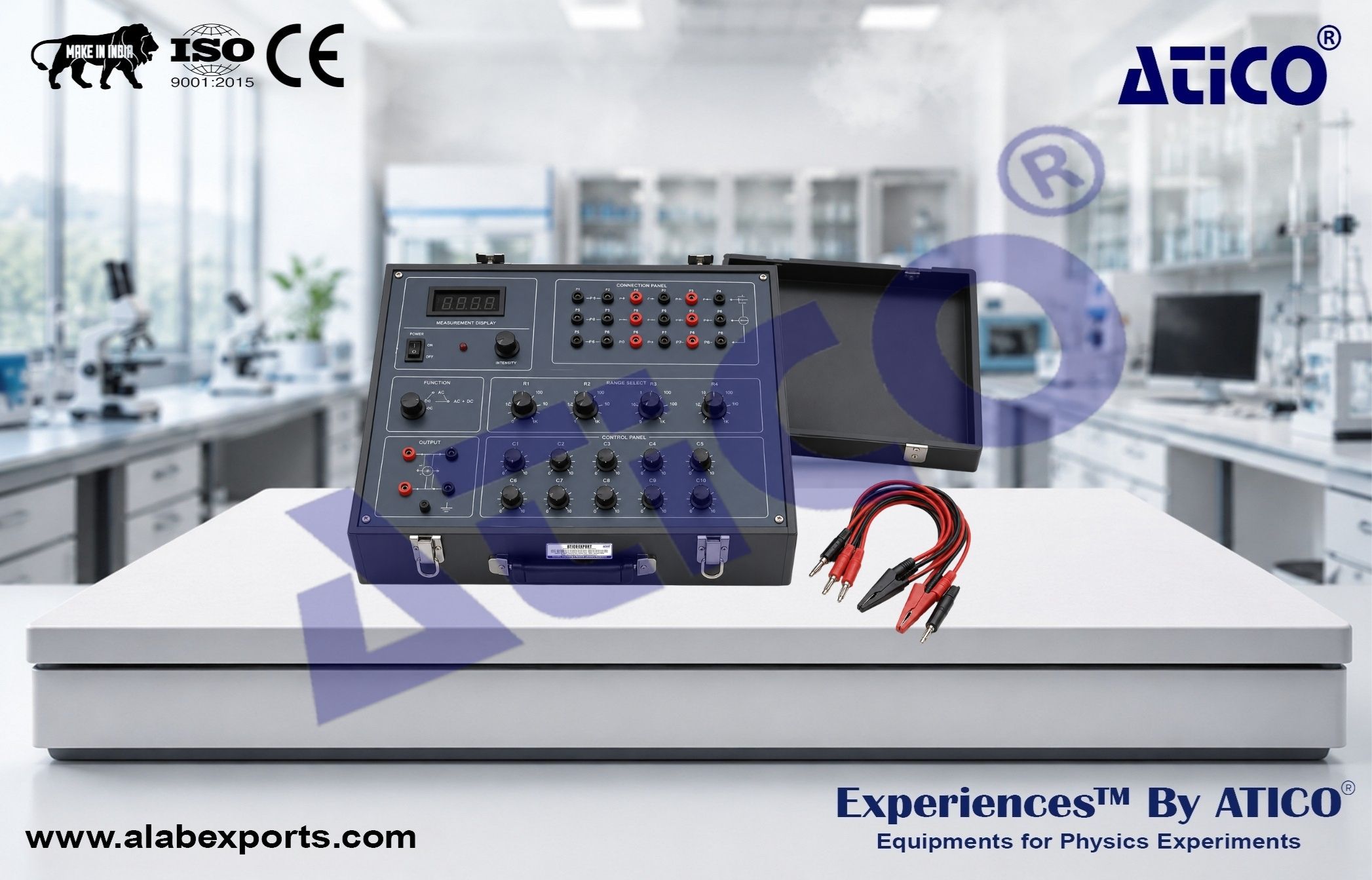

RLC Circuit Experiment

Experiments :

• Observation of the amplitude-frequency and phase-frequency characteristics of RC, RL, and RLC circuits.

Experiments :

• Study of series and parallel resonance phenomena in RLC circuits.

Experiments :

• Observation of transient responses in RC and RL circuits and determination of the time constant (τ).

Experiments :

• Investigation of transient behavior and damping characteristics of an RLC series circuit, including measurement of the critical resistance value.

Signal Generator :

• Output Signals: DC, sine wave, and square wave.
• Sine Wave Frequency Range: 50 Hz to 100 kHz.
• Square Wave Frequency Range: 50 Hz to 1 kHz.
• Output Amplitude:
• Sine Wave: 0–8 Vp-p.
• Square Wave: 0–8 Vp-p.
• DC Output: 2–8 V.

Resistance Box :

• Range: 1 Ω to 100 kΩ.
• Minimum Step: 1 Ω.
• Accuracy: ±1%.

Capacitor Box :

• Range: 0.001 μF to 1 μF.
• Minimum Step: 0.001 μF.
• Accuracy: ±2%.

Inductance Box :

• Range: 1 mH to 110 mH.
• Minimum Step: 1 mH.
• Accuracy: ±2%.

Customization :

• Alternative component values and specifications available upon request.

Oscilloscope :

• Dual-trace oscilloscope required (user-supplied).

Designed For :

• Physics Lab Experiments from Atico Exports.
