Robotic Arm Workstation

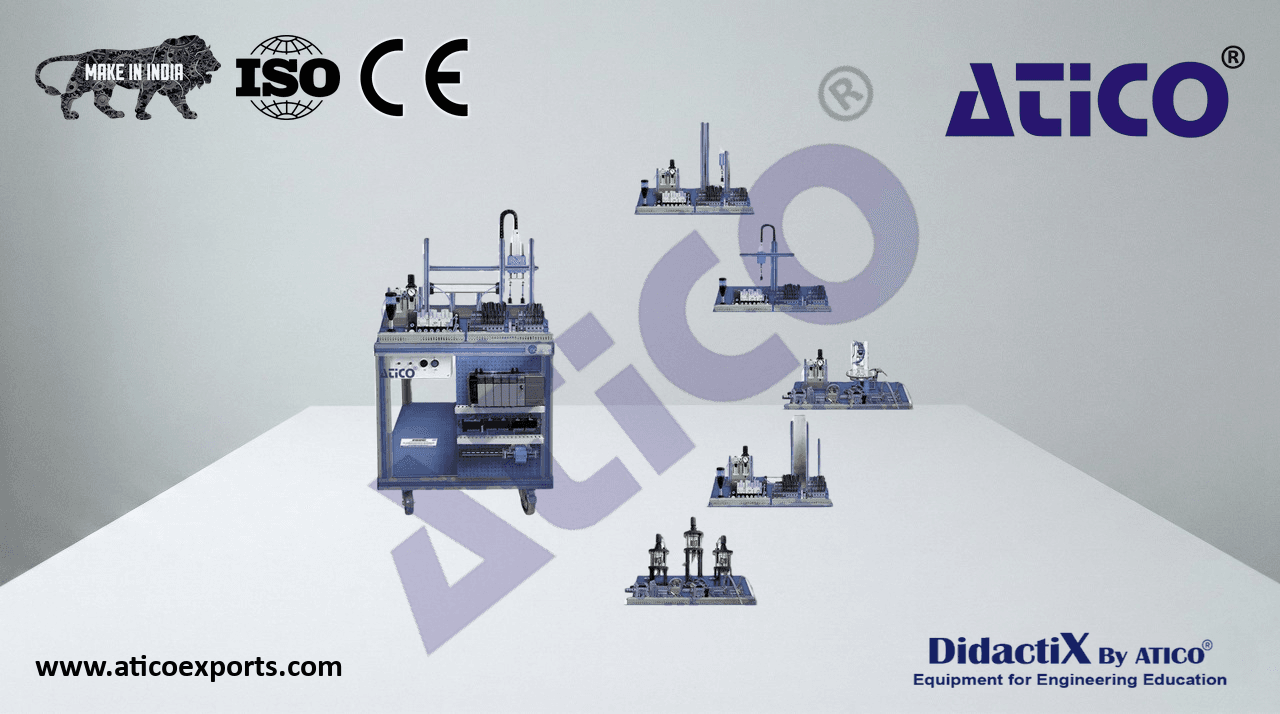

The Robotic Arm Workstation, to study the possibilities of a programmable six degree of freedom robotic arm. The also includes an electric drill and a pneumatic double acting gripper, which can be installed in the robotic arm.

ATENG 12583 — Robotic Arm Workstation

Mounted with aluminum profiles.

Ten pieces made of aluminum.

• Control panel:
  Mushroom head emergency stop push button switch.
  Start and stop pushbuttons.
  Switch for manual or automatic operation.
  Light indicator.
  Led stack light.
  Terminal block to connect the individually identified inputs and outputs of the unit.
• Robotic arm:
  Six degrees of freedom.
• Maximum load capacity: 2 Kg.
• Weight: 19 Kg.
• Position repeatability: ± 0.02 mm.
• Detection method: absolute encoder.
• Arm length: 500 mm max.
  Console to program the robotic arm.
  Electric drill to install in the robotic arm.
  Pneumatic double acting gripper to install in the robotic arm.
• Pneumatic circuit:
• Air treatment unit:
  Filter-regulator with water trap.
  Manometer with double scale indicator.
  Shut-off valve.
• Required elements (only one) (Not included):
• SU-P. Large Pneumatic Supply Unit.
• ATENG 12395. Silent Air Compressor Unit.
  Designed to work with the units.
  Single-phase motor with 340 W.
  Low noise level with 40 dB of maximum.
• Boiler capacity: 9 l.
• Maximum pressure: 8 bar or 0.8 MPa.
• Maximum air flow: 50 l/min.
  Safety relief valve.
  Start/stop switch.
• Double scale manometer psi and bar with a range from 0 to 12 bar to measure the air pressure
  before the air filter regulator.
  ATENG 12395
• Air filter regulator (FR):
• Double scale manometer psi and bar with a range from 0 to 12 bar to measure the air
  pressure after the air filter regulator.
  Air filter with drain.
• Air pressure regulator from 0 to 8 bar.
• 6 mm quick release connector of 6mm for pneumatic flexible tubes.
  Oil level indicator.
  The oil necessary to work is included with the unit.
  Include the connector types to work with pneumatic applications of.
