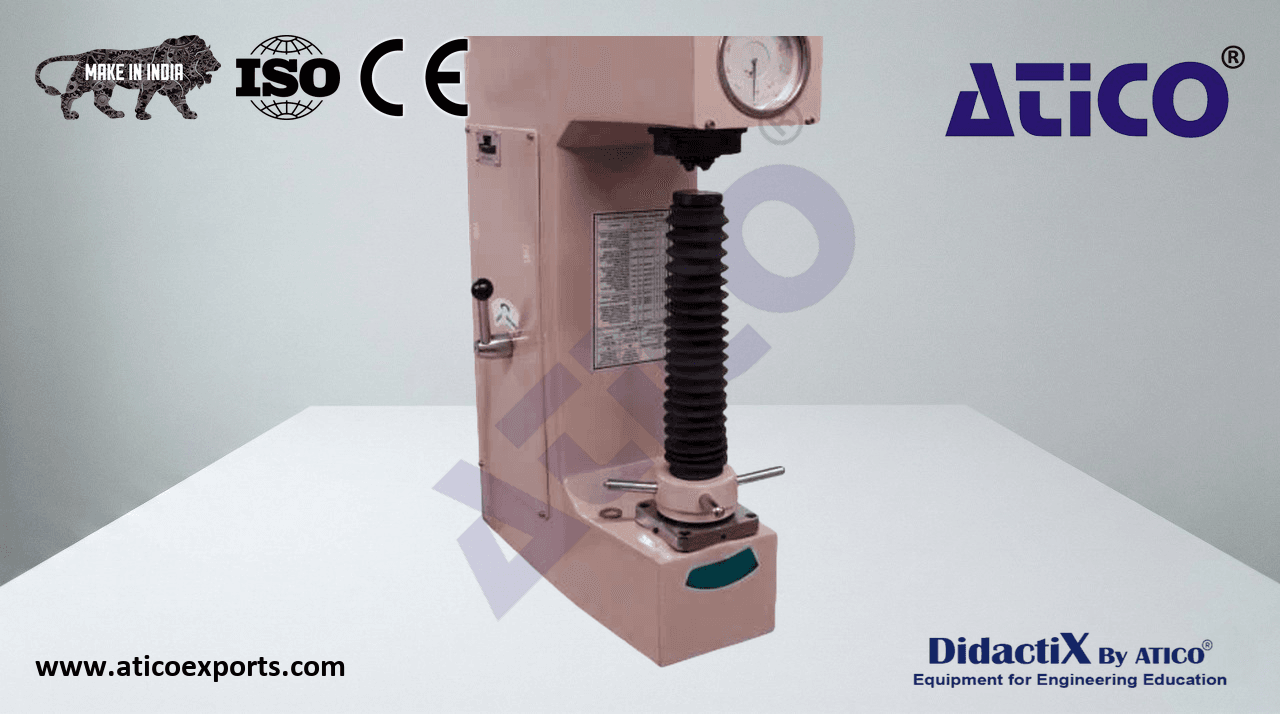

ROCKWELL/BRINELL HARDNESS TESTER

This combined hardness tester is designed for measuring the hardness of metals with flat, round, or irregular specimen shapes. The cast iron bench-mounted unit operates on the principle of a lever and weights system. Weights are applied to the free end of a lever, transmitting pressure onto a plunger which indents the specimen under test. Learn about ROCKWELL/BRINELL HARDNESS TESTER suppliers for optimal educational outcomes.. Weights are automatically selected using the rotary selector on the side of the unit.

• Capable of both Rockwell and Brinell hardness tests in a single unit
• Test loads: 60, 100, 150 kgf (Rockwell); 187.5 kgf with 10 kgf preload (Brinell)
• Test tables: Ø38mm and Ø50mm and 'V' groove for round specimens
• Indenters supplied
• Dial gauge readout for Rockwell 'B' and 'C' scales
• Automatic selection of loading weights
• Rubber bellows for protection of elevating screw
• Hardness reference tables supplied
