Room Temperature Hall Effect upper level physics experiments

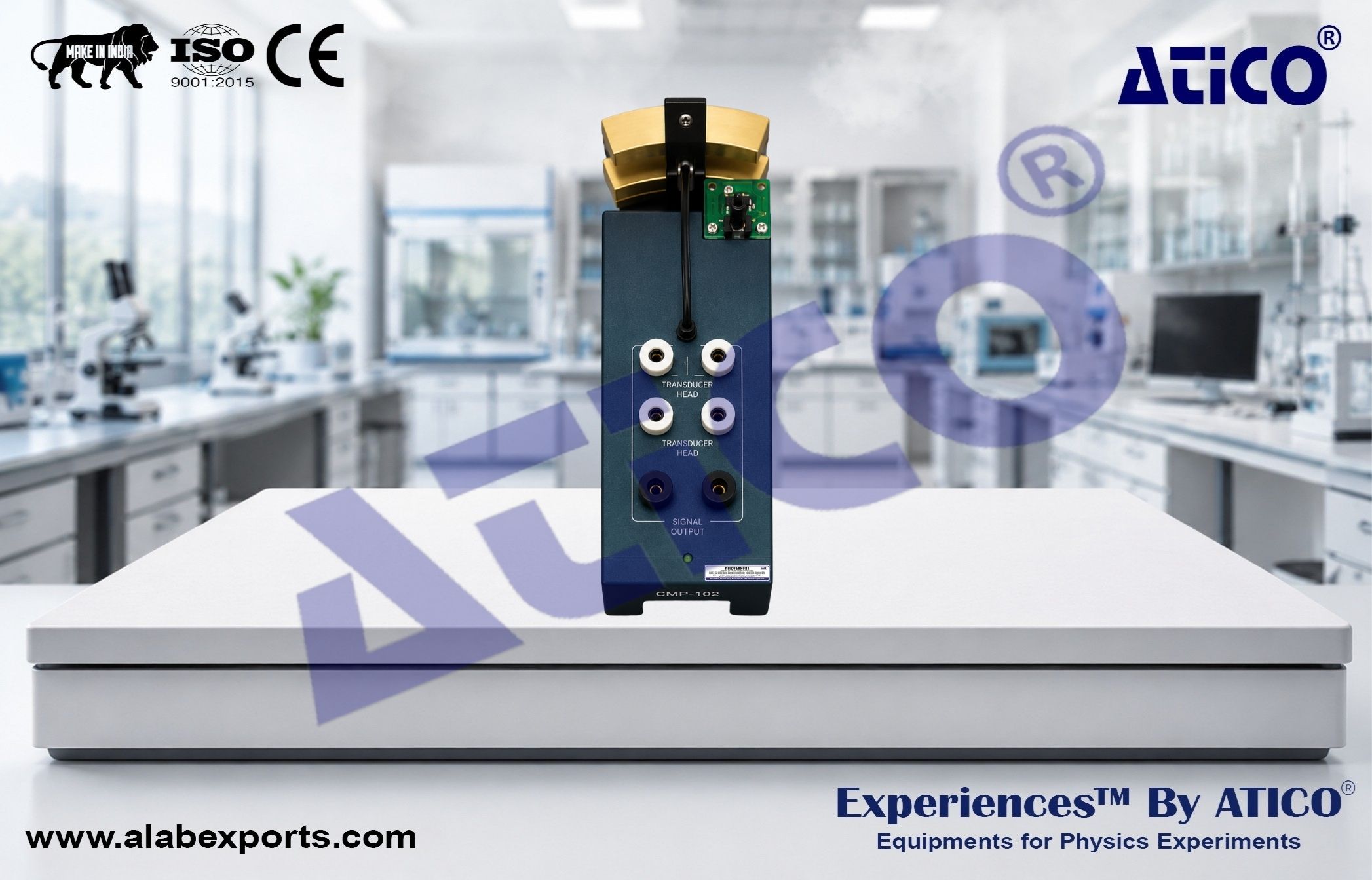

The Hall Effect Experiment System is designed for advanced physics laboratories to demonstrate and measure the Hall Effect in both semiconductor and metal samples. The apparatus enables students to determine the sign, density, and mobility of charge carriers while measuring magnetic field strength, Hall voltage, and electrical resistivity. Its transparent design allows easy tracing of electrical connections, making it ideal for understanding the fundamental principles of charge transport in conductive materials. Manufactured by Atico Export India.

• Hall Effect demonstration
• Charge carrier identification
• Charge carrier density measurement
• Hall voltage measurement
• Magnetic field measurement
• Semiconductor characterization
• Metal conductivity studies
• Electrical resistivity measurement
• Four-wire resistance measurement
• Condensed matter physics education

Instrument Components :

• Permanent magnet assembly
• Semiconductor sample holder
• Metal sample holder
• Hall Effect sample modules
• Current-limiting resistor
• Current-reversing switch
• Electrical connection terminals
• Four-wire measurement terminals
• Magnetic field assembly
• Sample mounting platform

Experiments :

Hall Effect Studies

• Hall voltage measurement
• Hall coefficient determination
• Charge carrier sign determination
• Charge carrier density measurement

Semiconductor Experiments

• N-type semiconductor analysis
• P-type semiconductor analysis
• Semiconductor resistivity measurement
• Carrier transport studies

Metal Studies

• Hall Effect in metallic samples
• Thin-film conductor analysis
• Electrical conductivity measurements
• Sample thickness determination

Magnetic Field Experiments

• Magnetic field direction determination
• Magnetic field strength measurement
• Magnetic field reversal studies

Electrical Measurements

• Four-wire resistivity measurement
• Longitudinal voltage measurement
• Transverse voltage measurement
• Precision current and voltage analysis

Educational Objectives :

• Understand the principles of the Hall Effect
• Determine the sign of charge carriers
• Measure charge carrier density
• Investigate electrical conduction in semiconductors and metals
• Study magnetic field effects on moving charges
• Perform four-wire resistivity measurements
• Understand Hall voltage generation
• Develop practical skills in condensed matter physics experiments
• Analyze charge transport mechanisms
• Gain hands-on experience with precision electrical and magnetic measurements

• Optimized for Hall Effect experiments
• Supports both semiconductor and metal samples
• Reversible permanent magnetic field
• Transparent electrical connections
• Determines the sign of charge carriers
• Measures carrier concentration
• Four-wire resistivity measurement capability
• Current-limiting resistor included
• Current-reversing switch provided
• First-principles magnetic field measurement
• Magnetic field strength approximately 0.6 Tesla
• Suitable for precision Hall voltage measurements
• Ideal for undergraduate and postgraduate laboratories
