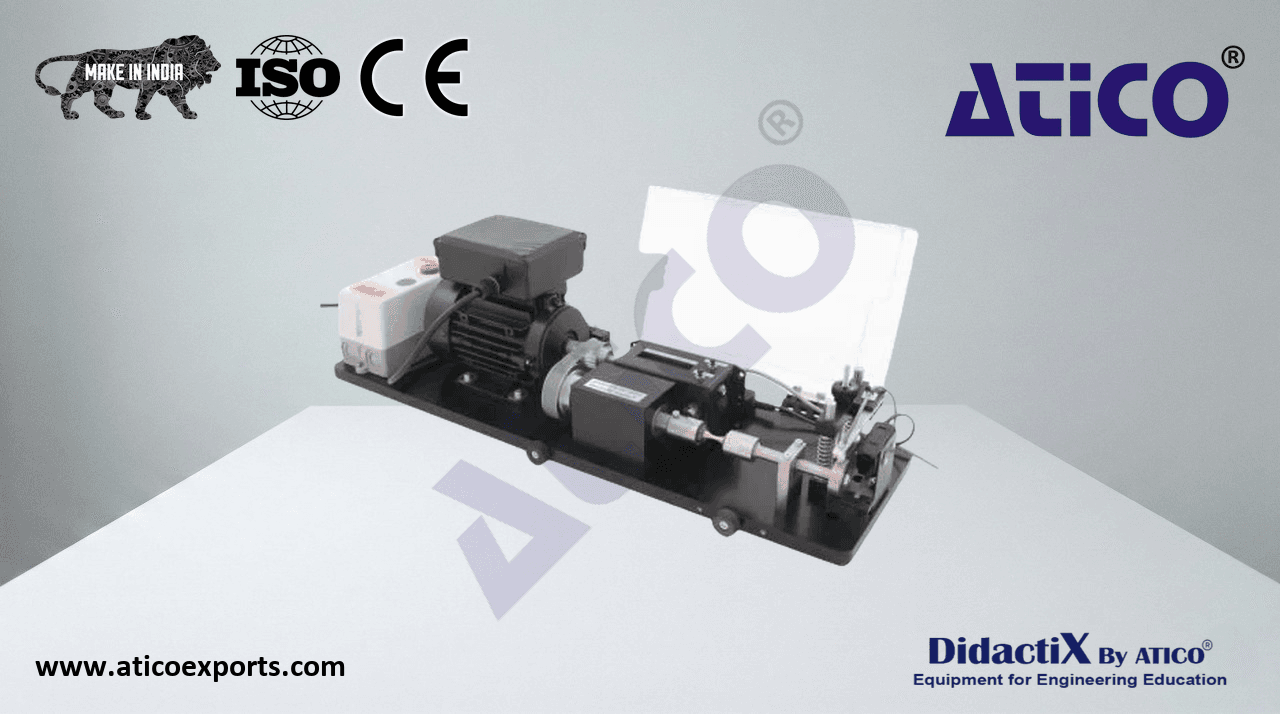

ROTATING FATIGUE MACHINE (ELECTRONIC LOADING MECHANISM)

Category: Mechanical Engineering Lab Equipments

Need Help?

Applications

This unit introduces students to the effects of material fatigue using a sinusoidal variation of bending stress. A 2800 rpm motor rotates a specimen through a gear and pulley arrangement at either 5600 or 1400 rpm. Specimens are held within keyless chucks and loaded using a cantilever arrangement with load applied through a screw jack mechanism and integral cantilever load cell. Learn about ROTATING FATIGUE MACHINE (ELECTRONIC LOADING MECHANISM) manufacturers for optimal educational outcomes.. A digital interface displays the applied force and revolution count, both of which can be reset and zeroed prior to testing. When specimen failure occurs, a micro switch stops the motor and the cycles to failure are registered on the digital display. Learn about ROTATING FATIGUE MACHINE (ELECTRONIC LOADING MECHANISM) price for optimal educational outcomes.. A safety guard shields all rotating parts. The digital interface incorporates a USB socket allowing a host computer (not supplied) to be connected for data capture and review. Learn about ROTATING FATIGUE MACHINE (ELECTRONIC LOADING MECHANISM) for educational labs for optimal educational outcomes.. Through appropriate spreadsheet software (not supplied), data can be printed and manipulated. Specially machined necked test specimens are provided in steel with a 4mm nominal neck diameter. Learn about ROTATING FATIGUE MACHINE (ELECTRONIC LOADING MECHANISM) specifications for optimal educational outcomes.. All tooling for specimen removal and fitting is provided. A full technical instruction manual is supplied. Learn about ROTATING FATIGUE MACHINE (ELECTRONIC LOADING MECHANISM) suppliers for optimal educational outcomes..
