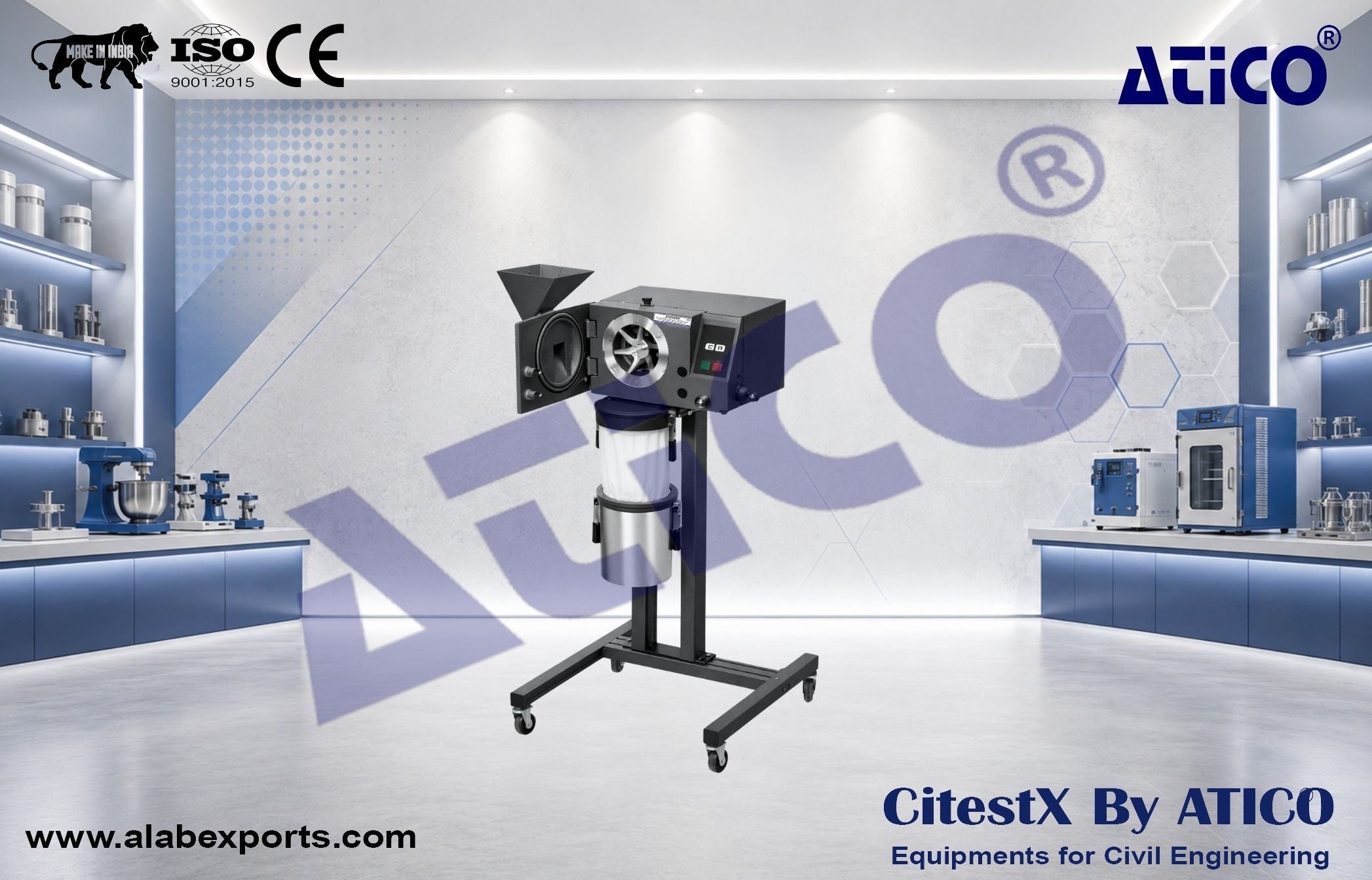

Rotor Beater Mill

The Rotor Beater Mill is suitable for coarse and fine size reduction. It can process dry, soft, medium-hard, organic and inorganic substances. For increased sample discharge and for processing heat-sensitive samples, an optionally available cyclone unit can be used instead of the gravity outlet.

Product Advantages

• Wide range of accessories including various feeding systems, rotors and sieves
• Defined final fineness due to bottom sieves with aperture sizes from 0.08 – 10 mm
• Optional grinding inserts 180° for grinding of hard-brittle materials by additional impact
• Gravity outlet with 5 L or 30 L collecting vessel for batchwise collection of larger sample quantities
• Optionally available cyclone unit with 0.25 – 0.5 – 1 – 2 – 5 or 30 liters collecting vessel
• Optional distance rotor to reduce frictional heat
• Adjustable speed for different applications
• Removable hopper for easy cleaning
• Easy cleaning thanks to exchangeable push-fit grinding insert, rotor and cassette
• Central locking device
• Grinding chamber, feed hopper, material inlet and outlet made of stainless steel
• Electric engine brake

Functional Principle

The feed material passes from the hopper into the center of the grinding chamber where it is crushed between the rotor, sieve and grinding inserts.
As soon as the material is smaller than the aperture size of the sieve it enters the collecting receptacle through the gravity outlet. The airborne fine fraction is separated off by a downstream filter system.
The optionally available cyclone separator ensures cooling of the sample material and the cutting tools and improves the discharge of the sample from the grinding chamber.
The quick-acting door lock ensures easy access to the grinding chamber for quick cleaning. With their safety switch, splashback and access barrier in the inlet and outlet areas, Rotor Beater Mills offer a high degree of operating safety.

Applications :

• size reduction, deagglomeration

Field of application :

• agriculture, chemistry / plastics, construction materials, environment / recycling, food, geology / metallurgy, medicine / pharmaceuticals

Feed material :

• soft, medium-hard

Material feed size :

• < 25 mm

Final fineness :

• < 50 °m

Speed at 50 Hz (60 Hz) :

• 3,000 - 10,000 min-1 (in steps of 500 min-1)

Rotor peripheral speed :

• 22 ..72 m/s

Types of rotors :

• standard / distance

Material of grinding tools :

• rotor and sieves of stainless steel

Sieve sizes :

• trapezoid holes 0.08 / 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.25 / 1.50 / 2.00 mm
• round holes 3.00 / 4.00 / 10.00 mm

Hinged hopper :

• removeable hopper

Dust extractionv unit :

• optional cyclone

Collector capacity :

• 5 l / optional: 30 l

Drive 3-phase :

• motor

Electrical supply data :

• 200-240 V, 50/60 Hz

Power connection :

• 1-phase

Engine brake :

• yes, electric

Protection code :

• IP 41

Power consumption :

• 2.5 kW

W x H x D closed :

• 600 x 1200 x 700 mm (with base frame)

Net weight :

• ~ 60 kg (with base frame)

Standards :

• CE
