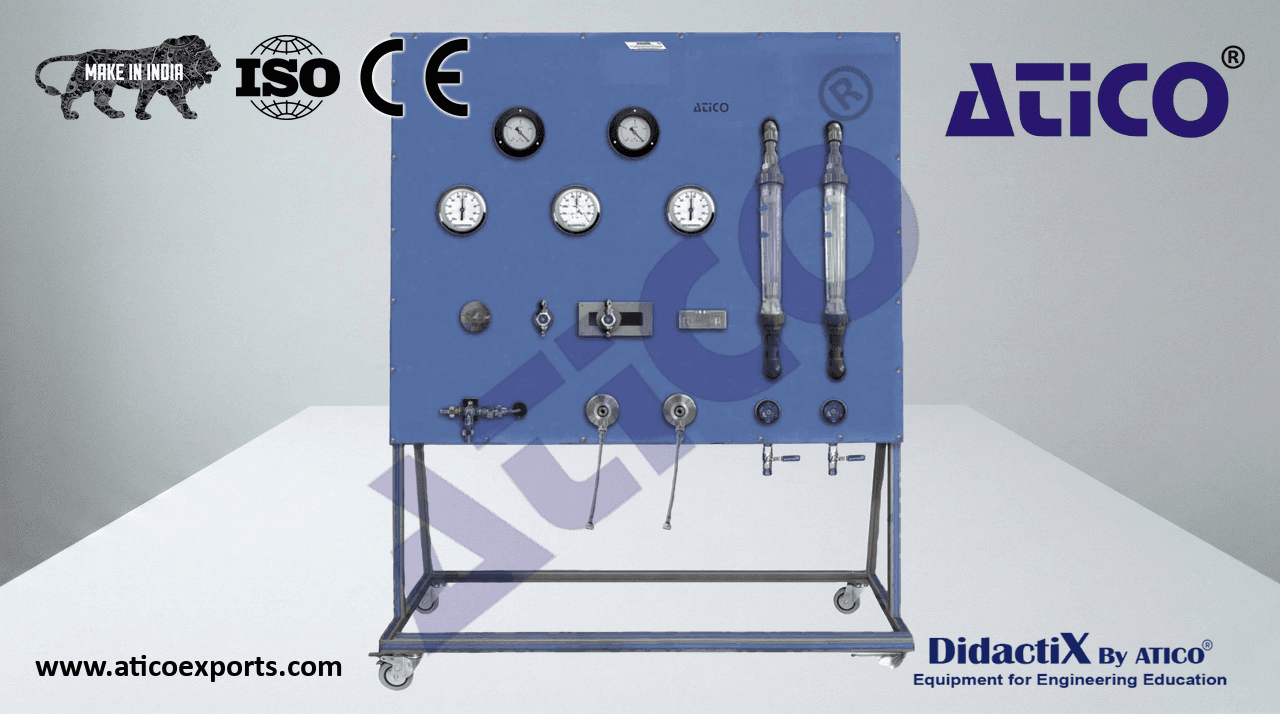

ATENG 12782 — Sanitary Fittings Training Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Diagram in the front panel with distribution of the elements similar to the real one.
- The unit includes:
A cold water connection and a hot water connection. They include quick-release couplings and two ball valves.
- Two adjustable pressure reducing valves:
- Max. inlet pressure: 25 bar.
- Range of outlet pressure: 2 – 6 bar.
- Max. temperature: 70 °C.
- Two flowmeters, range: 2.5 – 26.5 l/min.
- A flushing valve connection. This method includes a mixed water connection and a mixed water drain:
- Size: DN20.
- Pressure range: 1 – 5 bar.
Two standard connections to connect a dual-control mixer tap for a shower. These connections are flexible and can adapt to different
sized fittings. This method includes a bracket to support the standard fitting.
Two connections for the wall-mounted fittings to connect a dual-control mixer tap as a water tap. These connections can adapt to
different sized fittings.
- Three dial thermometers, range: 0 – 100 °C.
- Two Bourdon manometers, range: 0 – 6 bar.
