SCR Single Phase Half Controlled Rectifier RC Firing

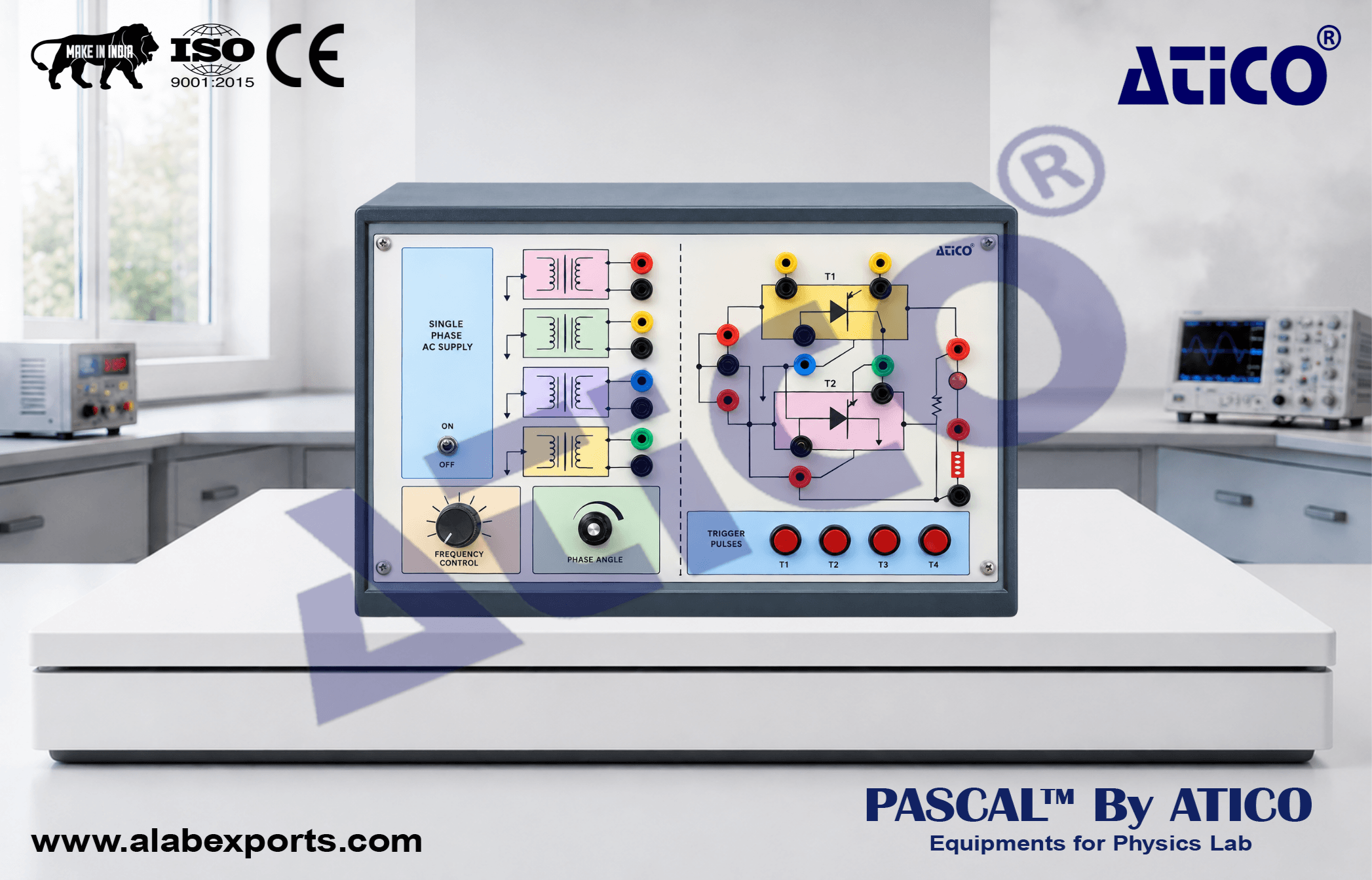

The SCR Single Phase Half Controlled Rectifier RC Firing is designed for practical study of SCR-based AC phase control and controlled power conversion. It provides a suitable platform for understanding SCR triggering, phase control, and the behavior of inductive and resistive loads through hands-on experimentation. The trainer includes an AC phase control firing circuit, SCR, inductive load using a DC motor, and variable resistive load for practical circuit studies. The unit is housed in an ABS plastic cabinet and features a clearly printed insulated circuit board. Designed and manufactured by Atico Export to meet the practical demands of modern laboratories.

Analog Meters:

• Voltmeter: 20 V DC.
• Ammeter: 250 mA DC.

Power Supply:

• Isolated supply: 0–15 V AC at 250 mA.
• Mains operated: 230 V, 50 Hz ±10%.

Components Mounted on Panel:

• SCR.
• AC phase control by RC firing circuit.
• Inductive load using 12 V DC motor.
• Resistive load using variable 5 W rotary-switch resistor.

• Protective cover.
• Fuse protection against short-circuit conditions.
• Front panel with high-class insulated printed circuit board featuring clearly printed circuits and symbols.
• Instruction manual.
• 4 mm patch cords.
• High-voltage test points with 4 mm sockets.
• Housed in an ABS plastic cabinet.
• Trainer size: 12 × 10 inches.
