Screw Joint Testing Unit

The Screw Joint Testing Unit, is a device that allows to measure the tightening torque of a screw with a particular metric, which is related to a strain produced in both bars.

ATENG 12299 — Screw Joint Testing Unit

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12299” unit mainly consist of:
  Two rectangular-shaped steel beams.
• Torque wrench with ratchet, tightening range: 0 – 80 N · m.
• Fastener: M8.
  Nut.
• Tightening spindle and flywheel:
• Maximum tightening torque: 30 N · m.

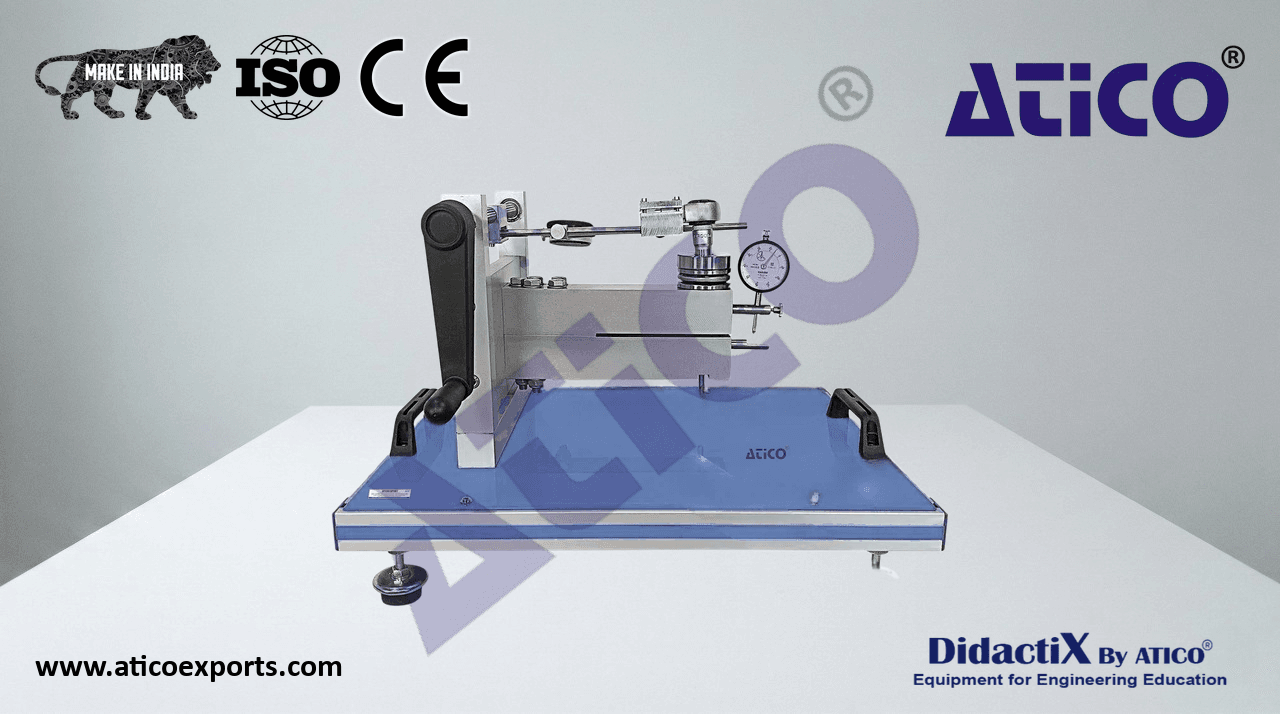

• Maximum axial load: 40 kN. ATENG 12299 detail
  Box of same-sized spare screws and different materials.
• Two dial indicators: 0 – 20 mm. They measure the strain in beams. Precision: 0.01 mm.
