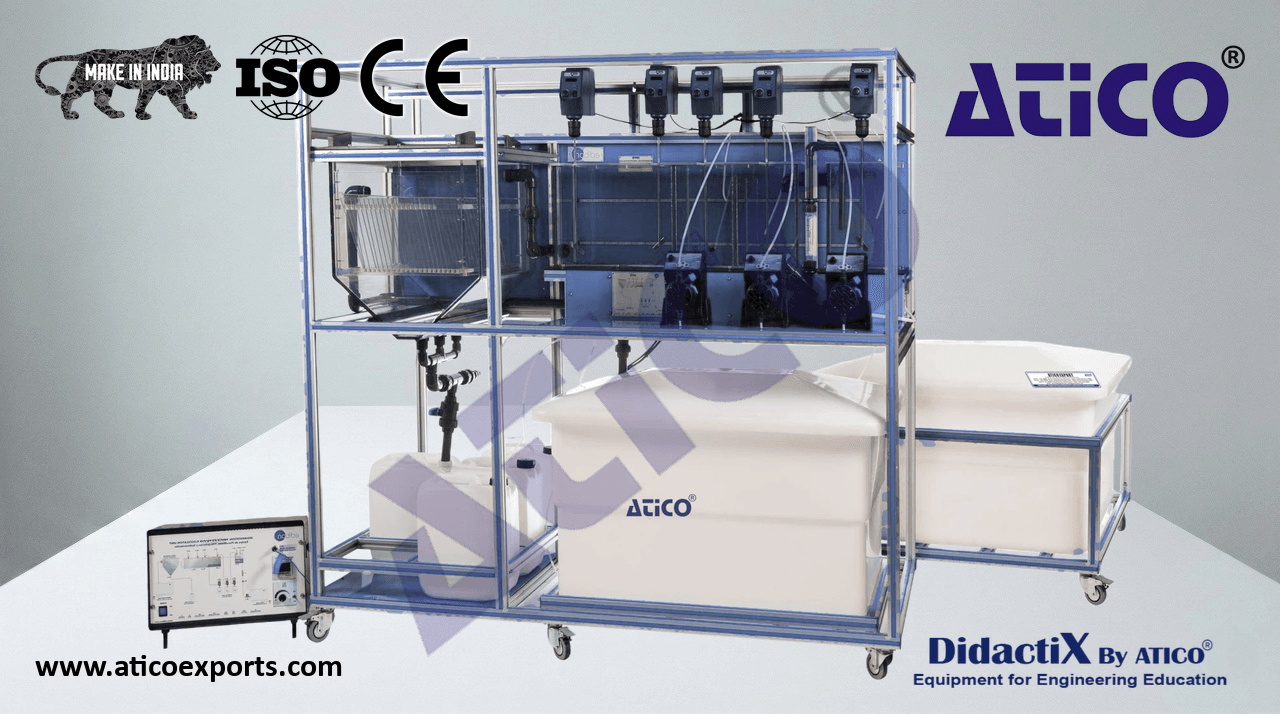

ATENG 12005 — Sedimentation, Precipitation and Flocculation Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
All elements of this unit are chemically resistant.
- Supply unit:
- Storage tank for raw water, volume: 400 l.
- Process unit:
- Peristaltic pump to supply raw water:
- Max. flow: 240 l/h. ATENG 12005 detail
- Max. head: 8 bar.
- Transparent precipitation tank, volume: 10 l. It includes:
- Adjustable speed stirrer with display for rpm (0 – 2200 rpm).
“J” type temperature sensor.
- Transparent coagulation-flocculation tank made of PETG, total volume: 45 l.
It is divided into two main tanks, coagulation and flocculation.
- It includes four adjustable speed stirrers with display for rpm (0 – 2200 rpm).
- Transparent lamella separator made of PETG, volume: 100 l.
21 removable lamelas made of PMMA with a preset angle of inclination of 60º.
The number and inclination of the lamellas can be changed.
- Sludge tank made of HDPE, volume: 20 l.
- Treated water tank made of HDPE, volume: 400 l.
- Three tanks for the addition of chemicals made of HDPE, volume: 20 l.
- Three adjustable speed pumps for the addition of reagents:
- Maximum flow: 2.1 l/h.
- Maximum pressure: 5 bar.
- Double regulation range: 0 – 100% and 0 – 20%.
- Flow meter to measure the raw water flow, range: 15 – 160 l/h.
- pH/conductivity and total dissolved solids sensor:
- pH range: 0 – 14.
- Conductivity range: 0 – 6000 µS/cm.
- Total dissolved solids range: 0 – 1990 ppm.
Inclined seat valve to regulate the raw water flow.
Flushing and cleaning valve for the separator.
Six sample collection points distributed in different tanks of the unit.
LEDs for the coagulation-flocculation process visualization.
Cables and accessories, for normal operation.
