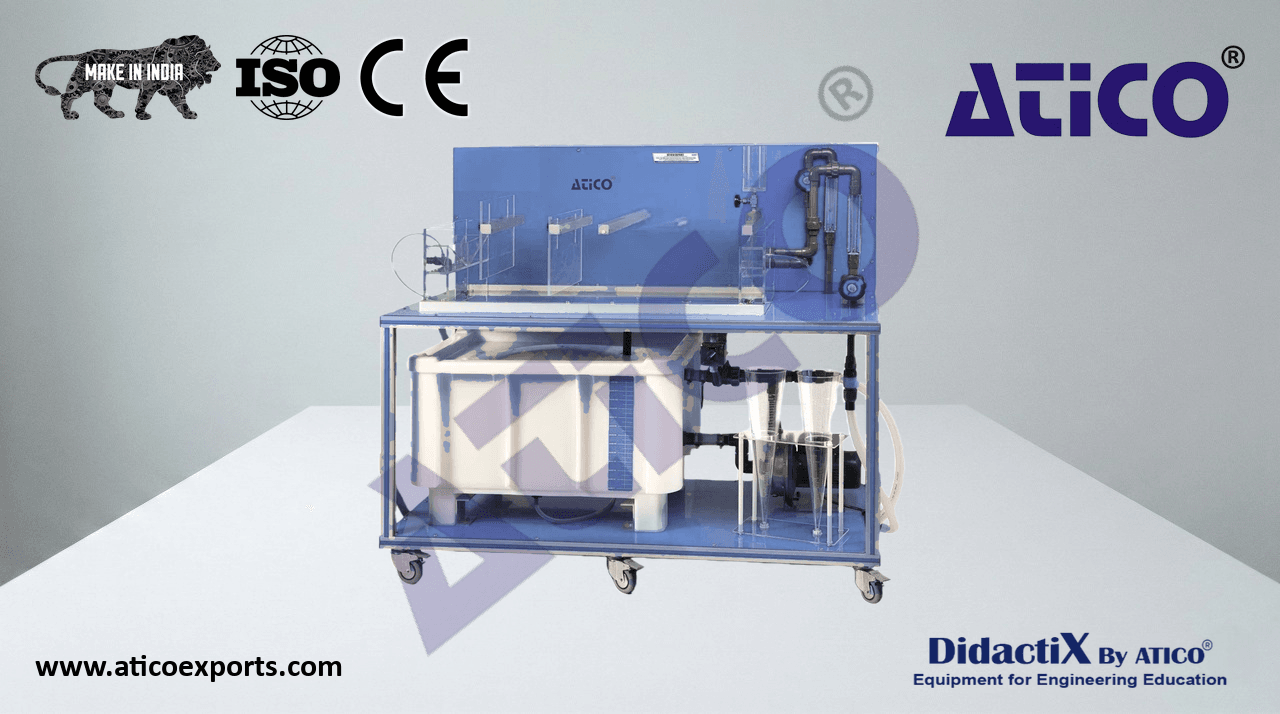

ATENG 11648 — Sedimentation Tank
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Sedimentation tank, made of transparent material; length: 1000 mm, width: 400 mm,
- height: 250 mm.
Dye injection and tracer system, which allows to study the fluid current lines into the
sedimentation tank.
Two baffle plates, adjustable in height, what makes easier for the student the possibility of
changing the flow lines direction and its study.
- Suspension installation, consists of:
Suspension tank of 140 l.
ATENG 11648 detail
Constant stirring in the suspension tank by a flow bypass impelled by the pump.
- Centrifugal pump, flow up to 80 l/min. Maximum height: 20 m.
Flow regulation valve.
- Flowmeter, range: 0.2 – 2 l/min.
- Clean water installation, consists of:
Flow regulation valve.
- Flowmeter, range: 1.5 – 10 l/min.
- Accessories included for the samples analysis:
Two Imhoff cones of 1000 ml, to measure the solids concentrations.
Graduated test tube of 1 l.
Cables and accessories, for normal operation.
