Series and Parallel Pumps Demonstration Deluxe

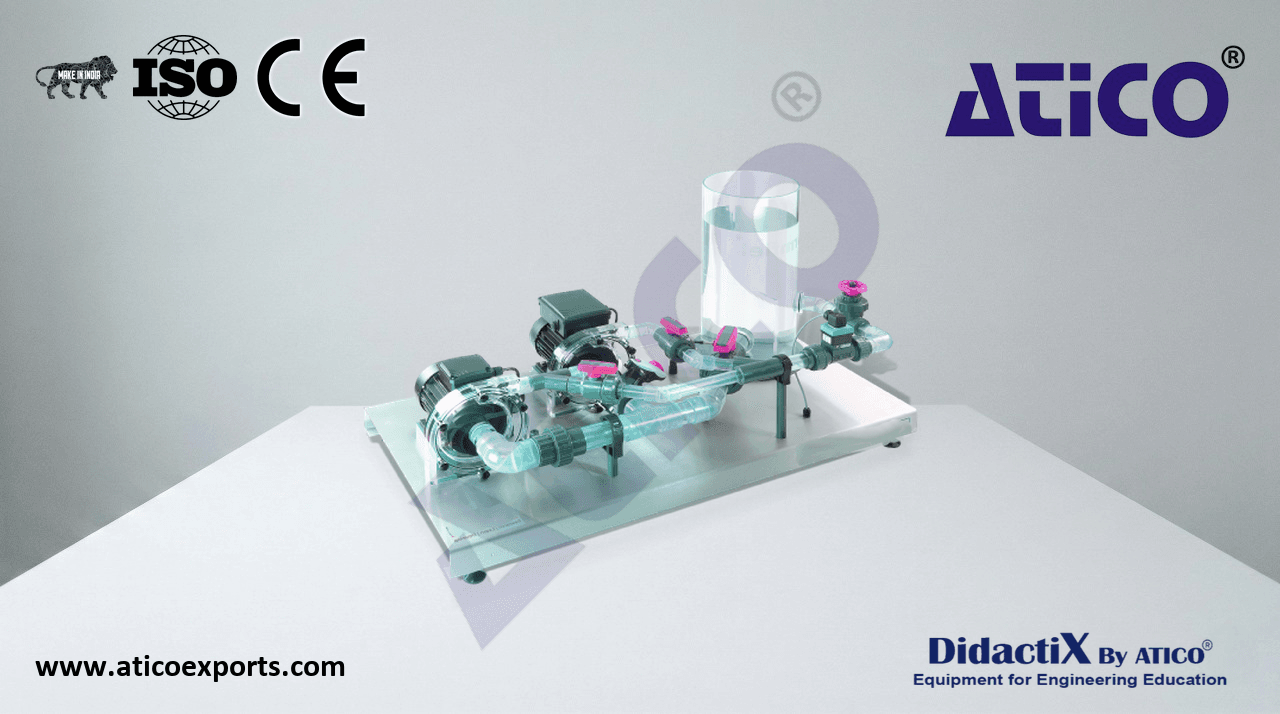

Two motor-driven centrifugal pumps mounted on a stainless steel plinth with water reservoir and pipework for continuous circulation.

Two motor-driven centrifugal pumps mounted on a stainless steel plinth with a water reservoir and pipework for continuous circulation. The pumps can be configured for single pump operation, two pumps in parallel or two pumps in series by using manually operated ball valves.

• Two motor-driven centrifugal pumps
• Stainless steel construction plinth
• Water reservoir for continuous circulation
• Manually operated ball valves for configuration control
• Single pump operation configuration
• Two pumps in parallel configuration
• Two pumps in series configuration
• Max flow rate: 2.2 l/s (parallel pumping, both pumps 50Hz)
• Max head: 6.0m (single pump) – 12.0m (series)
• Pump speed: 1,800rpm (pump 1) – 1,500rpm (pump 2)
