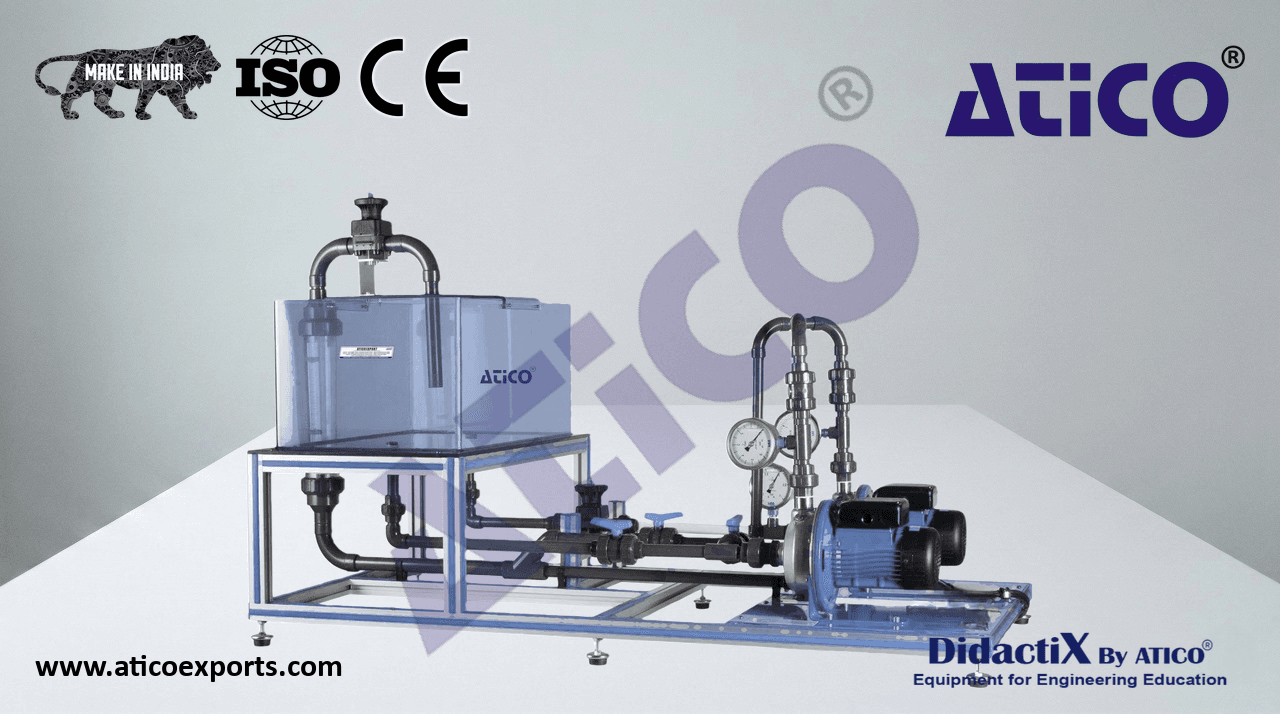

ATENG 11833 — Series/Parallel Pumps Bench
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Two centrifugal pumps:
- Maximum flow: 120 l/min.
- Maximum height (approx.): 25 mwc (meter of water column).
- A three-phase motor activates a pump, 0.37 kW with continuous adjustment with inverter of frequency/
voltage; and other single-phase motor activates the other pump.
Three valves that allow for connecting the pumps separately, in series or in parallel depending on their
appropriate position.
Two flow regulating valves.
- Water tank, capacity: 60 l.
Torque measurement and speed measurement.
- Discharge pressure manometer; range: 0 – 2.5 bar.
ATENG 11833 detail
- Discharge pressure manometer; range: 0 – 6 bar.
- Admission pressure manometer; range: -1 – 1 bar.
- Flow meter; range: 0 – 150 l/min.
- Electronic console:
Metallic box.
Pumps switches.
Speed controller.
Speed measurement digital display.
Torque measurement digital display.
Cables and accessories, for normal operation.
