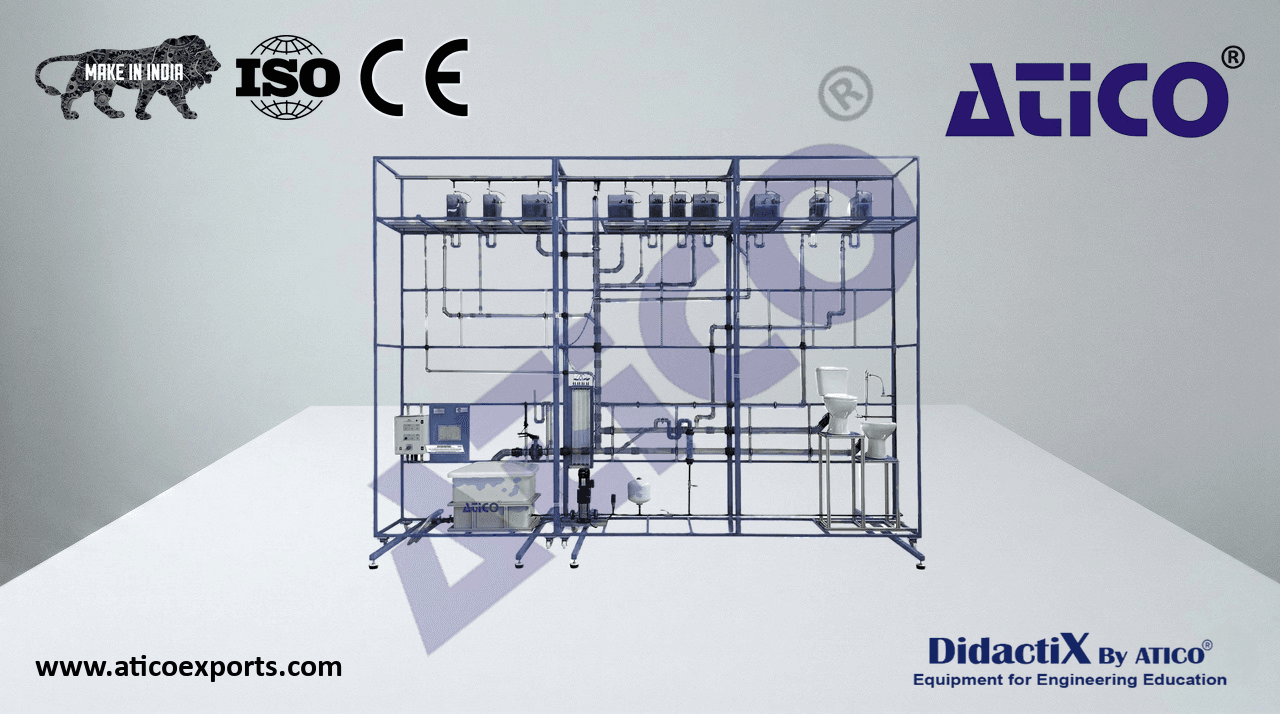

ATENG 12788 — Sewerage Unit
Steel frame and painted steel panels.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Ten transparent toilet tanks with solenoid valves controlled by the user via remote control:
Six tanks of 10 l.
Four tanks of 20 l.
Two toilets controlled by the user.
Toilet with tank.
Toilet with pressure flush.
All pipes are transparent to allow visualization of the flow interior.
Linear actuator for aeration of the downspout.
Two solenoid valves for pipe aeration.
- Measuring instruments: ATENG 12788 detail
- Eight tube manometers: 850 mm WC to measure pressure along the downpipe.
- Flow meter with range: 0.5 – 6.3 m3/h.
- Pump:
- Power: 0.55 kW.
- Flow: 4.4 m3/h.
- Manometric height: up to 45 m.
- Collection tank:
- Approximate volume: 300 l.
- Control panel:
Main switch.
Emergency stop.
Pump switch.
Pump speed regulator.
Linear actuator switch for downspout aeration.
Solenoid valve switches for aeration.
Cables and Accessories, for normal operation.
