Shear Force and Bending Momentum Unit Deluxe

The Shear Force and Bending Momentum Unit, to show experimentally that in a cantilever beam subject to transverse loads.

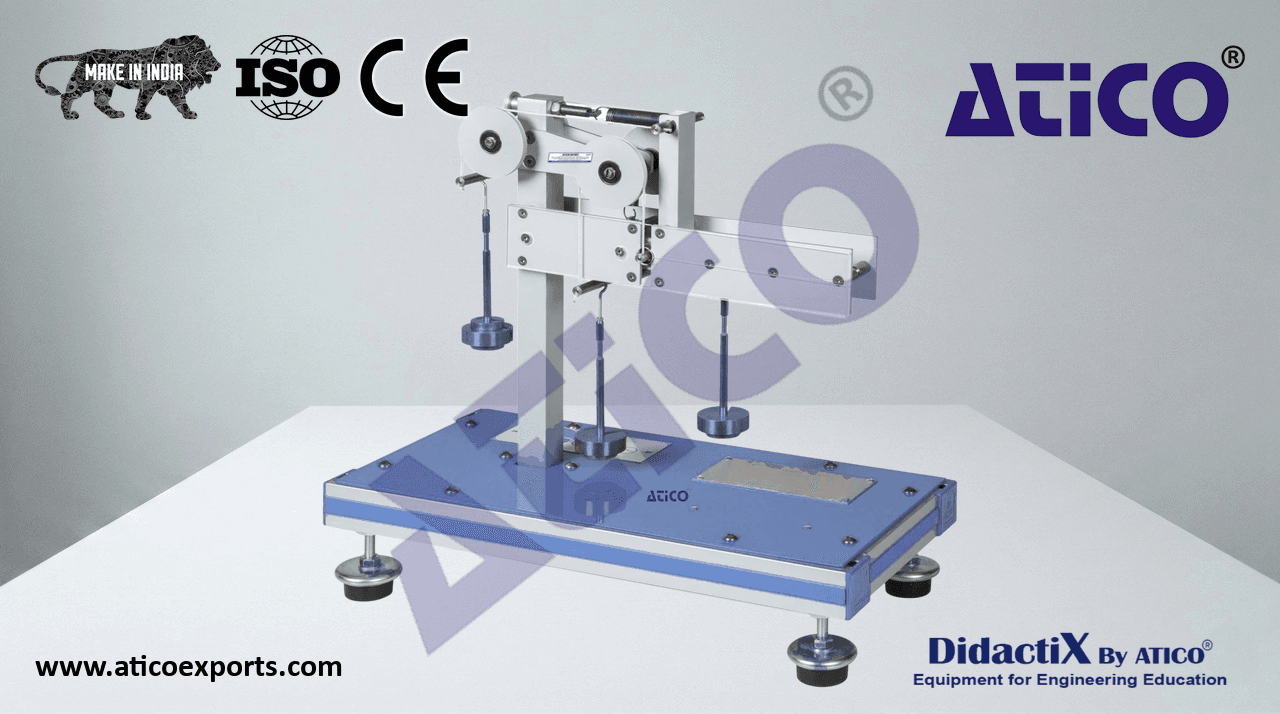

ATENG 12181 — Shear Force and Bending Momentum Unit

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12181” unit mainly consists of:
  Double-pulley system which allows us to achieve equilibrium of the bending moment
  on the beam.
  Double-pulley system which allows us to achieve equilibrium of the shear force on
  the beam.
  Different application points for the loads.
  A rule made in methacrylate that allows us to equilibrate the system with the absence
  of weights before beginning each experiment.
  Three hooks made of steel to hang weights. ATENG 12181 detail
