SHEAR FORCE IN A BEAM

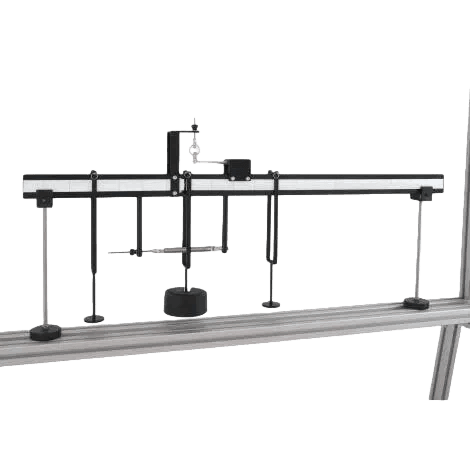

Each beam is simply supported on vertical supports that can be easily moved to create varying beam spans. At the 'cut' section, bearings in one beam straddle a vertical bearing track in the mating beam, ensuring free vertical movement for monitoring shear forces. Beam bending is permitted but counteracted by bearings and a tension spring supported horizontally beneath the beams. Learn about SHEAR FORCE IN A BEAM suppliers for optimal educational outcomes.. Special load hangers fit over the beams and can be accurately positioned using graduated scales. The force transducer output connects directly into a digital interface (sold separately). Learn about SHEAR FORCE IN A BEAM for educational labs for optimal educational outcomes..

• Beam lengths: 650 mm and 350 mm
• Beam cross section: 51 × 38 mm
• Graduations: 50 mm intervals
• Weights set: 1 × 2 N, 1 × 5 N, 2 × 10 N
