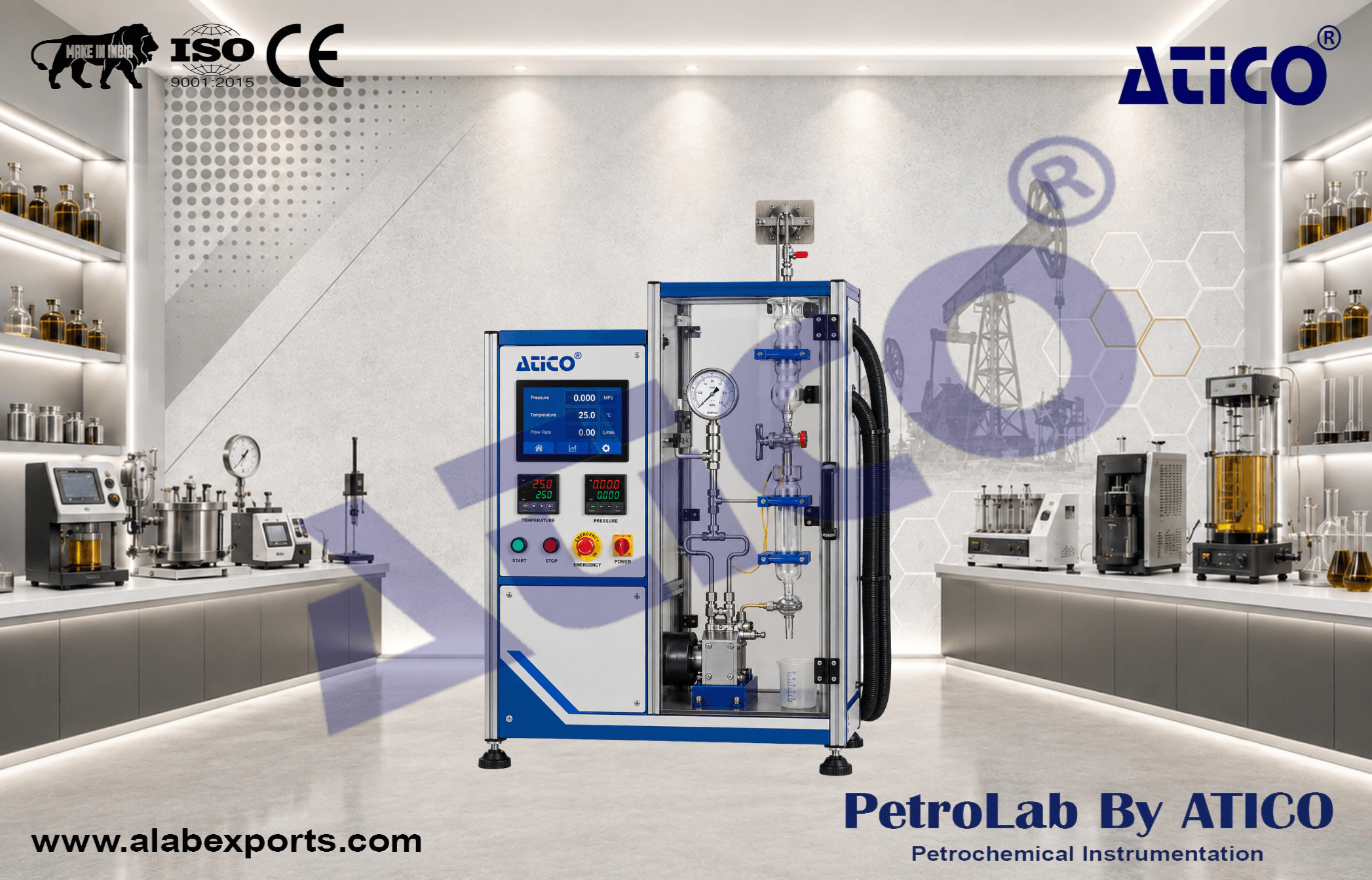

Shear Stability Tester for Oil Fuel and Petroleum Testing Instruments

The Diesel Injector Shear Stability Tester evaluates the shear stability of polymer-containing fluids by measuring viscosity loss at 100°C after exposure to a diesel injector apparatus. The test uses European diesel injector test equipment to simulate shear forces at the injector nozzle, allowing assessment of polymer degradation. The apparatus consists of a fluid reservoir, double-plunger pump driven by an electric motor, atomization chamber with a diesel injector spray nozzle, and fluid cooling vessel. The open-top reservoir has an approximate capacity of 250 mL, an inner diameter of 45 mm, and volume graduations. An internal fluid distributor reduces fluid channeling, while a thermometer positioned in the reservoir measures fluid temperature. The system includes a three-way stopcock and transparent plastic tubing connecting the reservoir outlet to the pump inlet. Manufactured by Atico Export with a focus on precision, durability, and reliable performance for lubricant and polymer shear stability testing applications.

Test Applications:

• Evaluation of shear stability in polymer-containing fluids
• Measurement of viscosity loss at 100°C
• Assessment of polymer degradation caused by shear at the injector nozzle
• Viscosity loss evaluation after 30 and 90 shearing cycles

Fluid Reservoir:

• Approximate capacity: 250 mL
• Inner diameter: 45 mm
• Open-top design with volume graduations
• Internal fluid distributor to reduce fluid channeling
• Acceptable distributor plate: 40 mm diameter watch glass with serrated edges
• Thermometer positioned centrally, with the bulb bottom 10–15 mm above the drain tube entrance
• Three-way cone-type stopcock with non-exchangeable solid plug
• Nominal stopcock bore: 8 mm
• Transparent plastic tubing connecting the stopcock to the pump inlet

Pump and Drive System:

• Double-plunger pump
• Electric motor drive
• Motor power: 1.5 kW
• Motor speed: 925 ± 25 RPM

Test Parameters:

• Dead volume: 20 ± 5 mL
• Injector breaking pressure: 175 bar
• Flow rate: 170 ± 5 mL/min
• Oil temperature: Ambient (20–25°C) to 30–35°C
• Test viscosity evaluation temperature: 100°C

Power Supply:

• 415 V, 50 Hz, three phase
• 1.5 HP

Standard Accessories:

• Thermometer
• Preset revolution counter
• Tool kit
• Operation and maintenance manual
