SHELL AND TUBE HEAT EXCHANGER

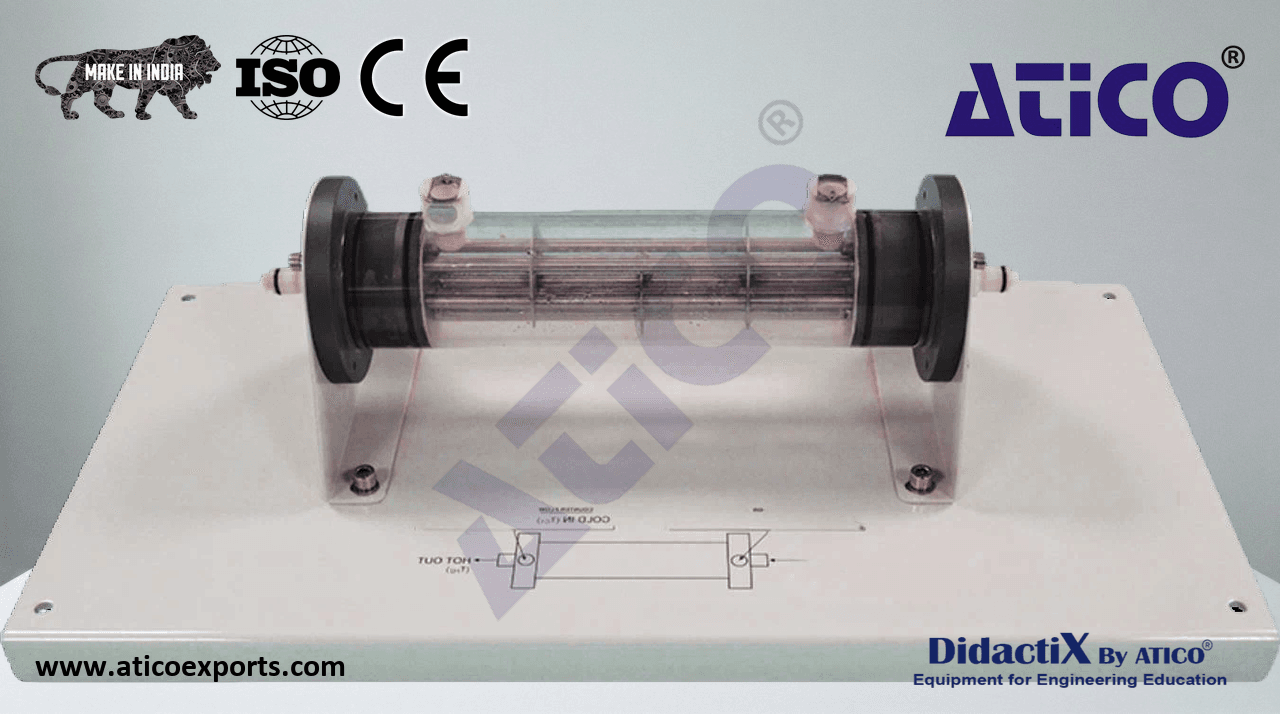

Shows how a compact shell and tube bundle heat exchanger works.

This heat exchanger is one of the most common type used in industry. This is because it is compact, but can work at higher pressures than other designs. It is a large tube (shell) which surrounds several smaller tubes (a bundle). Learn about SHELL AND TUBE HEAT EXCHANGER exporters for optimal educational outcomes.. One fluid passes through the shell, and the other fluid passes through the tube bundle, therefore transferring heat. Baffles around the bundle help to create a turbulent mixed flow. Learn about SHELL AND TUBE HEAT EXCHANGER specifications for optimal educational outcomes.. The Heat Exchanger Service Module provides hot and cold water to the heat exchanger and all the instruments needed to measure its performance. All fluid connections to the heat exchanger are self-sealing quick connectors - for safety and simplicity. Learn about Compact SHELL AND TUBE HEAT EXCHANGER for optimal educational outcomes.. The hot and cold fluid streams have different connectors to reduce errors. Connecting the heat exchanger takes less than one minute. Learn about SHELL AND TUBE HEAT EXCHANGER for educational labs for optimal educational outcomes.. The heat exchanger is on a bedplate that has a clear schematic diagram showing the connections.
