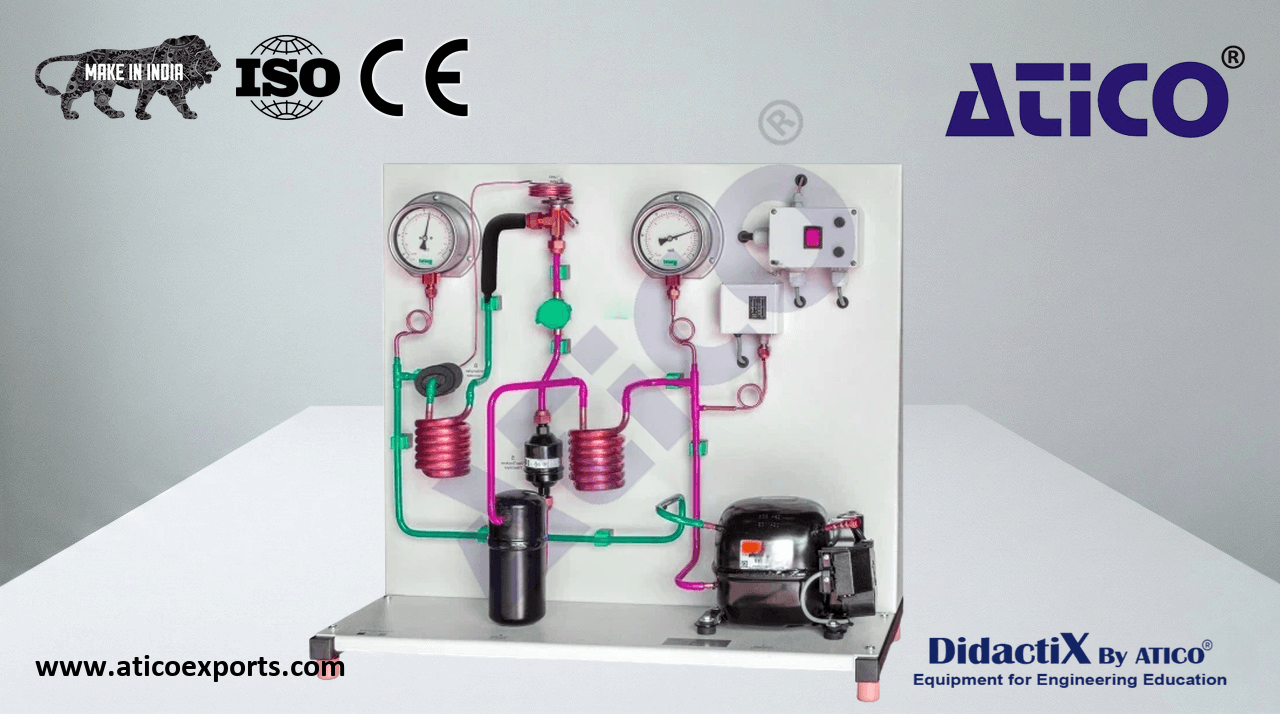

Simple compression refrigeration circuit Deluxe

A fundamental model designed to demonstrate the typical vapor-compression refrigeration cycle. It provides a clear visualization of how heat is removed from an environment through the evaporation of a refrigerant at low pressure.

• features a piston compressor, thermostatic expansion valve, evaporator, and condenser
• pipe-coil heat exchangers for condensation and evaporation
• dual manometers with temperature scales for high and low pressure sides
• sight glass to monitor the aggregate state of the refrigerant
• uses refrigerant R513A (GWP: 631)
