Simple Drives Assembly Unit

The Simple Drives Assembly Unit, allows the knowledge and learning of the fundamentals of the mechanical transmission technique, as well as the assembly, disassembly and experimentation with simple gears.

ATENG 12080 — Simple Drives Assembly Unit

Bench-top unit with adjustable legs.

Aluminum carrying case.

Anodized aluminum frame and panels made of painted steel.

Two axles for assembly simple transmissions systems.

• Simple belt:
• Timing belt pulleys:
  Number of teeth z= 30, 60.
• Simple chain:
• Chain cog wheels:
  Number of teeth z= 20, 30.

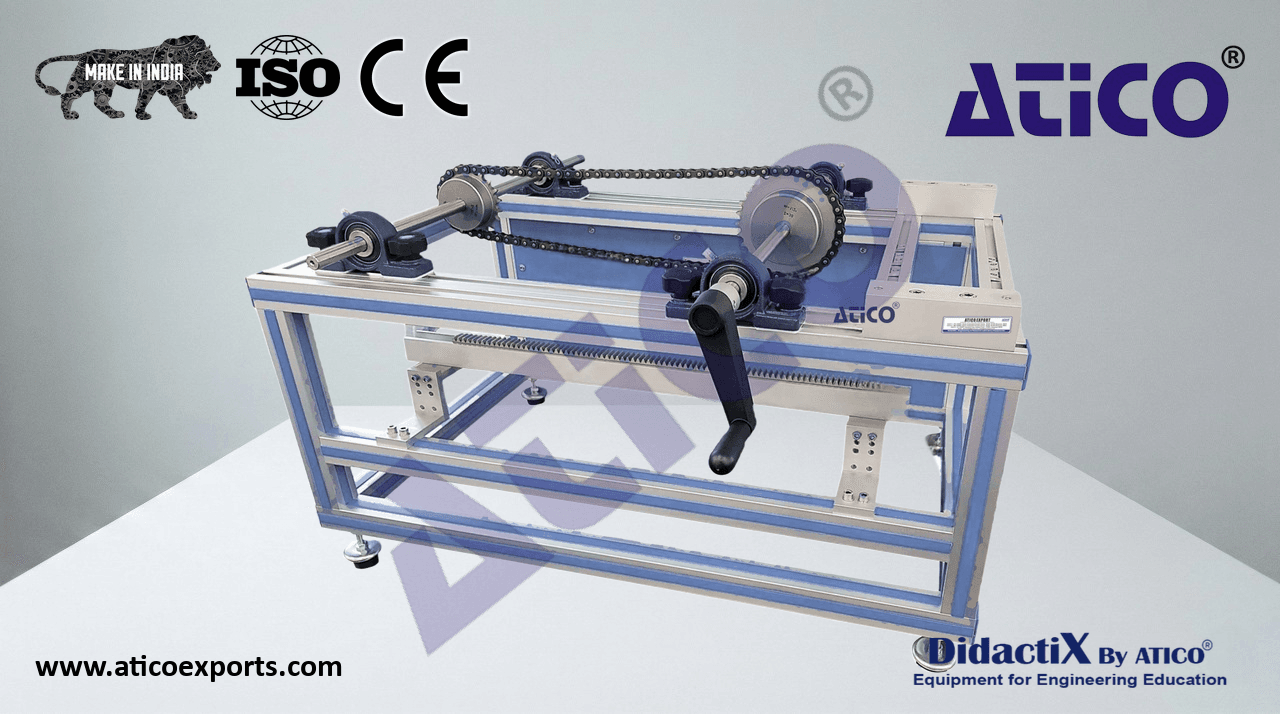

  ATENG 12080 detail
• Simple straight gears:
  Module m= 2; number of teeth z= 30, 60.
• Pair of bevel gears:
  Module m= 2; number of teeth z = 26.
  Angle between shafts 90°.
  Endless screw gear.
  Rack and pinion gear.
  Handles.
  Individual brackets.
  Tool set.
