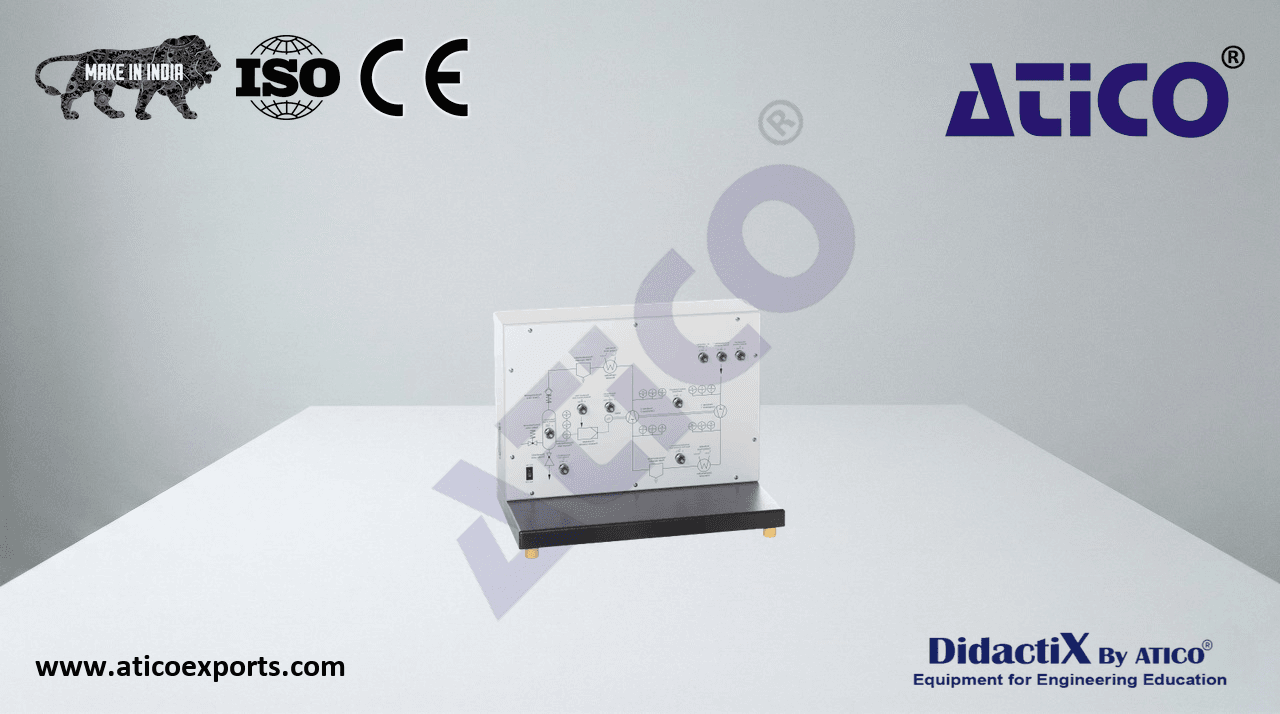

Simulation of a two-stage air compressor

When operating real compressor plants in industry, the specified process parameters must be adhered to. Certain operating conditions must be avoided in order to prevent damage to the plant.

• simulated operation of a two-stage compressor plant with intermediate and aftercooling
• change 9 system parameters via potentiometers
• software calculates: intake air volume, temperatures, pressures, pressure ratio stage 1+2, convective heat transfer during condensation, delivered air volume
• software for data acquisition via USB under Windows 11
