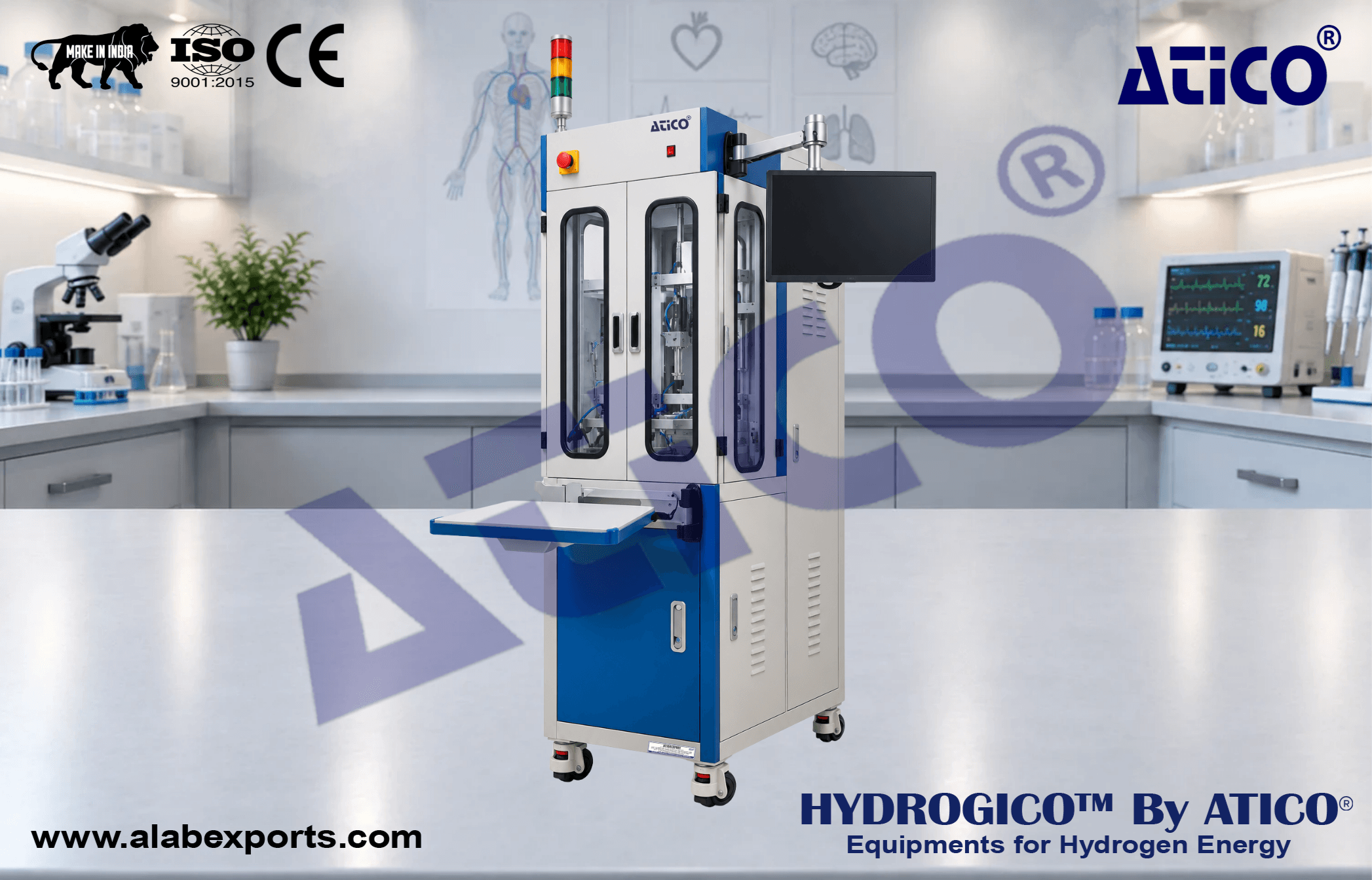

Single Cell Test Station For Hydrogen Energy Equipments

Manufactured by Atico Export under expert engineering guidance for reliable hydrogen energy research, testing, and technical training applications. Designed to provide precise control of gas flow, humidity, temperature, and pressure for fuel cell performance evaluation and laboratory testing.

• 600(W) X 950(D) X 2000(H) mm

Mass Flow Control:

• Turndown Ratio: 1000:1
• Gas Mixing and Multi-Range Control Available (Excluding Bench-Top Models)

Humidity Control:

• Gas Temperature Range: Room Temperature to 95°C
• Dew Point Range: Room Temperature to 95°C
• Dew Point Accuracy: ±1°C

Line Temperature Control:

• Flexible Line Heating

Cell Temperature Control:

• Air or Liquid Circulation System
• Heating and Cooling Functions

Exhaust Gas Cooling:

• Exhaust Gas Cooling and Trap System
• Condensation Water and Gas Separation

Back Pressure Control:

• Maximum Pressure: 3.5 bar
• Pressure Control Stability: ±2 kPa

Options:

• Cell Hardware: PEMFC, 5/10/25/50/100 cm²
• Single or Triple Serpentine Flow Pattern
• Integrated AC Impedance Measurement System
• Cell Voltage Monitoring: ±5 V per Channel
• Stack Discharge Feature: 1–2 kW Discharge Resistor Relay
