SINGLE EPICYCLIC GEAR TRAIN Deluxe

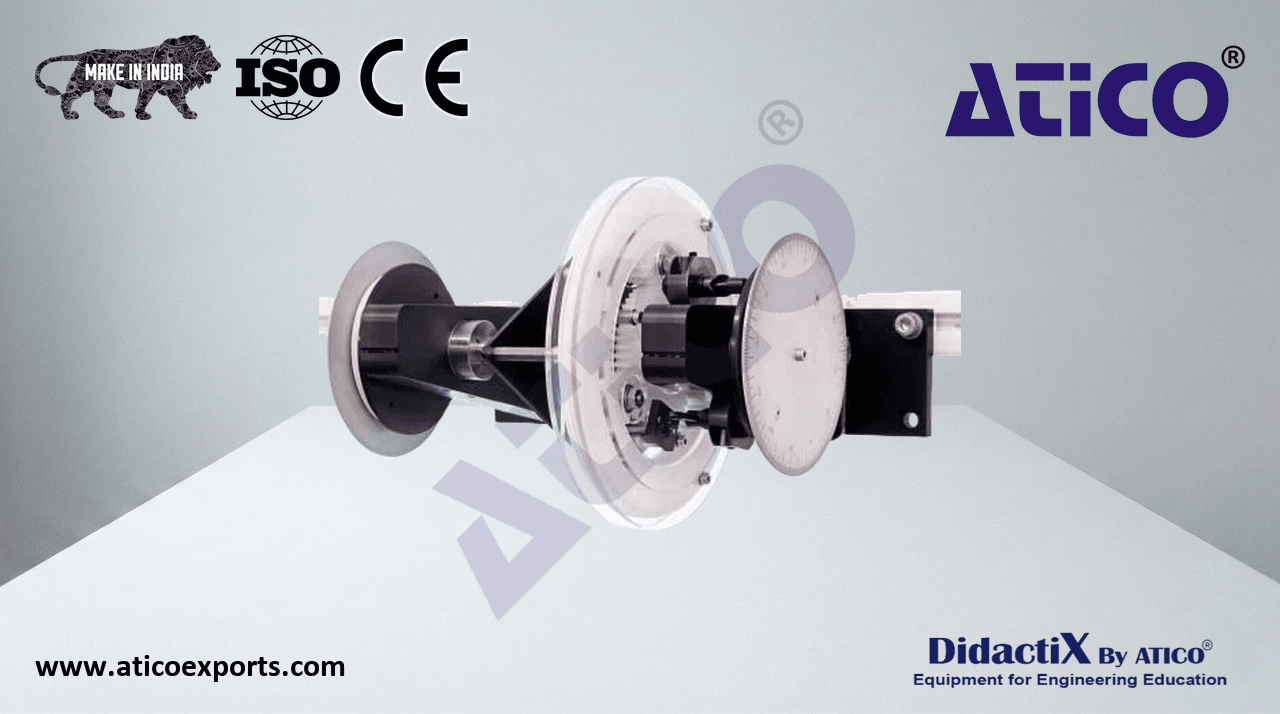

A wall-mounted single stage epicyclic gear train for laboratory demonstration of gear systems similar to those used in automotive applications. Comprises a sun gear, three planet gears, a planet linkage and a ring (annulus) gear — all rotating about the same axis. Pulleys fitted with protractors allow torque and velocity ratios to be determined. Learn about SINGLE EPICYCLIC GEAR TRAIN price for optimal educational outcomes.. Torques are applied by adding weights on cords wrapped around the pulleys. Locking pins hold different parts in position, enabling a wide range of gear ratio and output direction combinations. Learn about SINGLE EPICYCLIC GEAR TRAIN manufacturers for optimal educational outcomes.. All calibrated weights and load hangers are supplied.

• Sun Gear: 1 × 48T, 72 PCD, Mod 1
• Planet Gears: 3 × 16T, 24 PCD, Mod 1.5
• Annulus Gear: 1 × 80T, 120 PCD
• Protractors: 2 × 0–360°, 1° increments
• Pulleys: 2 × Ø87.5 mm
• Weights set: 4 × 0.1 N, 3 × 0.2 N, 1 × 1 N, 2 × 2 N, 2 × 5 N, 2 × 10 N, 1 × 20 N
• Load hangers: 3
