Single Phase Half Full Wave Uncontrolled Rectifier

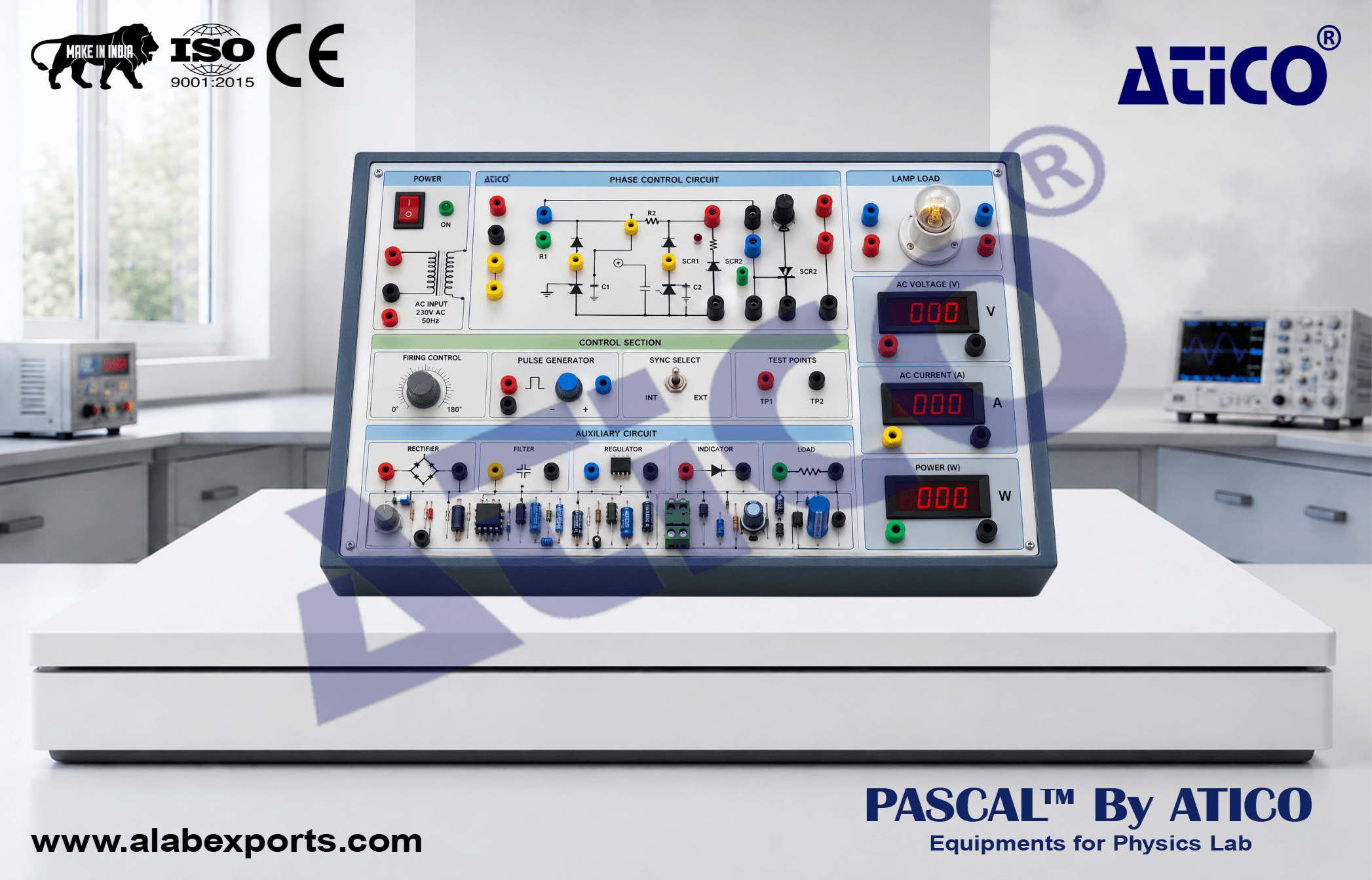

The Single Phase Half-Full Wave Uncontrolled Rectifier Trainer is designed for practical study of single-phase half-wave and full-wave uncontrolled rectification. It helps students understand diode rectification, AC-to-DC conversion, and resistive load characteristics through hands-on experiments. The trainer includes an isolated AC supply, digital meters, power diodes, and a rheostat for load adjustment. The unit is housed in a metal cabinet with a clearly printed insulated circuit board. Designed and manufactured by Atico Export to meet the practical demands of modern laboratories.

Power Supply:

• Isolated supply: 0–220 V / 110 V / 24 V AC at 2 A.
• Mains operated: 230 V, 50 Hz ±10%.

Digital Meters:

• Voltmeter: 2000 V AC.
• Voltmeter: 2000 V DC.
• Ammeter: 2 A DC.

Components Mounted on Panel:

• 4 power diodes.

Load:

• Rheostat as resistive load.

• Front panel with high-class insulated printed circuit board featuring clearly printed circuits and symbols.
• Instruction manual.
• 4 mm patch cords.
• High-voltage test points with 4 mm safety sockets.
• Housed in a metal cabinet.
• Trainer size: 15 × 11 inches.
