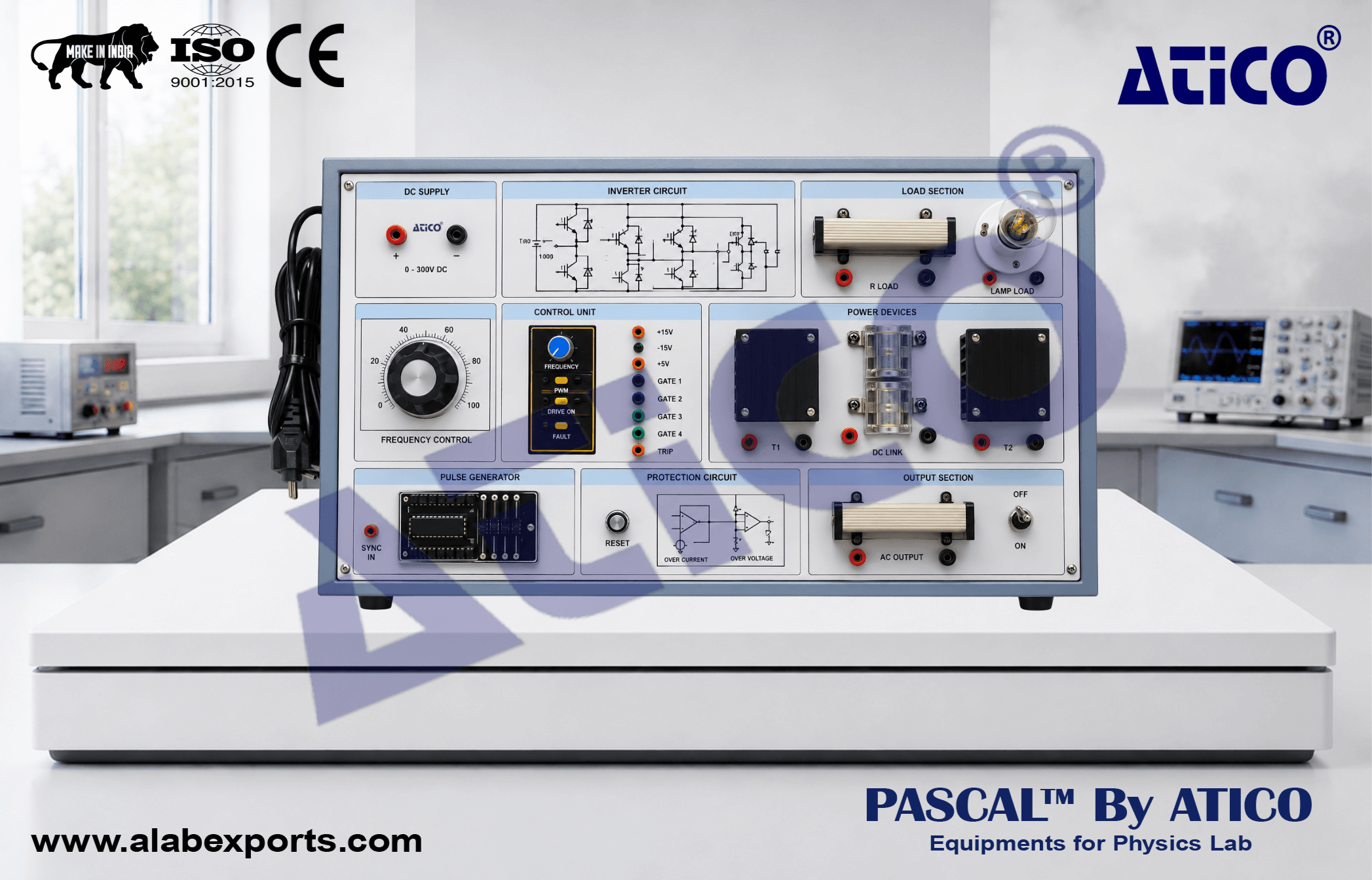

Single Phase Series Inverter Using SCR

The Single Phase Series Inverter Using SCR is designed for practical study of single-phase inverter operation and SCR-based switching techniques. It provides a suitable platform for understanding DC-to-AC conversion, SCR triggering, pulse control, and inverter circuit operation. The trainer includes a 10:1 potential divider for CRO measurements, overload and short-circuit protection, a 60 W bulb load, an SCR firing circuit, and potentiometer-based pulse control. The unit is housed in a metal cabinet with a clearly printed insulated circuit board. Designed and manufactured by Atico Export to meet the practical demands of modern laboratories.

Power Supply:

• +24 V / 2 A.
• Mains operated: 230 V, 50 Hz ±10%.

Components Mounted on Panel:

• 2 SCRs.
• UJT triggering circuit for pulse control.
• Pulse control through potentiometer.

Load:

• 60 W bulb.

• 10:1 potential divider for CRO.
• Protective cover.
• 60 W bulb provided as load.
• Fuse protection against short-circuit conditions.
• Overload protection through circuit breaker.
• Front panel with high-class insulated printed circuit board featuring clearly printed circuits and symbols.
• Instruction manual.
• 4 mm patch cords.
• High-voltage test points with 4 mm safety sockets.
• Housed in a metal cabinet.
• Trainer size: 12 × 10 inches.
