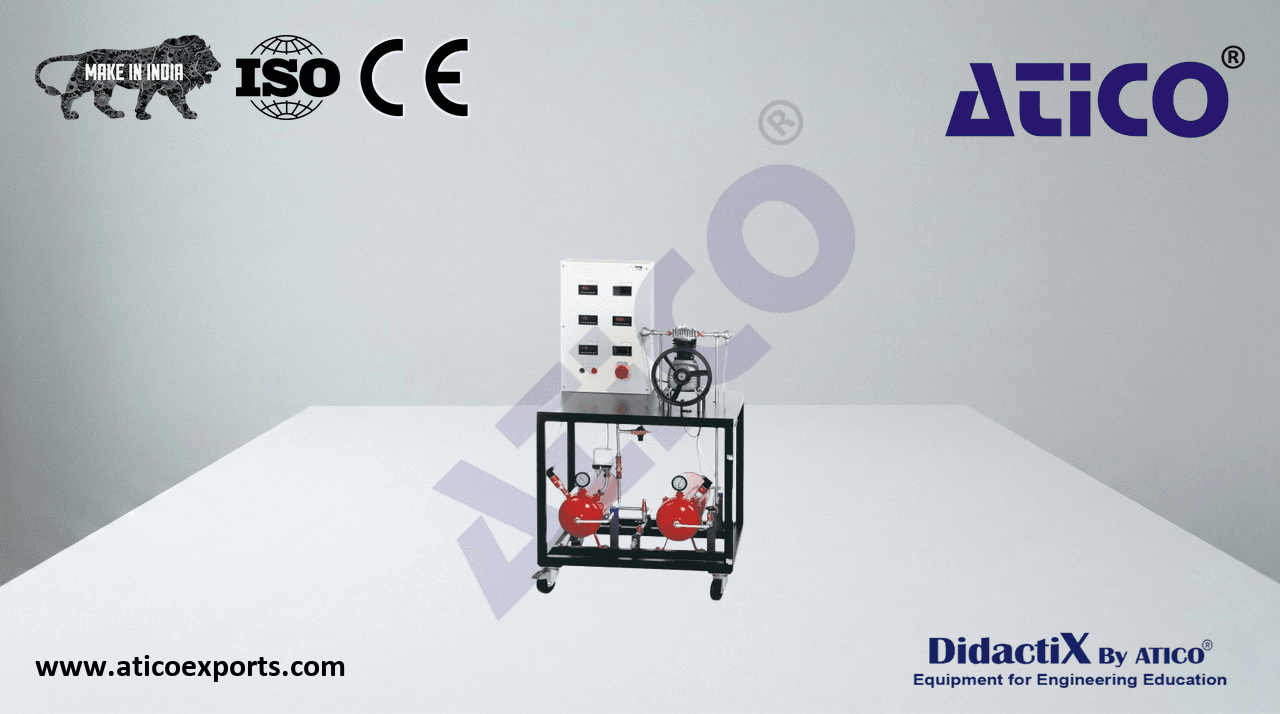

Single-stage piston compressor

The generation of compressed air for industrial and commercial purposes in areas where compressed air is used as a source of energy requires what are known as compressed air generation plants. A central part of these systems is the compressor. It is responsible for generating a pressure increase of the air by means of mechanical energy. Learn about Single-stage piston compressor specifications for optimal educational outcomes.. Compressed air generation plants are used to power machines in the mining industry, for pneumatic control systems in assembly facilities or as tyre inflation units at petrol stations.

• investigation of a driven machine for compressed air generation
• single-stage piston compressor with one cylinder
• drive and speed adjustment via universal drive and brake unit
• intake vessel with measuring nozzle for determination of the suction volumetric flow rate
• intake vessel and pressure vessel, both with pressure sensor and additional manometer
• safety valve and pressure switch with solenoid valve for limiting the pressure
• blow-off valve with silencer for setting a steady flow operating mode
• pressure and temperature sensors in front of and behind the compressor
• digital display for air flow rate, temperatures, pressures, differential pressures and compressor speed
• software for data acquisition via USB under Windows 11
