Slotted Link Mechanism Deluxe

The Slotted Link Mechanism, is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion.

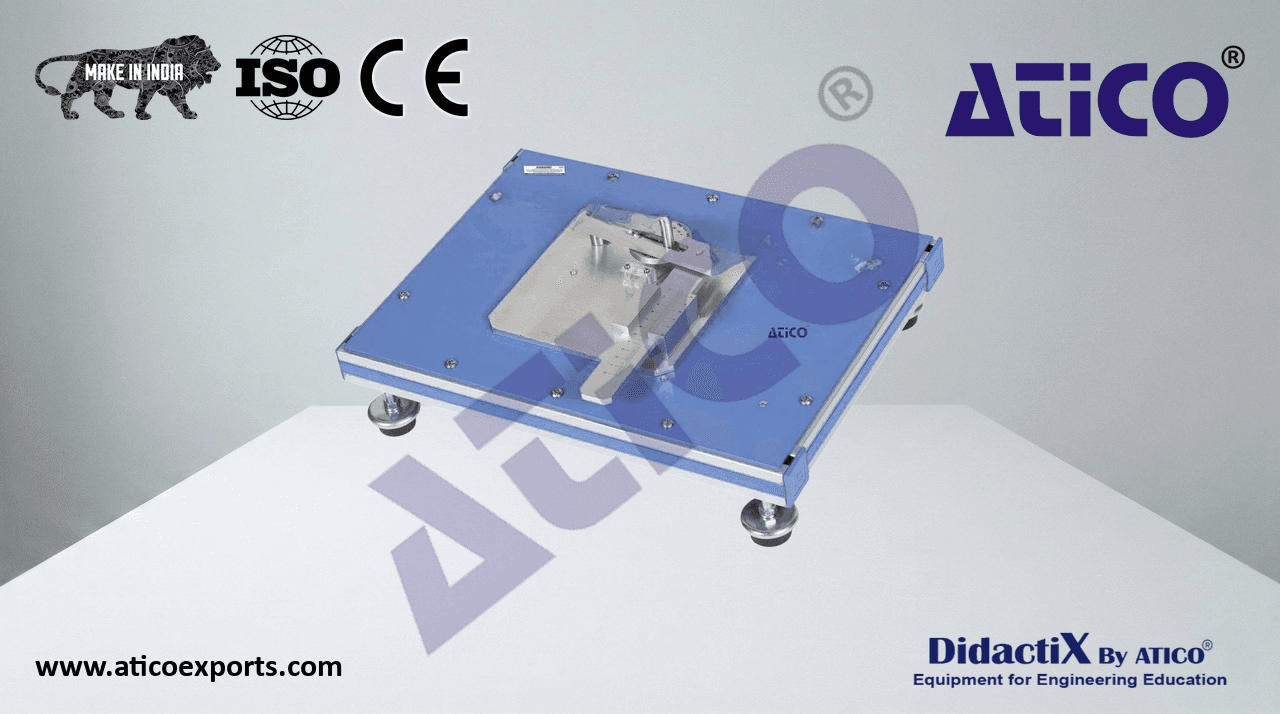

ATENG 12061 — Slotted Link Mechanism

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12061” unit mainly consists of:
  Rotary element (crank) with a graduated disc and an indicator to read the angle.
  Rigid bar (connecting rod) with a millimeter scale to measure the linear motion.
