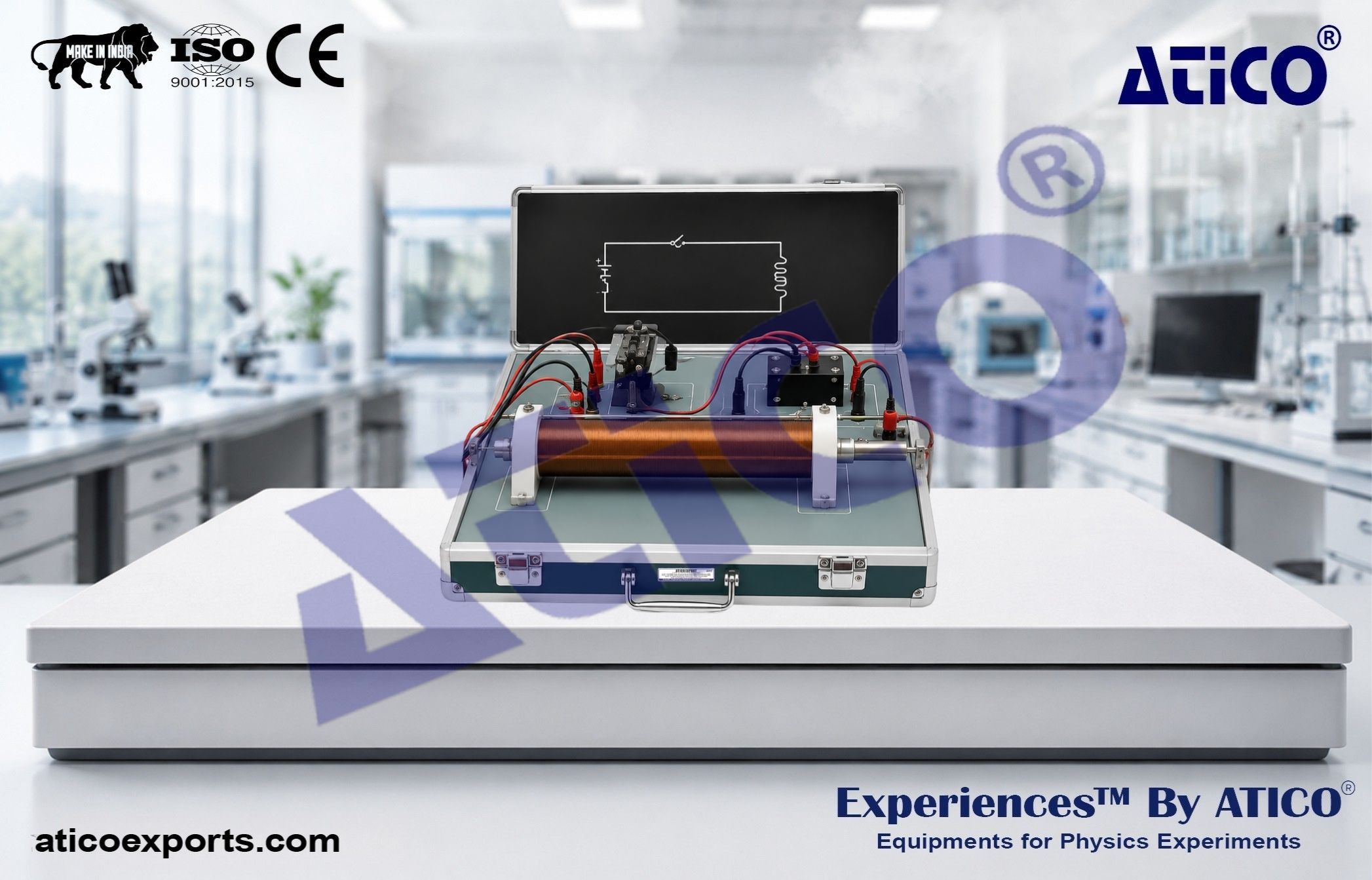

Solenoid Magnetic Field Measurement Apparatus

Experiments :

• Measurement of the sensitivity of a Hall sensor.

Experiments :

• Verification of the proportional relationship between Hall sensor output voltage and magnetic field intensity inside a solenoid.

Experiments :

• Investigation of the relationship between magnetic field intensity and position within a solenoid.

Experiments :

• Measurement of magnetic field intensity at the edges of a solenoid.

Experiments :

• Application of compensation techniques in magnetic field measurements.

Experiments :

• Optional measurement of the horizontal component of the Earth's magnetic field.

Integrated Hall Sensor :

• Magnetic Field Measurement Range: –67 mT to +67 mT.
• Sensitivity: 31.3 ± 1.3 V/T.

Solenoid :

• Length: 260 mm.
• Inner Diameter: 25 mm.
• Outer Diameter: 45 mm.
• Construction: 10-layer winding.
• Number of Turns: 3000 ± 20.
• Uniform Magnetic Field Region: Greater than 100 mm at the center.

Digital Constant Current Source :

• Output Range: 0–0.5 A.

Digital Current Meter :

• 3.5-digit display.
• Measuring Range: 0–0.5 A.
• Resolution: 1 mA.

Digital Voltmeter :

• 4.5-digit display.
• Range: 0–20 V, Resolution: 1 mV.
• Range: 0–2 V, Resolution: 0.1 mV.

Manufactured By :

• Atico Export India for advanced Physics Lab Experiments.
