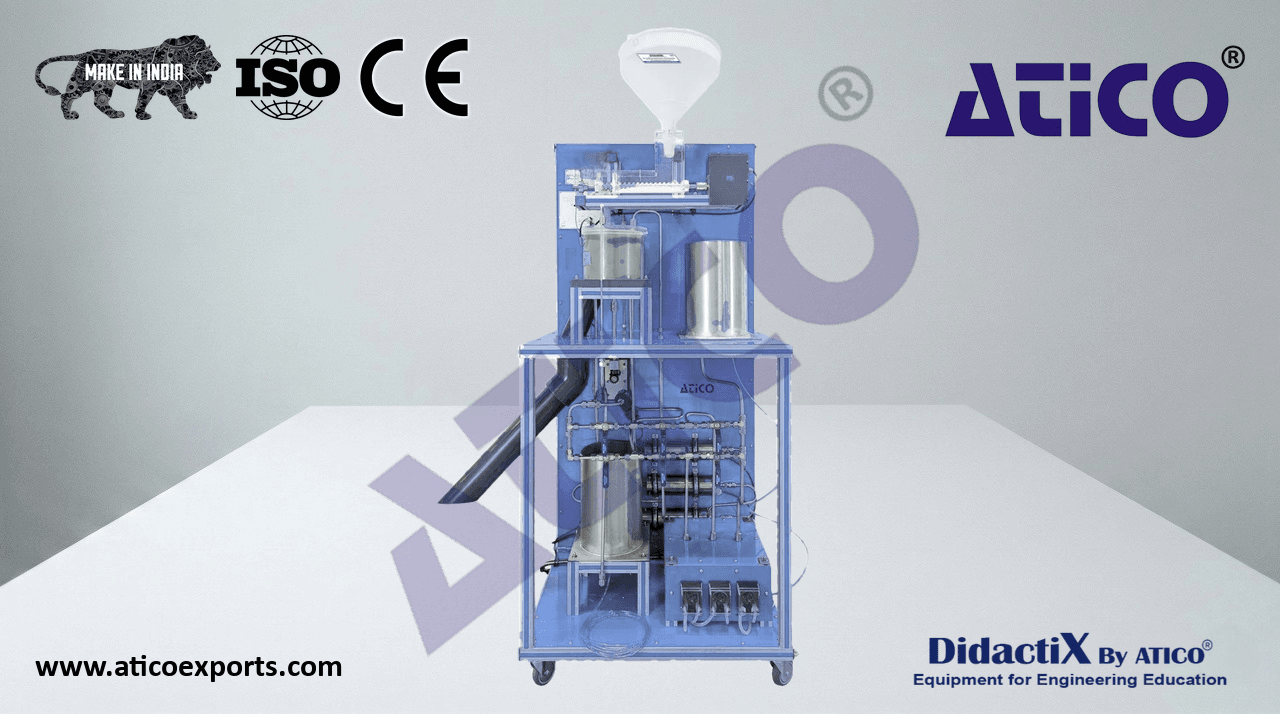

ATENG 10817 — Solid-Liquid Extraction Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Feed liquid vessel, capacity: 9 l.
- Product liquid vessel, capacity: 9 l.
Feed hopper with feed endless screw for solids.
Motor for feed endless screw.
Main rotary extraction vessel with eight cells of extraction.
Motor for the rotation of the main extraction vessel.
ATENG 10817 detail
Variable rotation speed.
Three sprinklers.
Solid products exit.
- Conductivity meter, and four conductivity cells:
- Three conductivity scales:
200 µS → 0.1 – 199.9 µS.
2 mS → 0.2 – 1.999 mS.
20 mS → 2 – 19.99 mS.
- µS: microSiemens; mS: miliSiemens.
Four temperature sensors, “J” type.
- Three heating resistances, range: 360 W each one.
- Three safety thermostats: 70 °C.
- Three peristaltic pumps, with speed regulator: 12.7 l/h.
Three decanting filters (in-line strainer).
Circulation valves to change the circuit configuration.
- Solvent temperatures: ambient to 50 °C.
- Electronic console:
Temperature sensors connections.
Digital display for temperature sensors.
Selector for temperature sensors.
Three controllers for the three heating elements.
Pumps speed controller.
- Touch screen for controlling:
Number of revolutions of the feed motor.
Number of cycles.
Cycle time.
Main switch.
Cables and accessories, for normal operation.
