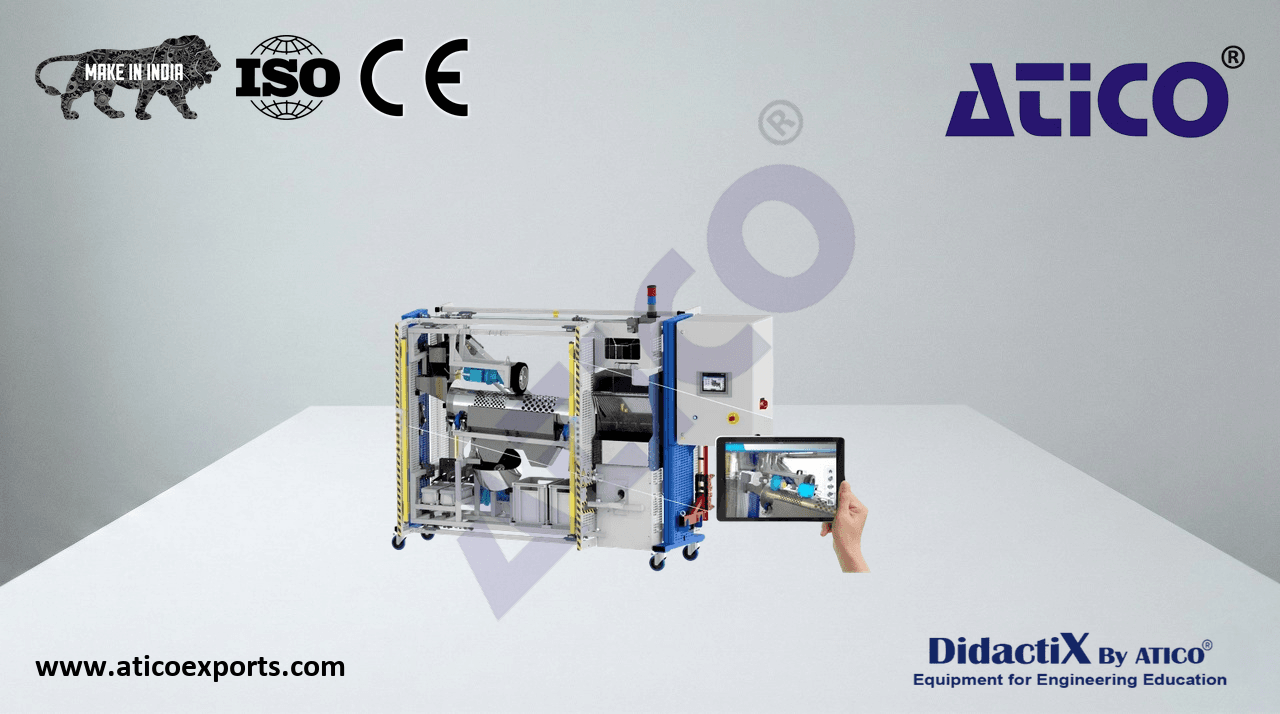

Sorting plant Deluxe

Preventive maintenance is an indispensable part of Industry 4. 0 and helps to avoid unplanned production downtimes. The laboratory-scale MT 174 sorting plant comprises a separation process that serves as an application example for various maintenance tasks. Learn about Sorting plant for educational labs for optimal educational outcomes.. The plant is equipped with standard industrial components.

• laboratory scale sorting plant with standard industrial components
• real application example for preventive maintenance, time- and sensor-controlled
• augmented reality: visualisation of maintenance work in individual steps, display of exploded views and data sheets, safety technology
• control of the experimental plant using a PLC, operated by touch screen
• crane for disassembly and assembly of the gear units, can be used in 3 positions
• signal lamp to indicate machine status
• continuous dosing of the mixture by dosing hopper with conveyor belt, drive via spur gear
• class. process: separation into 3 size fractions with drum screen and level sensor, drive via planetary gear
• rotary storage table to separate the particles for colour sorting, drive via spur and worm gear
• sorting process: colour sorting of the fine fraction into 3 colour fractions
• smart colour sensor with IO-Link interface, configuration via PLC
• multimedia teaching material for all three gear units: PDF, CAD/STEP files, videos
• online access to the Media Center
