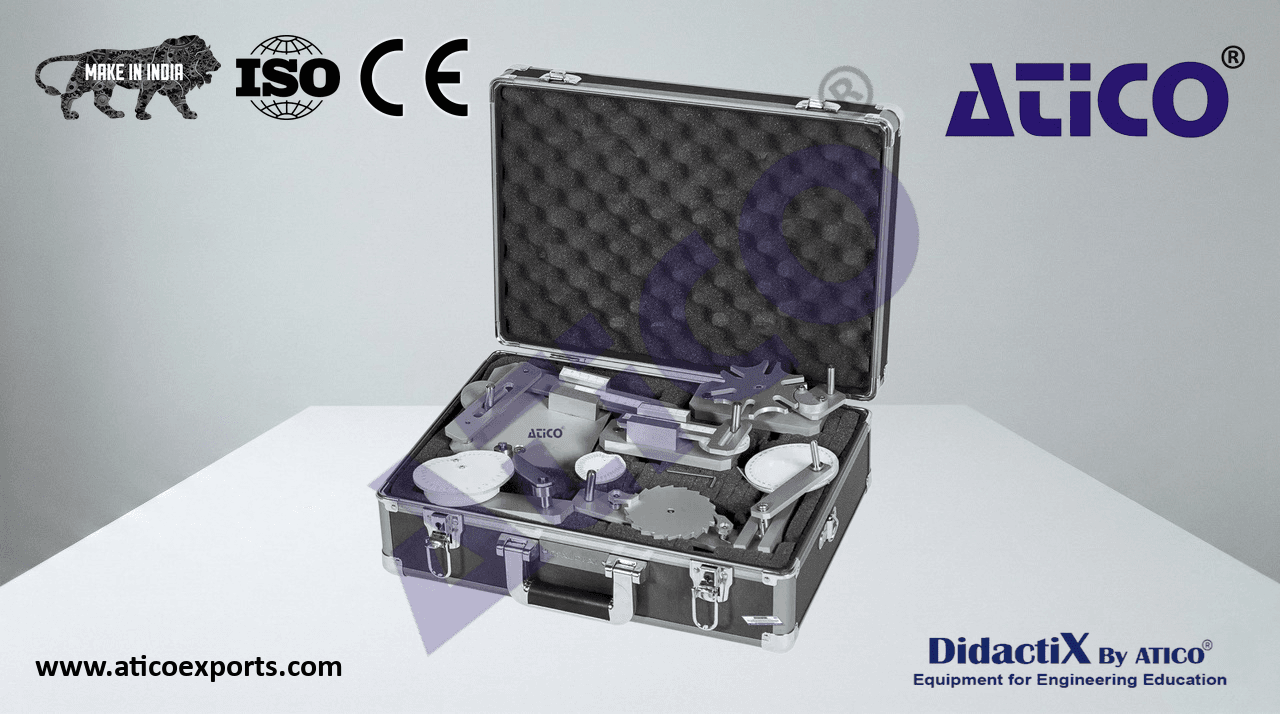

Special Mechanisms Experiments Deluxe

This module considers various mechanisms frequently used in industrial processes, without them some operations would not be possible with the same efficiency. Here these mechanisms are shown and their function analyzed.

ATENG 12056 — Special Mechanisms Experiments

ATENG 12047. Panel and Common Elements Case for ATENG 12046.

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

• The holes on the base panel are accurately spaced at 25 mm centres.
  Supports, brackets and elements needed to work with any of the modules in the base
  panel.
  The simple pendulum.
  Pivot screw.
  Adjustable hooks.
• Set of weights:
  10 weights of 0.01 N.
  4 weights of 0.05 N.
  10 weights of 0.1 N.
  2 weights of 0.5 N.
  4 weights of 1 N.
  2 weights of 2 N.
  1 weight of 5 N.

ATENG 12047

Weight hooks.

Pulleys.

Screws and Knurled nuts.

Large ext. spring and small ext. spring.

Dynamometer.

Spare rope.
